Specifications
Hot electric forklift truck,1.5 ton forkliftRated load:1500 kg
Load Center Distance:500 mm
Max. Lifting Height:6000 mm

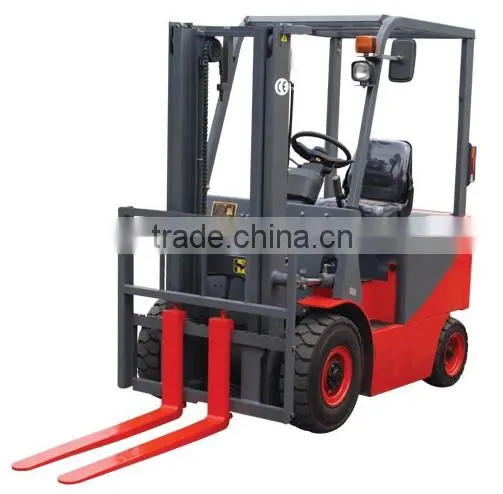

Hot electric forklift truck, 1.5 ton forklift
The CPD15 electric forklift truck employs the scientific ergonomic design, has effectively expanded the operating space, and reduces the operator’s fatigue to the maximum. The electric control system adopts the internationally renowned controllers, which have multiple functions, such as failure warning, regenerative braking, stepless speed regulation, etc. The overall layout is clear-cut and reasonable. All the hydraulic pipelines and wires are fixed by pipe clamps, and their arrangement is orderly and pleasing to the eye. The repair space is large and the disassembling work is more convenient.
Rated load |
1500 kg |
Load Center Distance |
500 mm |
Max. Lifting Height |
6000 mm |
Gantry Tilt Angle (Front / Rear) |
6°/ 12 ° |
Min. Turning Radius |
1950 mm |
Min. Ground Clearance (Beneath The Driving Axle) |
105 mm |
Max. Traveling Speed (With Empty Load) |
13 km/h |
Max. Gradeability (Full Load) |
15% |
Max. Lifting Speed (Full Load) |
300 mm/s |
Dead Weight |
2950 kg |
Accumulator |
|
Voltage |
48 V |
Capacity |
550 Ah |
Motor Powe |
|
Traveling Motor |
5.2 kw |
Working motor |
8.2 kw |
Overall dimensions |
|
Length×Width×Height |
3030X1070X2130 mm |
Hot electric forklift truck, 1.5 ton forklift
