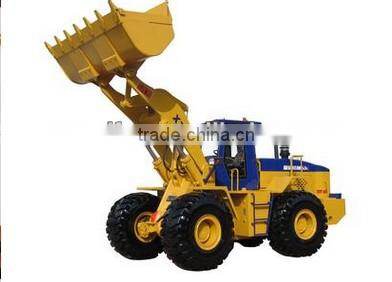

Help CenterDongfeng XZ667 Wheel Loader With Rated Load 6.0ton From China for Sale
Related Products
-
BNM-80 Mobile Concrete Mixing PlantNegotiableMOQ: 1 Unit -
BNM-80 Mobile Concrete Batching Plant for SaleNegotiableMOQ: 1 Unit
-
BNM-80 Mobile Concrete Batching Plant, Ready Mixed Concrete Batching PlantNegotiableMOQ: 1 Unit
-
BNM-80 Concrete Batching Plant on SaleNegotiableMOQ: 1 Unit
-
BNM-80 Concrete Batching Plant on Sale, Dry Mix Concrete Batch PlantNegotiableMOQ: 1 Unit
Specifications
XA667 wheel loader from Dongfeng:1. Equipped with Style diesel engine WD10G240E1
2. Flexible- operated transmission
Specification:
Standard bucket capacity: 3.3m3
Rated load: 6.0t
Operating weight: 20.0±0.5t
Engine power: 175KW
- Equipped with Style diesel engine WD10G240E11, which is of excellent performance and reliability
2. Diesel engine-torque converter-transmission. match rationally, powerful traction force in mixed working conditions.
3. Flexible- operated transmission, easy and low-effort control.
4. Single stage,4 elements(double turbine) converter enable continuously variable transmission, make it stable to start and easy to control.
5. Power shift transmission, implement hydraulic system. easy and low-effort control.
6. Fully hydraulic flow amplified steering system, easy and low-effort reliability.
7. Z-bar loader linkage is capable of high breakout force and high dump height.
8. All-wheel, dual-line, disc-caliper-type brakes, rear mounted air reservoirs, ensure safety and reliability.

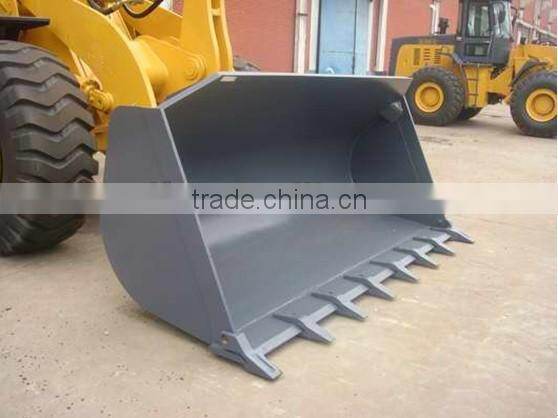

9. Quenched integral cutting edge bucket, more strength, better wearing resistance and long life.
10. New sound insulated air pressurization cab with optional air conditioner provides excellent visibility and operator's station.
11. Integral openable hood, make it easy to maintain engine
12. Optional various implements.
Dimensions | |||
Model |
XZ667 |
||
Length (Bucket on the ground) |
mm |
8450±30 |
|
Height |
mm |
3480±30 |
|
Width |
mm |
3030±30 |
|
Max. dumping height |
mm |
3170±20 |
|
Dumping reach |
mm |
1270±20 |
|
Performance |
|||
Operating weight |
t |
20.0±0.5 |
|
Bucket capacity |
M3 |
3.3 |
|
Rated load |
t |
6.0 |
|
Wheel base |
mm |
3350±15 |
|
Wheel track |
mm |
2285±15 |
|
Min. ground clearance |
mm |
450±20 |
|
Engine model |
Styre WD615G.240 |
||
Engine Rated power |
KW |
175 |
|
Engine Max. torque |
NM |
920 |
|
Engine Displacement |
L |
9.726 |
|
Climbing gradient |
° |
≥28° |
|
Breakout force |
KN |
>180 |
|
Traction force |
KN |
>155 |
|
No. of shift (forward/reverse) |
4/4 |
||
Traveling speed |
Forward gear 1 |
km/h |
8.5 |
Forward gear 2 |
km/h |
16.5 |
|
Forward gear 3 |
km/h |
25.0 |
|
Forward gear 4 |
km/h |
42.0 |
|
Reverse gear 1 |
km/h |
8.5 |
|
Reverse gear 2 |
km/h |
16.5 |
|
Reverse gear 3 |
km/h |
25.0 |
|
Reverse gear 4 |
km/h |
42.0 |
|
Lifting time |
S |
6.3 |
|
Hydraulic cycle time |
S |
11.8 |
|
Tire |
26.5-25 |
||
