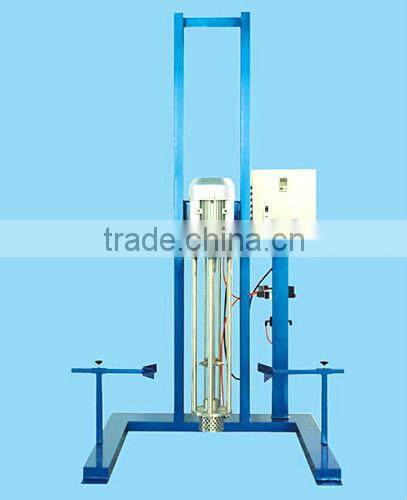

FLK batch movable high shear mixer/homogenizer
Advantages:
High shear Mixer for sanitary and industrial use Various High shear Mixer head available
Workmethod: Shear mixer in high speed
Product Name:
High shear Mixer (Batch type)
Working Method:
High shear Mixer (Batch type) is suitable for mixing, Dispersing, Shearing and Homogenizing all kinds of viscous liquid and pastes. High shear Mixer could be applied in Food, Beverage, Chemical, Pharmaceutical, Paint& ink industry etc. The mixer consists of a centrally located shaft, connected to a flanged type motor mounted on a steel housing. We have four types of different High shear Mixer stators to suit different working condition.
Features of High shear Mixer
• All wetted parts are grade 304 or 316 Stainless steel
• Mechanical Seal for Sanitary Operation
• Quick opening for easy cleaning
•Hygienic Design.
•Explosion-proof ABB Motor 3 Phase
Main model & specifications:
Model | FML5.5 /7.5 | FML11 | FML11 | FML15 Or FML18.5 | FML 22 | FML 30 | FML 55/75 | FML 90 | |
motor power (kw) | 5.5or 7.5 | 9/11 or 11 | 9/11 or 11 | 15 or 18.5 | 22 or 18.5/22 | 32/45 or 45 | 55 or 75 | 90. | |
Dispersing.shaft Rotating.speed (rpm) | 0-1200 1065/2130 | 0-1200 1065/2130 | 0-1200 1065/2130 |
0-1200 | 0-1200 800/1200 | 0-1200 800/1200
| 0-1200 800/1200
|
1000 or adjustable | |
raise-fall process (mm) |
900 |
900 |
1100 |
1100 |
1100 |
1450 |
1600 |
1800 | |
center distance (mm) |
900 |
950 |
1100 |
1100 |
1100 |
1465 |
1500 |
1600 | |
Weight (kg) |
700 |
800 |
1200 |
1200 |
1200 |
2500 |
3500 |
4000 | |
Shape dimension | Length(mm) |
1800 |
1800 |
2200 |
2200 |
2200 |
2700 |
2800 |
3000 |
Width(mm) |
750 |
780 |
900 |
900 |
900 |
1100 |
1100 |
1200 | |
Height(mm) |
1820 |
1820 |
2400 |
2400 |
2400 |
2800 |
3200 |
3400 | |
After Sales Service
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.
Payment terms:
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.
Package:
Standard wooden Case Packing
Shipment terms:
We usually take FOB, but we can also accept EXW,CIF,CNF.
