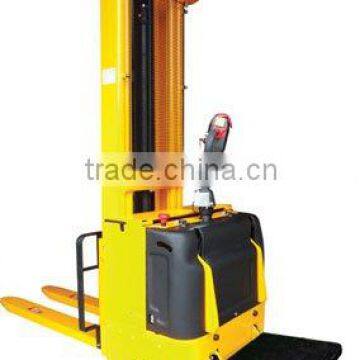

1.5ton 3.5m cheap high quality Electric stacker
Our electric stacker has passed the CE certification and is mainly applied in petroleum, chemical engineering, pharmacy, light textile, military engineering, painting, coal, port, railroad, warehouse, bridge back, etc. for load and unload, pile and move.
1. This electric reach stacker adopts double mast and chain driving technology.
2. Electric reach stacker controlling system is programmable based on the imported advanced foreign technology.
3 .Stacker Moving type: electric driving and climbing to a certain gradient.
4. Electric reach stacker rising height and load can be changed as required by the customers.
5. There are complete safety equipment and their technical performance has reached the advanced level as the international product.
Main Parameters
Specification |
Model |
|
CDD15F |
||||||||
Driving mode |
|
Battery |
|||||||||
Drving type |
|
Stand-on |
|||||||||
Load capacity Q |
kg |
2500 |
|||||||||
Load center C |
mm |
600 |
|||||||||
Size |
Overall length L1 |
mm |
1920 |
||||||||
Overall width W |
mm |
940 |
|||||||||
Lowered mast height H1 |
mm |
2125 |
1800 |
2025 |
2125 |
2225 |
|||||
Fork size L×b×m |
mm |
1150×160×56 |
|||||||||
Outsize fork width D |
mm |
540/680 |
|||||||||
Min.ground clearance x |
mm |
29 |
|||||||||
Wheelbase L0 |
mm |
1270 |
|||||||||
Wheels |
Material |
|
PU |
||||||||
Driving wheel size |
mm |
φ250×80 |
|||||||||
Front wheel size |
mm |
φ78×70 |
|||||||||
Balance wheel size |
mm |
φ150×75 |
|||||||||
Performance |
Min.turning radius Wa |
mm |
1505 |
||||||||
Aisle width Ast |
mm |
≥2500 |
|||||||||
Lifting height H |
mm |
1600 |
2450 |
2900 |
3100 |
3300 |
|||||
Max.mast height H2 |
mm |
2250 |
2450 |
2900 |
3100 |
3300 |
|||||
Min fork height H3 |
mm |
90 |
|||||||||
Driving speed(laden/unladen) |
km/h |
4.0/5.5 |
|||||||||
Lifting speed(laden/unlden) |
mm/s |
90/160 |
|||||||||
Lowering speed(laden/unladen) |
mm/s |
95/120 |
|||||||||
Electric Device |
Brake |
|
electromagnetic |
||||||||
Driving motor |
Kw |
1.2 |
|||||||||
Lifting motor |
Kw |
2.2 |
|||||||||
Battery capacity/voltage |
Ah/V |
200/24(Free maintance) |
|||||||||
Batttery weight |
kg |
180 |
|||||||||
Other |
Net weight(without battery) |
kg |
620 |
680 |
705 |
715 |
725 |
||||
Olift Equipment Co.,Ltd. provides wide selection of products such as forklift trucks, pallet trucks and stackers, scissor lifts, moving tools, platform lifting and more.
The workforce engages in intense research to develop functional, easy-to-use products that can provide the clients total value for their investment. The company emphasizes on total customer satisfaction, thus all equipment are manufactured to international standard and with impeccable quality.
In addition, it has in-house technical capabilities to design and manufacture the equipment. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.
1. We can customize electric stacker as per your requirement.
2. The most suitable electric stacker will be recommended to you once we got your requirement.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Maintenance video will be given to you for repairing once the electric stacker break down.
6. Parts of electric stacker can be sent to you by express within 7 days if needed.
1. How can customer buy parts once the electric stacker break down?
The electric stacker adopts most of the common parts of hardware. You can buy the parts in your local hardware market or pallet truck parts shop.
2. How can customer repair the electric stacker?
One of the great advantage of electric stacker is with very low failure rate. Even it breaks down, we can guide to repair it by video and repair instruction.
3. What is the battery life span?
The lift span of the battery can be 4 years if you maintain it as per our maintanance manual.
4. How long is the quality guarantee of the electric stacker?
One year quality guarantee including battery. Wheels are not included. If it breaks down within one year, we can send the parts free of charge to you.
5. How can we charge the battery?
It is equipped with a battery charger. You can connect the battery to the charger and connect the charger to the AC power.
