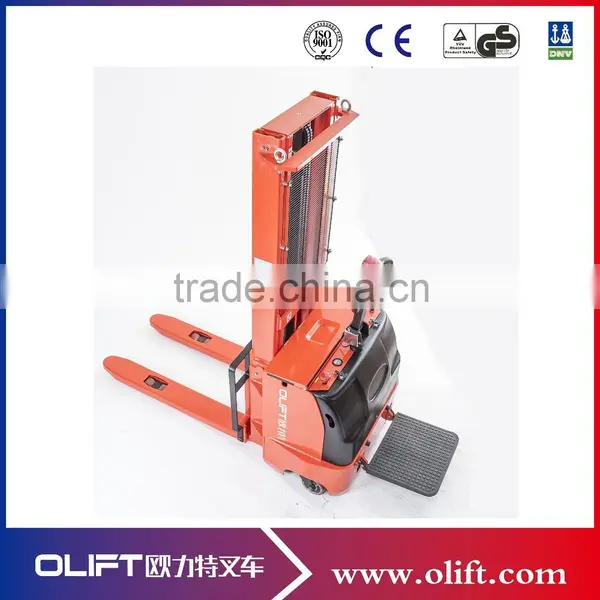

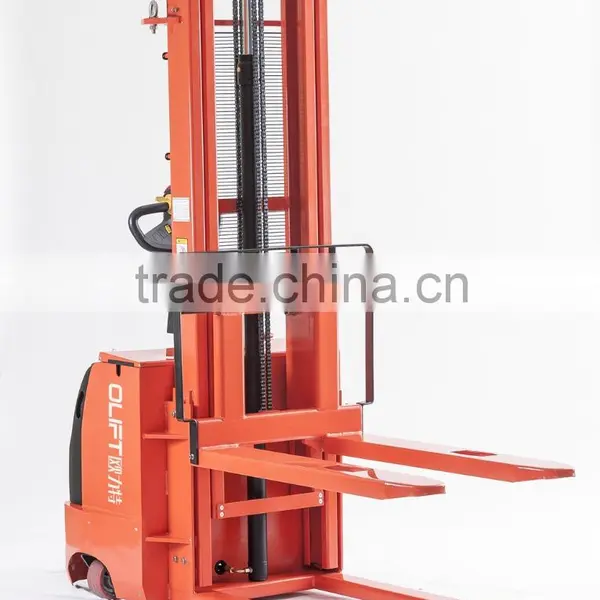

1.5ton 3.5m cheap high quality Electric stacker
Our electric stacker has passed the CE certification and is mainly applied in petroleum, chemical engineering, pharmacy, light textile, military engineering, painting, coal, port, railroad, warehouse, bridge back, etc. for load and unload, pile and move.
1.This electric reach stacker adopts double mast and chain driving technology.
2.Electric reach stacker controlling system is programmable based on the imported advanced foreign technology.
3.Stacker Moving type: electric driving and climbing to a certain gradient.
4.Electric reach stacker rising height and load can be changed as required by the customers.
5.There are complete safety equipments and their technical performance has reached the advanced level as the international product.
| Specification | Model | CDD15F | ||||||
| Driving mode | Battery | |||||||
| Drving type | Stand-on | |||||||
| Load capacity Q | kg | 2500 | ||||||
| Load center C | mm | 600 | ||||||
| Size | Overall length L1 | mm | 1920 | |||||
| Overall width W | mm | 940 | ||||||
| Lowered mast height H1 | mm | 2125 | 1800 | 2025 | 2125 | 2225 | ||
| Fork size L×b×m | mm | 1150×160×56 | ||||||
| Outsize fork width D | mm | 540/680 | ||||||
| Min.ground clearance x | mm | 29 | ||||||
| Wheelbase L0 | mm | 1270 | ||||||
| Wheels | Material | PU | ||||||
| Driving wheel size | mm | φ250×80 | ||||||
| Front wheel size | mm | φ78×70 | ||||||
| Balance wheel size | mm | φ150×75 | ||||||
| Performance | Min.turning radius Wa | mm | 1505 | |||||
| Aisle width Ast | mm | ≥2500 | ||||||
| Lifting height H | mm | 1600 | 2450 | 2900 | 3100 | 3300 | ||
| Max.mast height H2 | mm | 2250 | 2450 | 2900 | 3100 | 3300 | ||
| Min fork height H3 | mm | 90 | ||||||
| Driving speed(laden/unladen) | km/h | 4.0/5.5 | ||||||
| Lifting speed(laden/unlden) | mm/s | 90/160 | ||||||
| Lowering speed(laden/unladen) | mm/s | 95/120 | ||||||
| Electric Device | Brake | electromagnetic | ||||||
| Driving motor | Kw | 1.2 | ||||||
| Lifting motor | Kw | 2.2 | ||||||

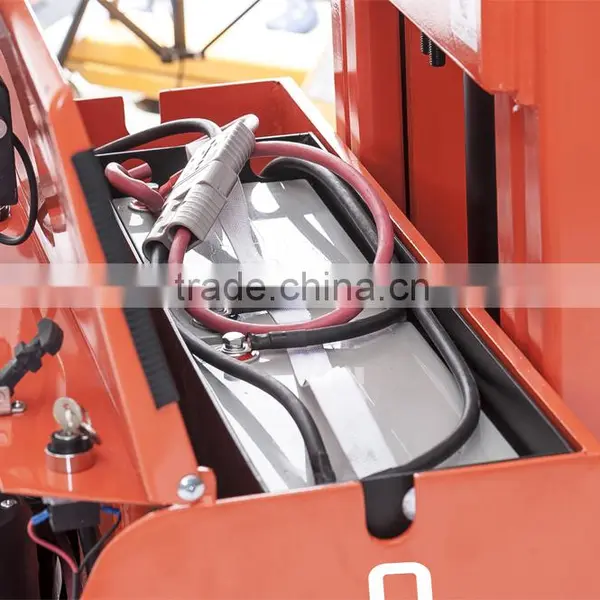

| Battery capacity/voltage | Ah/V | 200/24(Free maintance) | ||||||
| Batttery weight | kg | 180 | ||||||
| Other | Net weight(without battery) | kg | 620 | 680 | 705 | 715 | 725 | |
| Packaging Detail: | electric stacker walkie electric straddle stacker will be packed by Flexible Package, Seaworthy Package. |
| Delivery Detail: | 15-30 days for full electric stacker walkie electric straddle stacker |
1.Our company has passed ISO9001 and our products has passed CE andSGS.
2.We offer technical supporting all year round.If you want to get more details,please visit or website:
Company Profile:
Olift Equipment Co.,Ltd. provides wide selection of products such as forklift trucks, pallet trucks and stackers, scissor lifts, moving tools, platform lifting and more.
The workforce engages in intense research to develop functional, easy-to-use products that can provide the clients total value for their investment. The company emphasizes on total customer satisfaction, thus all equipment are manufactured to international standard and with impeccable quality.
In addition, it has in-house technical capabilities to design and manufacture the equipment. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.
