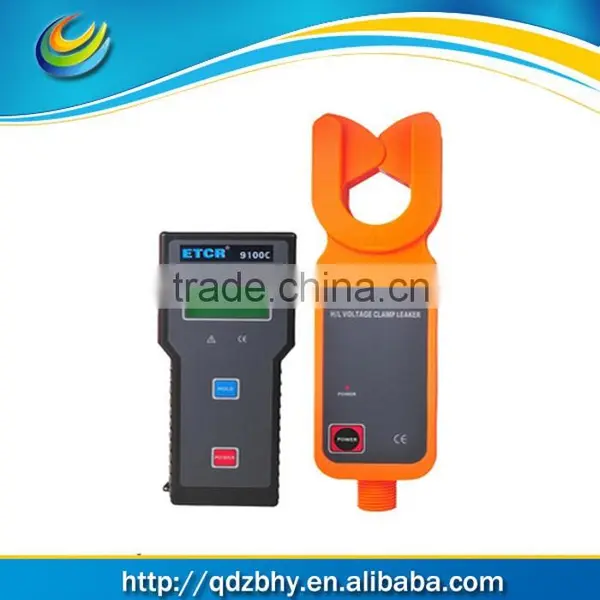

ETCR9100C Wireless High Voltage Clamp ammeter

Name: ETCR9100C Wireless High Voltage Clamp ammeter
Brand: ETCR
Availability: InStock

FOB Price

USD $1,300.05 - $1,300.05 / Set

1 Set(Min.Order)

Supply Ability 0 per Month
Port QINGDAO
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Brand Name	ETCR
Model Number	ETCR9100C	Operating Temperature	-25℃~40℃
Dimensions	68mm245mm40mm	Weight	10KG

Product Description

I. Introduction

ETCR9100C Zinc Oxide Arrester Leakage Tester has unique features of automatic plug function, specially designed and manufactured for high voltage current measurement; use the latest CT technology and integrated mask digital technology; composed of special high voltage detector, wireless receiver and high voltage insulation rods. Wireless transmission can receive the measured data by penetrating storey building barriers or 30 meters. If not use insulated rods, it can also used as high-precision low-voltage clamp meter and leakage current meter, can accurately measure the 0.1mA ~1000A current or leakage current. The integrated design of clamp and lead zone of ETCR9100C Zinc Oxide Arrester Leakage Testerensures uninterrupted year-round high precision, high reliability and high stability test.

In general cases, the leakage current of Zinc Oxide Arrester should be less than 500uA. In a running power transmission line, if the leakage current of Zinc Oxide Arrester is higher than 500uA, than the parameter of Zinc Oxide Arrester is un-normal, which can be caused by besmirch, or internal damp, or aging. The bigger the leakage current, the arrester is more un-normal. The leakage current to be a importance reference to the maintenance department to find the power transmission problem, or to check whether an arrester should be unstalled to under testing in lab or replace, avoid unnecessary replacement.

Technical Specifications

Function	High precision and resolution measurement of leakage of Zinc Oxide Arresters
Power Supply	DC6V Alkaline LR03×8
Test Mode	Clamp CT, integral approach
Transmission Mode	Wireless transmission, the maximum distance of straight line transmission is about 30m
Display Mode	4 bit LCD display, with backlight function
LCD Dimension	47mm×28.5mm
Meter Dimension	HV detector: 68mm×245mm×40mm; Receiver: 75mm×170mm×30mm
Clamp Dimension	33mm
Sampling Rate	2 times/second
Measurement Scope	AC 0.000mA-30.00mA(50/60Hz Automatic identification)
Resolution	1uA
Shift	Full automatic shift
Accuracy	±2%±5dgt (23C±5C, Below 80%RH)
Data Memory	99 sets, memory process is shown by MEM , full storage is shown by blinkingFULL
PEAK value maintaining	Automatically maintain the high test value, in usual testing mode, press keyHOLD till the lighting of PEAK, that is, start PEAK to maintain this function.
Data Hold	In usual testing mode, press HOLD key to keep data, shown by “HOLD”
Data Access	“MR” indication, can access to all data
Overflow Display	Over-range overflow function: shown in “OL A”
No Signal Indication	“no- -” is shown when receiver does not receive the dynamic display of signal transmission
Automatic Shutdown	15 minutes after boot
Battery Voltage	When battery voltage is lower than 4.8V, battery voltage is shown in low symbol to remind battery replacement
Meter mass	Detector: 335g (with battery), the total mass of meter: 2.5kg (including insulation rod and battery)
Working Temperature and Humidity	-25C-40C; below 80%Rh
Storage Temperature and Humidity	-10C-60C; below 70%Rh
Insulation Rod Dimension	φ32mm, 1m/piece (5pieces)
Insulation Strength	AC 100kV/rms (between the 5^th insulation rod and high voltage current clamp core)
Structure	Anti-drip type II
Accessories	Clamp: 1 piece; receiver: 1 piece; meter box: 1 piece; insulation rod (1m): 5 pieces; battery (alkaline battery AAA): 8 pieces
