Home > Instruments & Meters > Test Instrument > Test Machine > ETCR4800 Oil Pumping Multimeter / Patrol Tester / Petroleum Special Instruments

ETCR4800 Oil Pumping Multimeter / Patrol Tester / Petroleum Special Instruments

Name: ETCR4800 Oil Pumping Multimeter / Patrol Tester / Petroleum Special Instruments
Brand: ETCR
SKU: 100476231
Availability: InStock

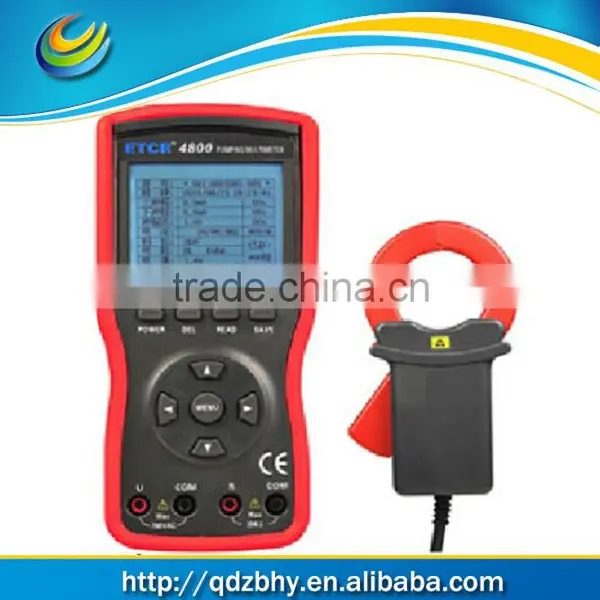

ETCR4800 Oil Pumping Multimeter / Patrol Tester / Petroleum Special Instruments thumbnail-1

ETCR4800 Oil Pumping Multimeter / Patrol Tester / Petroleum Special Instruments photo-1

US$ 659.18 - 659.18 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

ETCR

Model Number:

ETCR4800

Contact Supplier Request Quote Chat Now

Qingdao Zhibohongyu Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name ETCR

Model Number ETCR4800

Product Description

ETCR4800 pumping multimeter ( pumping Patrol tester ) is our well developed specifically for oil field testing a fully automated , multi-functional , digital, intelligent instrument , with high accuracy, high stability, low power consumption, easy to use features . Simultaneous measurement of electrical parameters field : between AC current , voltage, frequency , voltage and current phase , pass off resistance , maximum current pumping up and down stroke , stroke ratio, up and down stroke time , strokes per minute , thereby determine the working conditions of the pumping unit for electricity inspectors , oil field pumping units commissioning personnel , engineers, electricians, oil workers, personnel in the field of measurement of electrical parameters of electrical balance of pumping wells will be monitored at any time , provided a safe, accurate , and convenient new field instruments.

ETCR4800 pumping multimeter latest selection of materials designed shell, equipped with anti-vibration , anti-slip , high insulation jacket , using 240 × 160 dots LCD monitor , all measured parameters with the screen display , at a glance , looks exquisite and comfortable . Instrument equipped with DC charging interface and RS232 interface , can store 1000 sets of data, stored by the system software to upload data to the computer , to facilitate inquiries leadership to achieve historical data query , read, analyze , store, report, print and so on. Meanwhile, the instrument also has an administrator setting function , the password entered , including the clock setting , the pound settings, password settings.

Two . Technical Specifications

Function	Simultaneous measurement of electrical parameters field : between AC current , voltage, frequency , voltage and current phase , pass off resistance , maximum current pumping up and down stroke , stroke ratio, up and down stroke time , strokes per minute
Power source	DC7.2V ( section 1.2V 6 5 number can be rechargeable battery )
Jaw size	Round lip current clamp : 35mm × 40mm
Range	Voltage : AC 0V ~ 700V
	Current : AC 0.0mA ~ 300A
	Phase : 0 ~ 360
	Resistance : 0.00Kohm ~ 20.0Kohm
	Frequency : 10.0Hz ~ 70.0Hz
Resolution	Voltage : AC 1V
	Current : AC 0.1mA
	Phase : 1
	Resistance : 10ohm
	Frequency : 0.1Hz
Accuracy	Voltage : (1.5% rdg + 3dgt)
	Current : (1.5% rdg + 3dgt)
	Phase : 3
	Resistance : (2.0% rdg + 3dgt)
	Frequency : (2.0% rdg + 3dgt)
Measured phase frequency amplitude	Voltage : 30V ~ 700V
Measured phase frequency amplitude	Current : 30mA ~ 300A
The number of wells No.	No. 100
Data Storage	1000 group
RS232Interface	RS232 interface , uploading computer stored data to facilitate analysis and management of data through software editing pound
Communication lines	1.8 m RS232 communication lines , long
Well number setting	15 code , you can edit the PC software instrument or pound sign
Clock function	There is
Password Settings	There , six digit password
Backlight function	There are , for dark places and at night, do not operate the instrument backlighting turns off automatically after 3 minutes
Automatic shutdown	Within 15 minutes after boot does not operate the meter will automatically shut down
Power consumption	The maximum power consumption of 50mA backlight turned on
Power consumption	30mA backlight off power meter
Display Mode	LCD display , 240dots × 160dots
Meter size	Long generous : 196mm × 92mm × 54mm
DetectionRate	About 2 seconds / time
Battery voltage	Meter time display battery voltage, when the battery voltage is lower than 6.5V, low battery symbol appears , please charge
Instrument Quality	About 1kg ( including attachments )
Test line length	1.5m
Current Clamp Cable Length	2m × 5mm
Working temperature and humidity	-20 ~ 40 ; 80% Rh or less
Storage Temperature and Humidity	-10 ~ 60 ; 70% Rh or less
Input impedance	Test voltage input impedance is : 2M
Resistance to pressure	Meter line and shell tolerance between 1000V / 50Hz sine wave AC voltage lasted 1 minute
Insulation	100M meter line between the shell and jacket
Structure	Double insulation , vibration-proof jacket with insulation
For Safety	IEC61010-1 CAT 600V, IEC61010-031, IEC61326, pollution degree 2
Random Accessories	Host: 1 ; current clamp : 1 ; test line : 4 ; RS232 data lines : 1 ; Software CD : 1 ; meter box : 1 ; Charger: 1 ; Rechargeable Battery : 6 ( 1.5 V 5 numbers)
