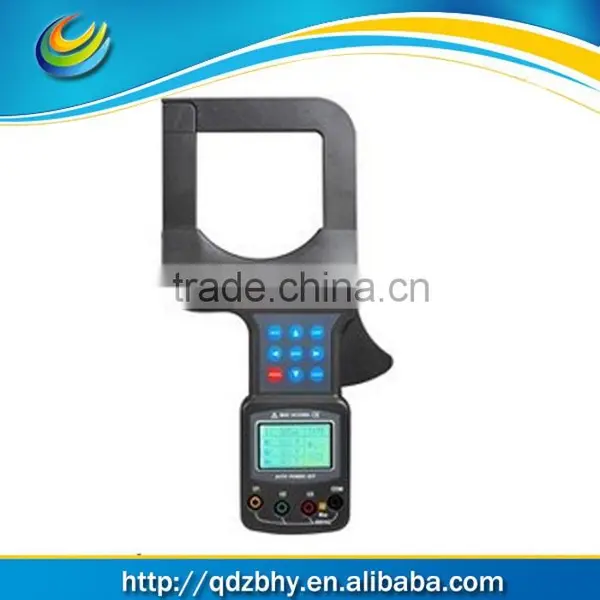

ETCR7000B AC Large Caliber Clamp Leaker Current Meter

ETCR7000B AC Large Caliber Clamp Leaker Current Meter thumbnail-1
ETCR7000B AC Large Caliber Clamp Leaker Current Meter photo-1
US$ 311.28 - 311.28 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
ETCR
Model Number:
7000B
Contact Supplier Request Quote Chat Now
Qingdao Zhibohongyu Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name ETCR
Model Number 7000B



Product Description

 ETCR7000B AC Large caliber Clamp Leaker Current Meter

Model:ETCR 7000B
Name:Large Caliber Leakage Clamp Meter



Features:Large caliber, high precision, high anti-interference ability. AC current, three phase AC voltage measurement. Current: 0.00mA~2500A, Voltage: 0.00V~600V, Resolution: 0.1A, 0.01V. Clamp Size : 80X80 mm



.Technical Specifications







Function
Measure AC leakage current, current, there-phase, voltage
Power
6V DC(LR6× 4 alkaline dry batteries, continuously working for 12 hours)
Test Mode
Clamp CT, integral mode
Clamp Size
80mm× 80mm(can clamp electric cable of 80mm diameter, or 96mm× 4mm flat cable and steel earth wires)
Current Range
0.0mA~2500A
Current Resolution
0.1A
Voltage Range
0.00V~600V
Voltage Resolution
0.01V
Measurement Accuracy
(23º C± 3º C, below 70%RH,   measured wire at the center of the clamp)
0.00mA~300A: ± 1.5%± 3dgt

300A~1200A:   ± 2%± 3dgt

1200A~2500A: ± 3%± 3dgt

0.00V~600V:   ± 1.5%± 3dgt
Measured Wire Position
Measured wire at approximately the geometric center of the clamp
Data Storage
200 sets,   “ FULL ” symbol indicate the memory is full
RS232 Interface
With RS232 interface, download data to computer for analysis and management
Communication Wire
RS232 communication wire, 1.8m
Frequency
50Hz, 60Hz automatic identification
Gear Shift
Automatic shift
Sample Rate
About 2 times/second
Line Voltage
Below AC 600V line measurement
Display Mode
LCD: 128dots× 64dots; Display area: 43mm× 29mm
Meter Size
Length 275mm × Width 145mm × Height 40mm
Backlight
Controlled by LIGHT key
Data Hold
" HOLD ” symbol appears
Overflow
" OL ” symbol appears
Automatic Shutdown
Automatically shutdown about 15 minutes after power on to reduce battery consumption
Voltage Detection
Low battery symbol “         " appears to remind the replacement of battery when the battery voltage drops below 5.2V.
Weight
1kg(with batteries and accessories)
Working Current
50mA with enabled backlight; 25mA with disabled backlight
Working Temperature and Humidity
-10° C~40° C; 80%rh
Storage Temperature and Humidity
-10° C~60° C; below 70%rh
Insulation strength
AC 2kV/rms(between core and shell)
S afety S pecifications
IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT III(600V)
Accessories
Main Unit: 1 pc; Test Line: 4 pcs (3 red, 1 black); RS232 Data Line: 1 pc; Disk: 1 pc; Battery: 4 pcs(Alkaline Dry Battery LR6); Meter Box: 1 pc; User Manual: 1 pc; Guarantee Card: 1 pc; Certification: 1 pc
