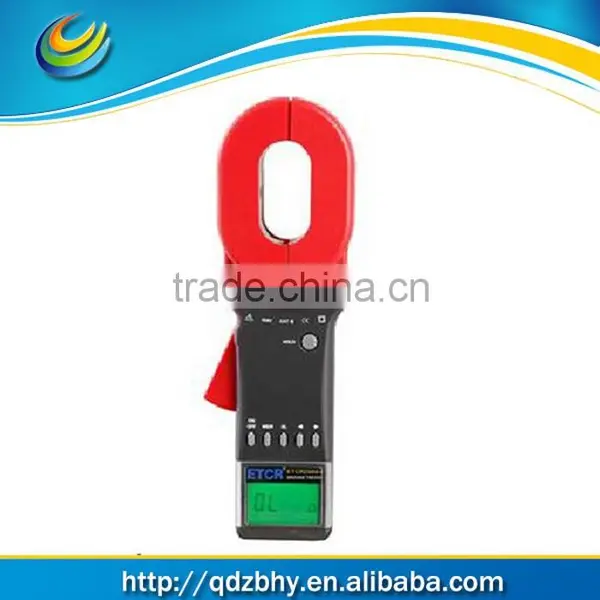

ETCR2100A+ Clamp Earth Resistance Tester
US$ 406.9 - 406.9
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
ETCR
Model Number:
ETCR2100A+
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ETCR2100+ Digital Clamp On Ground Earth Resistance Tester MeterUS$ 447.59 - 447.59MOQ: 1 Set -
ETCR2100B Clamp Ground Resistance TesterUS$ 512.7 - 512.7MOQ: 1 Set
-
ETCR2100C+ Digital Earth Resistance MeterUS$ 590.01 - 590.01MOQ: 1 Set
-
ETCR2800B Series Non-Contact Grounding Resistance Online TesterUS$ 842.29 - 842.29MOQ: 1 Set
-
ETCR2800C Series Non-Contact Grounding Resistance TesterUS$ 915.53 - 915.53MOQ: 1 Set
Place of Origin
China
Brand Name
ETCR
Model Number
ETCR2100A+
Measuring Range
0.01-200Ω
Accuracy Class
±1%±0.01Ω
Operating Temperature
-20C-55C
Dimensions
285mm*85mm*56mm
Product Description
I. Introduction
ETCR Clamp Earth Resistance Tester is widely applied in ground resistance measurement, loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil field, architecture and industrial electrical equipment, etc. When measuring ground system with loop, there is no need to disconnect the ground wire without auxiliary electrode, which means safer and faster. ETCR Clamp Earth Resistance Tester can measure the ground fault which can not be measured by traditional method, can apply in the occasion where traditional methods are unworkable; ETCR Clamp Earth Resistance Tester measures the integrated value of ground resistance and resistance lead.
II. Technical Specifications
| Function | Ground resistance test, Loop resistance test |
| Power Supply | 6VDC 4 PCS of LR6 Alkaline batteries |
| Resistance Range | 0.01-200Ω |
| Resistance Resolution | 0.001Ω |
| Highest Resistance Accuracy | ±1%±0.01Ω |
| Data memory | 99 Sets |
| Alarm Threshold Setting Range | Resistance: 1-199Ω |
| Alarm Sound and Light | “Beep-beep-beep” alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold. |
| Interference Signal Recognition | “Beep-beep-beep” tone, NOISE symbol blinking |
| Working Temperature and Humidity | -20C-55C;20%RH-90%RH |
| LCD Screen | 4 Digits LCD display, Screen L×W: 47mm×28.5mm |
| Clamp Size | Φ32mm |
| Clamp Opening Extent | 32mm |
| Tester Weight | 1160g (With batteries) |
| Clamp Dimension | L×W×T: 285mm×85mm×56mm |
| Protection Level | Dual Insulation |
| Structural Feature | Clamp CT |
| Shifting | Automatic shifting |
| External magnetic field | <40A/m |
| External electrical field | <1V/m |
| Single measurement time | 0.5 second |
| Resistance measurement frequency | >1KHz |
| Measured current frequency | 50/60Hz Automatic measurement |
| Low Battery Indication | Low battery symbol displays when battery is lower then 5.3V |
| Memory Full Indication | MEM symbol blinks when all 99 sets memory is full |
| Over Range Indication | Out of range indication “OLΩ”, “L0.01” or “OL A” |
| Auto Power-off | 5 minutes after Boot up |
| Power Consumption | Max 50mA either in booting up or normally working, Continuously working for 30 hours |
| RS232 Interface (Optional) | The data stored in the meter are uploaded to the computer through RS232 interface and data wire, Then generate report files |
| Accessories | Meter: 1 piece, Test Ring: 1 Piece, Meter Suitcase: 1 Piece , Batteries: 4 PCS (LR6) |
III. Field Application
