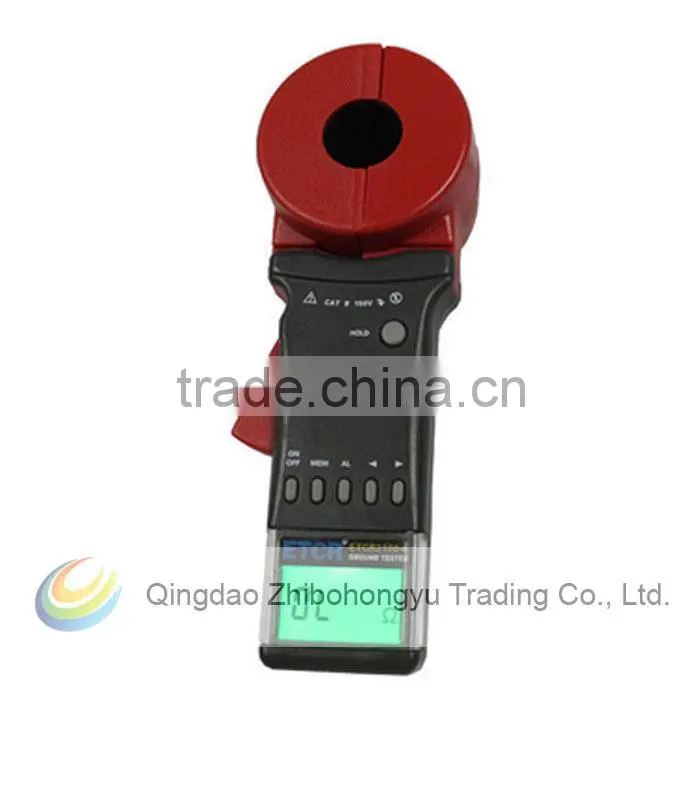

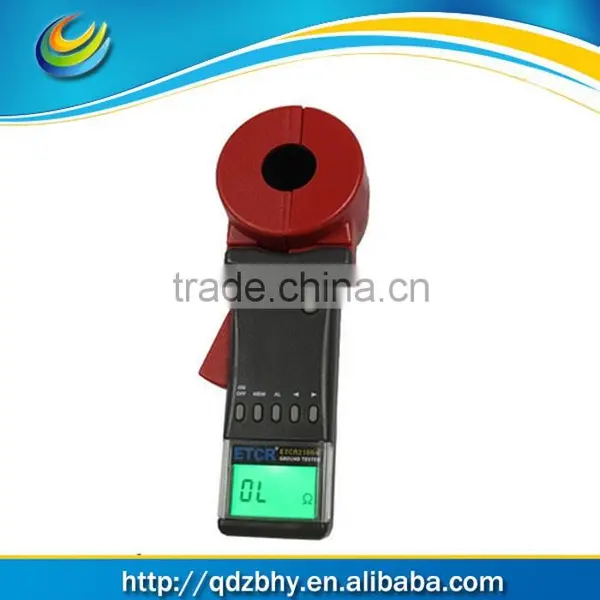

Help CenterETCR2100+ Digital Clamp On Ground Earth Resistance Tester Meter
Related Products
-
ETCR2100B Clamp Ground Resistance TesterUS$ 512.7 - 512.7MOQ: 1 Set -
ETCR2100C+ Digital Earth Resistance MeterUS$ 590.01 - 590.01MOQ: 1 Set
-
ETCR2800B Series Non-Contact Grounding Resistance Online TesterUS$ 842.29 - 842.29MOQ: 1 Set
-
ETCR2800C Series Non-Contact Grounding Resistance TesterUS$ 915.53 - 915.53MOQ: 1 Set
-
ETCR3000 Digital Earth Resistance TesterUS$ 435.79 - 435.79MOQ: 1 Set
Feature
Boot Time Self-test in 0.5 second, boot instantly
Measuring Range - 0.01-1200Ω , Wider range
Stored Data-99 sets
Beeps and NOISE symbol blinking. Strong anti-interference ability
RS232 interface Available
Power Consumption-Maximum 50mA, Longer battery life
Meter Appearance-Fine appearance, More fixed structure, Easy operation
Battery Cover-With fastening screws, Secure, Reliable, Easy battery replacement
Parameter
Function Ground resistance test, Loop resistance test
Power Supply 6VDC 4 PCS of AA Alkaline batteries
Resistance Range 0.01-1200Ω
Resistance Resolution 0.001Ω
Highest Resistance Accuracy +/-1% +/-0.01Ω
Current Range 0.00mA-20.0A
Current Resolution 0.05mA
Highest Current Accuracy +/- 2.5% +/- 1mA
Data memory 99 Sets
Alarm Threshold Setting Range Resistance: 1-199Ω
Alarm Sound and Light "Beep-beep-beep" alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold
Interference Signal Recognition "Beep-beep-beep" tone, NOISE symbol blinking
Working Temperature and Humidity -20°C ~ 55°C ; 20%RH - 90%RH
LCD Screen 4 Digits LCD display,Screen L x W: 47mm x 28.5mm
Clamp Size 32mm
Clamp Opening Extent 32mm
Tester Weight 1160g (With batteries)
Clamp Dimension 285mm×85mm×56mm (LxWxT)
Protection Level Dual Insulation
Structural Feature Clamp CT
Shifting Automatic shifting
External magnetic field <40A/m
External electrical field <1V/m
Single measurement time 0.5 second
Resistance measurement frequency >1KHz
Measured current frequency 50/60Hz Automatic measurement
Low Battery Indication Low battery symbol displays when battery is lower than 5.3V
Memory Full Indication MEM symbol blinks when all 99 sets memory is full
Over Range Indication Out of range indication "OLΩ", "L0.01" or "OLA"
Auto Power-off 5 minutes after Boot up
Power Consumption Max 50mA either in booting up or normally working,
Continuously working for 30 hours
RS232 Interface (Optional) The data stored in the meter are uploaded to the computer through RS232 interface and data wire, Then generate report files
Safety Provisions IEC1010-1, IEC1010-2-032, Pollution level 2, CAT (600V)
Accessories Meter:1 piece, Test ring: 1 Piece, Meter Suitcase: 1 Piece
Package
1pc ETCR2000C + Clamp Earth Resistance Tester
1pc Test Ring
1pc meter suitcase
