ETCR2800B Series Non-Contact Grounding Resistance Online Tester
US$ 842.29 - 842.29
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
ETCR
Model Number:
ETCR2800B
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ETCR2800C Series Non-Contact Grounding Resistance TesterUS$ 915.53 - 915.53MOQ: 1 Set -
ETCR3000 Digital Earth Resistance TesterUS$ 435.79 - 435.79MOQ: 1 Set
-
ETCR3000B Resistance Soil Resistivity TesterUS$ 805.66 - 805.66MOQ: 1 Set
-
ETCR 3600 Intelligent Equipotent Tester ETCR3600US$ 622.56 - 622.56MOQ: 1 Set
-
ETCR4000 Double Clamp Digital Phase Meter Clamp MeterUS$ 512.7 - 512.7MOQ: 1 Set
Place of Origin
China
Brand Name
ETCR
Model Number
ETCR2800B
Operating Temperature
-10℃-40℃
Dimensions
208mm*67mm*117mm
Product Description

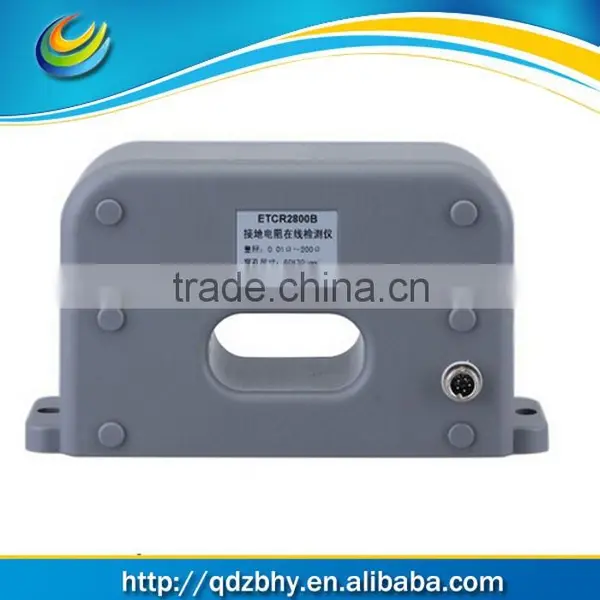

ETCR2800B Non-Contact Grounding Resistance Online Tester
Non-contact measurement, safe and reliable, Ease of installation. Grounding down lead is directly through the detector perforation, will not affect lightning protection grounding effect and the normal operation of the facilities.
Allocating display screen and alarming light, may at any time to observe the grounding resistance value. Can set the critical value, Alarm light is flashing when the measured value is beyond pre-set critical value.
Provide a protection case, has the function of guard against theft and anti-collision, the rechargeable battery place inside can supply power
The Remote monitoring system can connect to computer by wired (RS485Bus+RS232) or wireless (RS485Bus+RS232+GSM/GPRS) to realize remote monitoring.
Size of hole:60mmx30mm
Resistance range:0.01Ω~200Ω
| Model | ETCR2800B | ETCR2800C |
| Product Picture |
|
|
| Functions | Grounding condition monitoring, metallic return connection resistance, grounding conditions on-line monitoring. | |
| Power Supply | 6VDC; Max: 50mA.(external supply) | |
| Resistance Range | Range: 0.01Ω~200Ω; Resolution: 0.001Ω. | |
| Accuracy | ±2%Rdg±3dgt(20±5 Degree,Below70%RH). | |
| Anti-explosion signal | ExiaIIBT3Ga | |
| Display Mode | Detector without display, needs doing secondly development to display. | 4digits LCD direct indication or doing secondly development software to display. |
| Display range | System software:0.00Ω~500Ω | 0.00Ω~500Ω |
| Overflow Indication | When show value is beyond 500Ω, system software shows “OLΩ” sign. | When show value is beyond 500Ω, LCD shows “OLΩ” sign. |
| Power Supply Indication | No | Light is on when there is electricity. |
| Alarm Light | Warn by system software | Alarm light is flashing when the measured value is beyond pre-set critical value. |
| Alarm Setting Value Range | 0.01Ω~200Ω, set on the software | 0.01Ω~200Ω,detector panel setting or on the software |
| Humiture | -20~55 degree; 20%RH~90%RH. | |
| Installing Screw Hole Size | Φ8mm | |
| Disturbance Of Electromagnetism | External magnetic field<40A/m; external electric field<1v/m | |
| Time for Single Measurement | About 0.5 second | |
| Dimensions | 208mm×67mm×117mm | |
| Grounding Wire Perforation Size | 60mm×30mm, closed mode (60mm×4mm steel flat or external diameter 30mm electric cable) | |
| Quality | 960g | |
| Accessories | Detector: 1set; Connecting wire: 1PCS. | |
| Options | Stainless steel protection case Have the function of rain-proof, against theft, anti-collision,provide reliable protection for the detector; can place accumulator which supply power. Size of the case:320x210x190mm, size of the hole:52x22mm Weight of the case:3500g |
|
| 6V12AH Accumulator + charger Supply power for detector, accumulator place in the protection case | ||
| 6V12AH Accumulator + solar panel Supply power for detector, accumulator place in the protection case Solar panel supply power for accumulator. Rated of solar panel:15W | ||
