ict220 transformer adapter 8v 2a
For Ingenico 179901469 POWER SUPPLY FOR IPP320,IPP350 ISS250,ISC250,ICT220 120V,AC/8V DC
Electrical Characteristics:
- AC input voltage ……100-240VAC
- Output ………8V 2A
- Input frequency ………47-63Hz
- AC inrush current(max.) …….20A/230V
- Line regulation (full load).......±0.5%
- Peak- to -peak ripple …….<500MV
- Working temperature………….0-35°C@100%,50°C@70% load
- Setup rise hold up time………100ms,50ms,20ms@240VAC input
- Strong made totally compatible part
- Over voltage protection………115%-135% rated output voltage
- Withstand voltage………I/P-O/P 3Kvac,1 minute
- Over load protection ………115%-135%fold back current limiting, Auto-recovery
- Input Condition ……… 100 to 240VAC 50/60 Hz 1A Max
- Input Rated Voltage ……… 100 to 240VAC
- Input Voltage Range ……… 90 to 264VAC
- Input Rated Frequency ………50/60Hz
- Input Frequency Range ……… 47Hz to 63Hz
- Inrush Current ……… 60A Max
- No Load Power Consumption ……… within 0.3W
- Efficiency ……… 80% Min
- Line Regulation……… ± 1%
- Load Regulation ……… ± 5%
- Over Shoot ………10% Max
- Ripple And Noise……1% Max
- Rising Time ……… 20ms Max At 115Vac
- Output Hold up Time ……… 8ms Min At 230Vac
- Protection ……… OCP OVP SCP OPP
- Dielectric Withstand Voltage ……… 3.75KV 5mA 60s
- Leakage Current ……… 0.25 mA At 230Vac
Environment:
- Operating Temperature: 0~40°C ,full load , normal operation
- Storage Temperature: -20~80°C with package
- Relative Humidity: 5%(0°C) ~90%(40°C) RH ,72 hours, full load,
Description:
| General Information | ||
| | ||
| Manufacturer Website Address | ||
| Compatible Brand Name | Ingenico | |
| Product Model | 179901469 | |
| Product Type | AC Adapter | |
| Technical Information | ||
| | ||
| Device Supported | POS System | |
| Power Description | ||
| | ||
| Input Voltage | 110 V AC | |
| Frequency | 60 Hz | |
| Output Voltage | 8 V DC | |
| Maximum Output Current | 2 A | |
| Miscellaneous | ||
| | ||
| Compatibility | Ingenico ICT220 POS System |
|

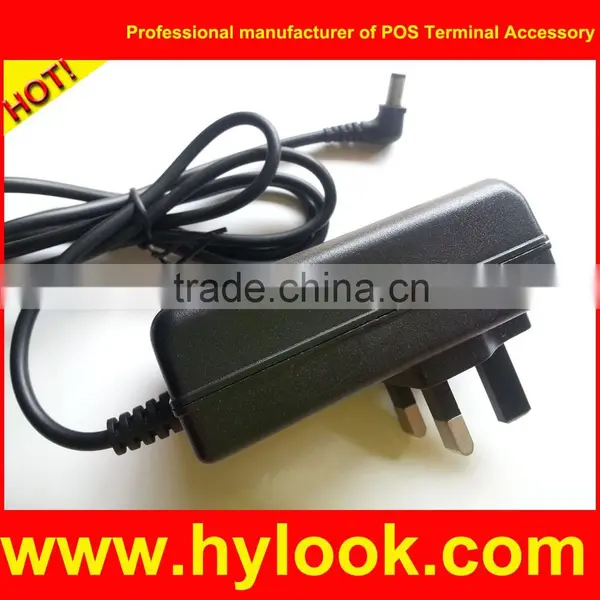

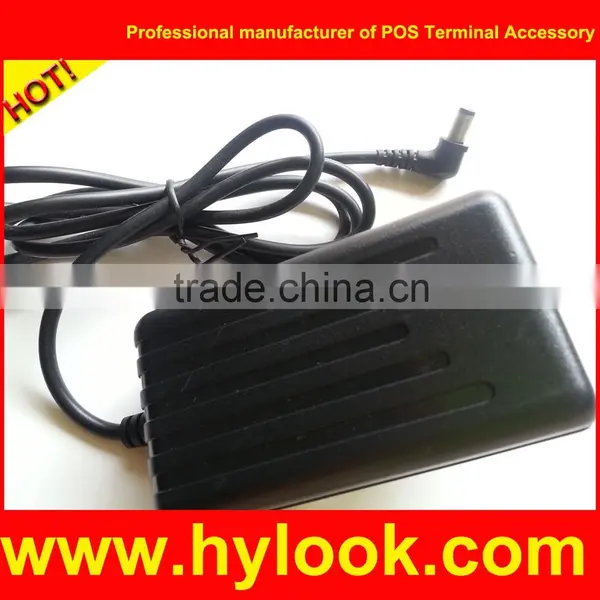

Photos:
Specification:
- Output Type:8V 2A
- Input: 100-240V AC 50/60Hz
- Cable length: about 120CM
- Out put adaptor : 5.5mm or according to your requirement
- Condition: Brand New 100%
- We have the Adapter for US/EU/UK/Australia
- 100% burn in test 4 hours,assure the quality:
- Packing
Advantages:
1. AC input power suitable for the world
2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size ,light weight
5. 100%full-load burning test
About our company:
- Our company ,shenzhen hylook Electronic Co.,LTD,a factory specializing in power adapters, OEM and ODM service is available
- our ac dc adaptor are 100% burning in tested for 3 hours before delivery to control the defective to the lowest !
About us: |
|
l HYLOOK produce all different kinds of power adapter,cable and batteries for pos terminal,LCD monitors ,Laptop ,Pos printer,musical instrument and all kinds of electronic equipment
l OEM and ODM service are available l Every pieces of products 100% testing before sending out ,control the defective rate to the lowest l Fast delivery ,very good price
|
|
Inspection procedure : |
|
1.Test procedure: Semi-finished product test -- -Finished product -Load test --High pot test--Burning in test-Visual inspection before packing
2.Assure low failure rate: All of our power adapters delivered to you burning in test for 3 hours at 80% load ,to assure low failure rate .Buy with confidence !
|
|
Advantage: |
of POS (EPOS) market (Verifone, Ingenico, Hypercom, Lipman and others).
network of POS and maintain asset value minimizing unused equipment.
characteristics, specific connectors and certifications that are required in each country.
other peripheral devices as barcode readers. MIFARE reader etc.
in the market with the highest levels of technical quality .Each cable requires specific knowledge of pin out of each POS models of different brands.
|
Why Choose HYLOOK ? |
|
Quality Assurance:All the products will go through 5 checks during production
Warranty: One-year warranty, the broken power adapters will be replaced and the new lights will be reduce from next order
Production capacity: Monthly production more than 100,000 pcs products exported world-widely.
Competitive price: Factory direct sale, good price.
|
Pos terminal accessories we also produce : |
|
Contact us: |
|
If you want to get our catalogue or more details about our products,please feel free to contact with us . Skype:fysummy Trademanager :cn1001346229 Tel:086-0755-29062506
|
