Switching Power Adapter 5v 3a
US$ 1 - 10
MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HYLOOK
Model Number:
HL-W05-030
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ict220 Transformer Adapter 8v 2aUS$ 1 - 10MOQ: 100 Units -
12V AC DC Adapter for Mx860,Mx870 Mx9xx,Mx7000, Everest Verifone CPS11212D-1B-RUS$ 0.5 - 10MOQ: 100 Units
-
110V-240V to 8V 2A AC DC Power Supply for Ingenico ISC250 Ipp320 Ipp350 179901469US$ 1 - 10MOQ: 100 Units
-
3-12V Universal Wall AdapterUS$ 1 - 10MOQ: 100 Units
-
Universal 3-12V Power Supply AdapterUS$ 1 - 10MOQ: 100 Units
Place of Origin
Guangdong, China
Brand Name
HYLOOK
Model Number
HL-W05-030
Output Type
DC
Connection
Plug In
switching power adapter 5v 3a
Features :
- · Latest state of-the-art current model design.
- · Maximum output power of 15W.
- · High efficiency, High reliability, Low cost.
- · AC input voltage range 85V ~ 265VAC.
- · Built-in EMI filter.
- · Low Ripple and Noise.
- · Soft start circuit to limit the AC inrush current.
- · Screw type input and output connectors.
- · Compact, Light weight.
- · Momentary output short circuit protection, Over voltage protection.
- · 100% Full load burn-in test.
Description:
- If the output of a power supply is maintained at a constant voltage, then the load's resistance determines the output current. It is Ohm's Law.
- So it will be no problem to use this power adapter to replace any 5V power adapter that maximum current output is less than 3A.
-

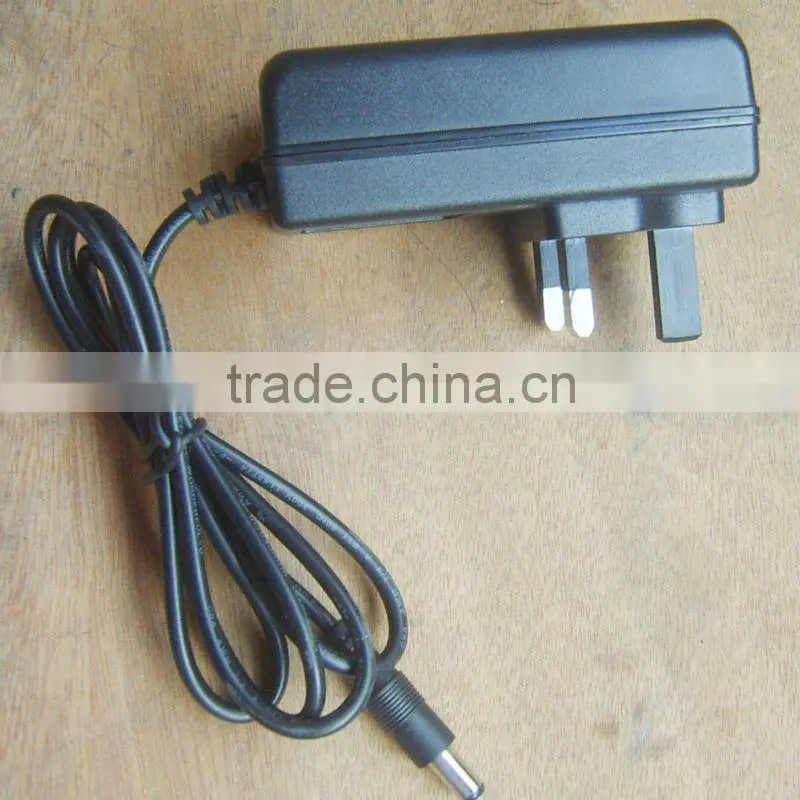

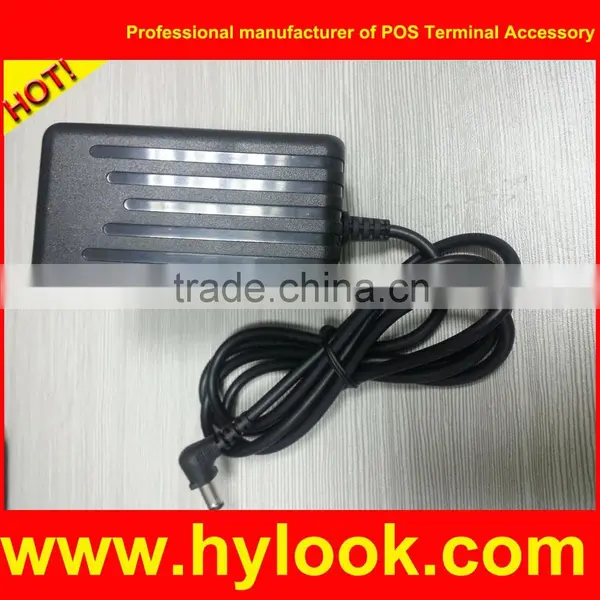

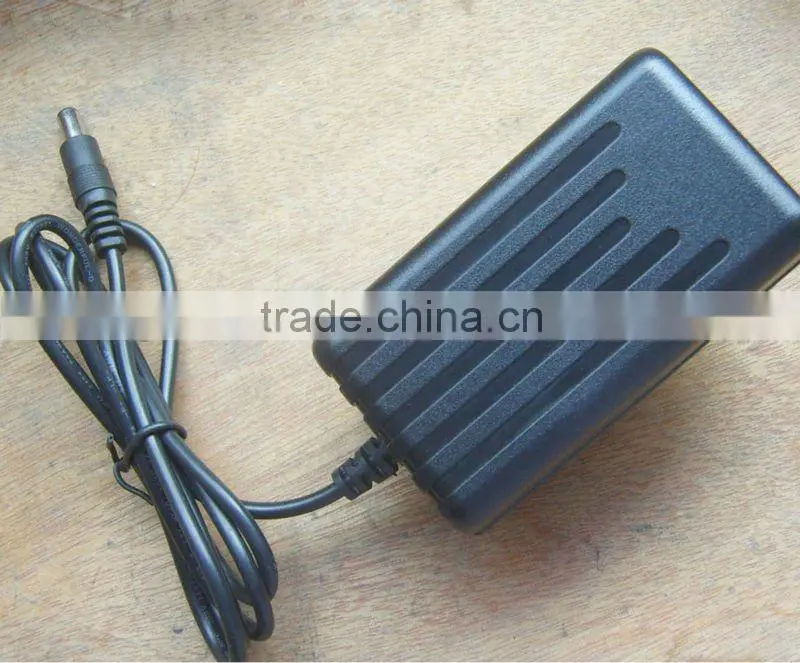

100% brand new.This AC to DC power adapter converts 110~240V AC power to 5V DC power withe maximum 15 Watt (3 Amps) output capacity.
Specifications:
- Input : 100V-240V 50/60Hz
- Output : DC 5V 3A / 3000mA
- Out put adaptor : 5.5mm x 2.1mm
- Length of the cable: 120CM
- Connector inside positive (+) outside negative (-)
- warranty 12 months
- pack: 1*5V 3A Power Supply
Applications:
- For the Wireless Router, ADSL Cats, HUB, Switches, Security Cameras.Audio/Video Power Supply.
- Package Content: 1 x 5v 3a power adapte
- Undertake OEM orders or large wholesale.
- US / EU / UK / AU Plug Power Supply
- ( 3V /4.5V / 5V / 6V/ 7.5V/ 9V/ 12V/ 15V/ 24V or Other models )
Environmental:
- Operating Temperature: 0°C ~ +40°C
- Storage Temperature: -40°C ~+70°C
- Operating Humidity: 10% ~ 90% RH Non-condensing
- Storage Humidity: 5% ~ 95% RH Non-condensing
Mechanical:
- Dimensions: 70mm(L)*45mm(W)*31mm(H) (2.8" x 1.8" x 1.2")
- N.W.:110g (3.8 oz)
- AC Input Plug: US 2 flat pins
- Output: 5V DC, Max. Current: 3A *
- Caution: For indoor use only
Polarity:
- This adapter has the positive (+) in the middle and the negative (-) on the exterior of the plug.
- This power adapter has constant output voltage, but variable output current. 3A (Amps) is just the maximum output current this power adapter can supply, it is not the actual output current. Actual output current will be variable depends on the demanding of device it powered. If the output of a power supply is maintained at a constant voltage, then the load's resistance determines the output current. It is Ohm's Law. So it will be no problem to use this power adapter to replace any 5V power adapter that maximum current output is less than 3A.
About our company:

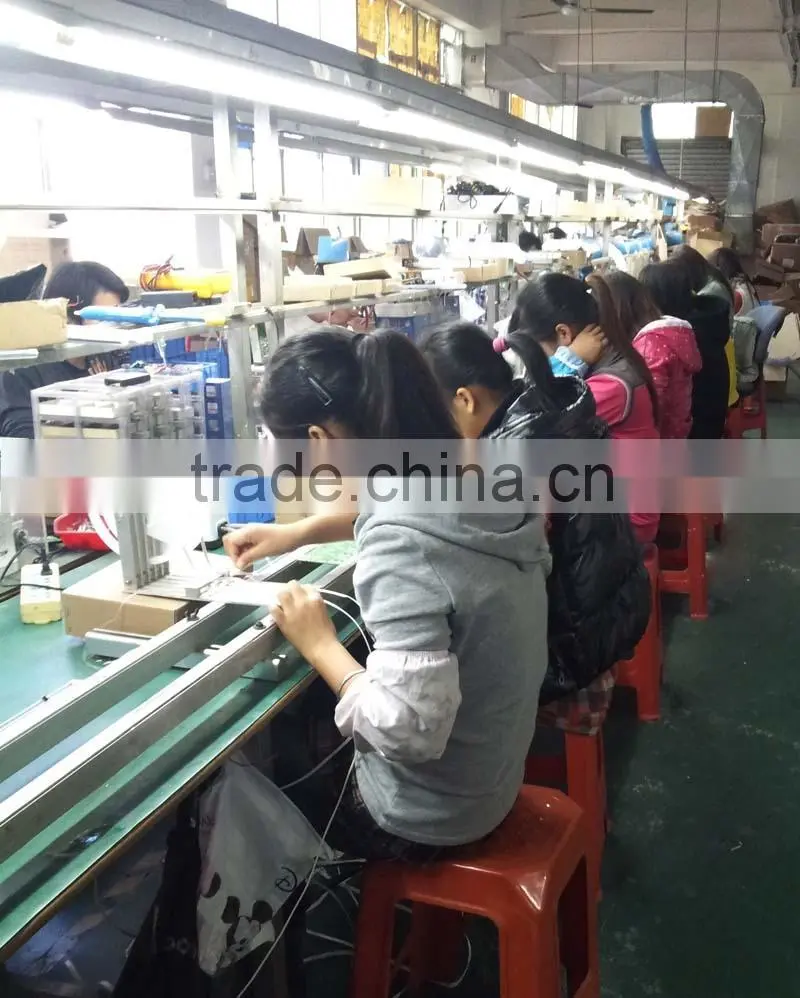

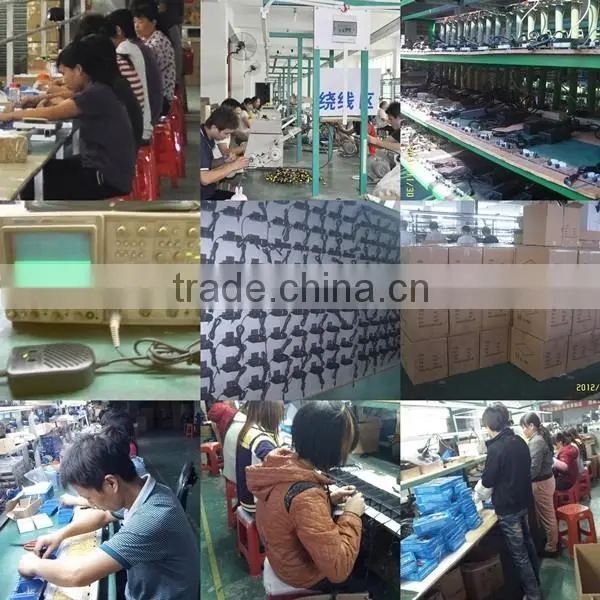

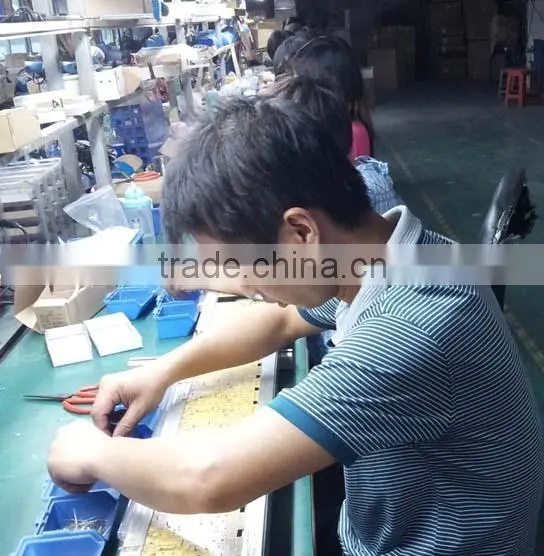

Our company ,shenzhen hylook Electronic Co.,LTD,a factory specializing in switching power adapters and cables, OEM and ODM service is available
