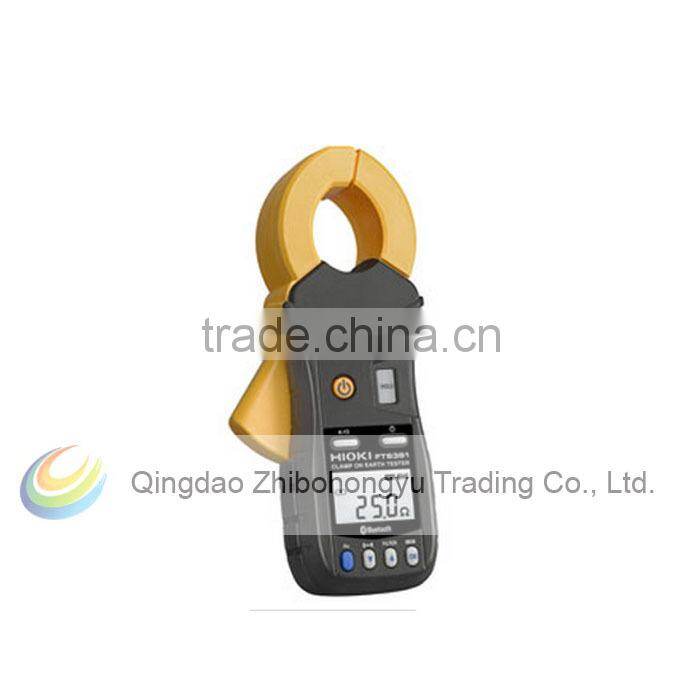

Clamp Ground Resistance Tester FT6380

Clamp Ground Resistance Tester FT6380 thumbnail-1
Clamp Ground Resistance Tester FT6380 photo-1
US$ 1,876.67 - 1,876.67 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
HIOKI
Model Number:
FT6380
Contact Supplier Request Quote Chat Now
Qingdao Zhibohongyu Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name HIOKI
Model Number FT6380



Product Description

 Clamp Ground Resistance Tester FT6380

(Accuracy guaranteed for 1 year, or opening and closing of the clamp sensor 10,000 times)

Measurement principle Instrument has two cores for voltage injection and current measurement. From the defined voltage and measured current, the total circuit loop resistance is calculated
Note: For multi grounded systems only. In a multi-grounded system, the larger the number of grounding poles, the more accurate the measured value.
Earthing resistance 0.20 Ω (0.01 Ω resolution) to 1600 Ω (20 Ω resolution), 10 ranges, Zero suppression: Less than 0.02 Ω,
Accuracy: ±1.5 % rdg. ±0.02 Ω
AC Current measurement 20.00 mA (0.01 mA resolution) to 60.0 A (0.1 A resolution), 5 ranges, Zero suppression: Less than 0.05 mA,
Accuracy: ±2.0 % rdg. ±0.05 mA (30 Hz to 400 Hz, True RMS), Crest factor 5.0 or less (for the 60 A range, 1.7 or less)
Max. allowable input 100 A AC continuous, AC 200 A for 2 minutes or shorter (at 50/60 Hz, requires derating at frequency)
Max. rated voltage to earth 600 V AC CAT IV
Memory function 2000 data
Alarm function For resistance measurement and current measurement, Beeps when measured value is less than or greater than threshold
Other functions Data hold, Backlight, Filter, Auto power save
Display Digital LCD, max. 2000 dgt., Display refresh rate: 500 ms (2 times/s)
Waterproof and dustproof IP40 (EN60529) with clamp sensor closed
Communication interface Model FT6381 only: Bluetooth® v2.1+EDR, Compatibility for Smartphone / Tablet, Displays measured values on the screen of an Android™ handset via Bluetooth®, Applicable OS: Android™ 2.1 or later
Power supply LR6 (AA) alkaline battery ×2, Max. rated power: 450 mVA, Continuous use : 35 hr (in-house testing conditions)
Core jaw dia. φ 32 mm (1.26 in)
Dimensions and mass 73 mm (2.87 in) W × 218 mm (8.58 in) H × 43 mm (1.69 in) D, 620 g (21.9 oz)
Accessories Carrying case ×1, Resistance check loop (1 Ω, 25 Ω) ×1, Strap ×1, LR06 (AA) alkaline battery ×2, Instruction manual ×1

Countries where the FT6381 wireless operation is supported

In Apr. 2014 Vietnam, Thailand, Indonesia
In June 2013 Mexico
In Jan. 2013 Singapore
In July 2012 Japan, the U.S., Canada, the EU.





Packaging & Shipping

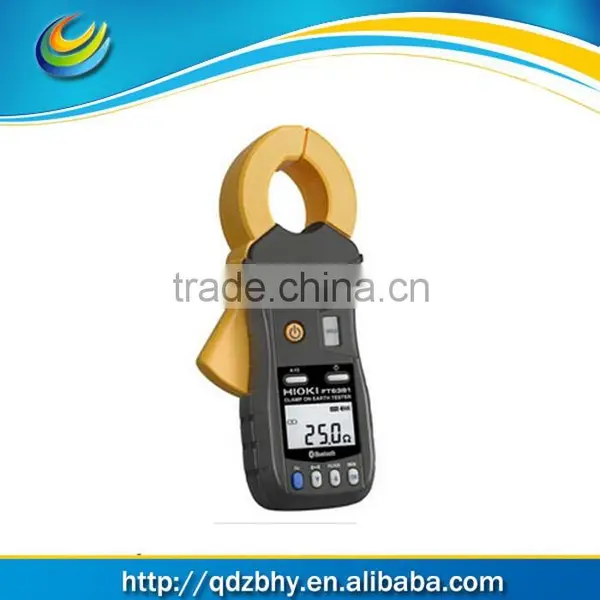

 Clamp Ground Resistance Tester FT6380
