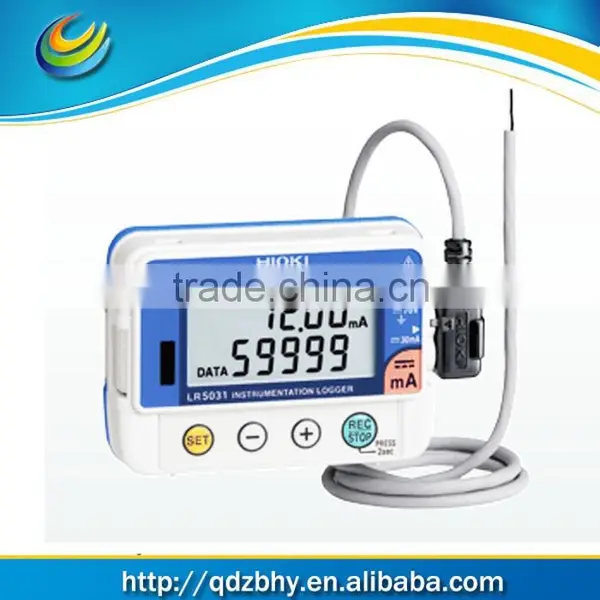

Help CenterIndustrial Logger LR5031
Related Products
Measure and record the control signals for 4-20mA
Easy setup, compact and lightweight mini size
The two items are displayed at a glance
When recording data can be transferred to a computer
Replaceable battery (within 30 seconds) at the time of the recording
Each channel of data can be recorded 60000
All changes can be recorded with statistics recording mode
Measurement data backup battery is low
In the event of misuse still reassuring measure (a record before backup data)
Basic parameters
Features such as a recording control signal 4-20mA
Instruments for measuring project / DC 0 ~ 20mA, 1ch
Measuring Range DC -30.00 ~ 30.00mA
Basic accuracy of ± 0.5% rdg. ± 5dgt. (23 ° C ± 5 ° C when)
Recording capacity of 60,000 data records instantaneous value
Statistics recorded 15,000 data
Recording interval 1-30 seconds, 1-60 minutes, 15 kinds of set
Recording mode records the instantaneous value: Record instantaneous value of each of the recording interval
Statistics record: every 1 second interval recording the instantaneous value of each recording interval / maximum / minimum / average
Recording method once: stop recording when there is no memory
Unlimited: When no memory overwrite saved after deleting old data
Began when the host key operation or an appointment
Host button to stop the operation or to make an appointment, or when there is no memory automatically stops (one-time recording)
Other functions are always one of the recorded data, will be recorded when the backup battery is low before the backup data and test conditions, test and replace batteries when clocks can keep 30 seconds
Interface communication converter or data collector and infrared communication
Waterproof and dustproof IP54 (waterproof)
Operating temperature and humidity -0 ° C ~ 50 ° C, 80% rh or less (non-condensing)
Power supply AA alkaline batteries (LR6) × 1
Battery life of about 2 years (1 minute recording intervals, the screen saving mode is turned on, the instantaneous value of the recording, 20 ° C)
About 2 months (recording interval of 1 second, the screen saving mode is turned off, the instantaneous value of the recording, 20 ° C)
The volume and weight of about 79W × 57H × 28Dmm, 105g
Accessory cable LR9081 × 1, × 1,5 bracket alkaline batteries (LR6) × 1, manual × 1, × 1 Operating Guide
