HIOKI IR4057-20 Digital Megger (HiTESTER 3454-11)

HIOKI IR4057-20 Digital Megger (HiTESTER 3454-11) thumbnail-1
HIOKI IR4057-20 Digital Megger (HiTESTER 3454-11) photo-1
US$ 666.67 - 666.67 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
HIOKI
Model Number:
IR4057-20
Contact Supplier Request Quote Chat Now
Qingdao Zhibohongyu Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name HIOKI
Model Number IR4057-20



Product Description

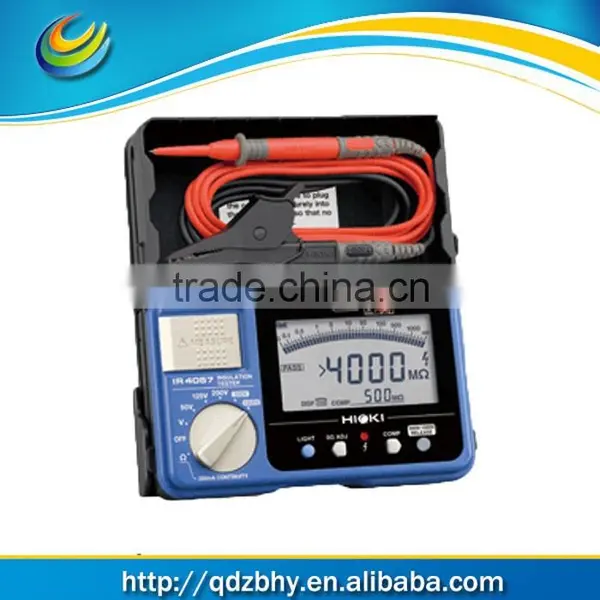

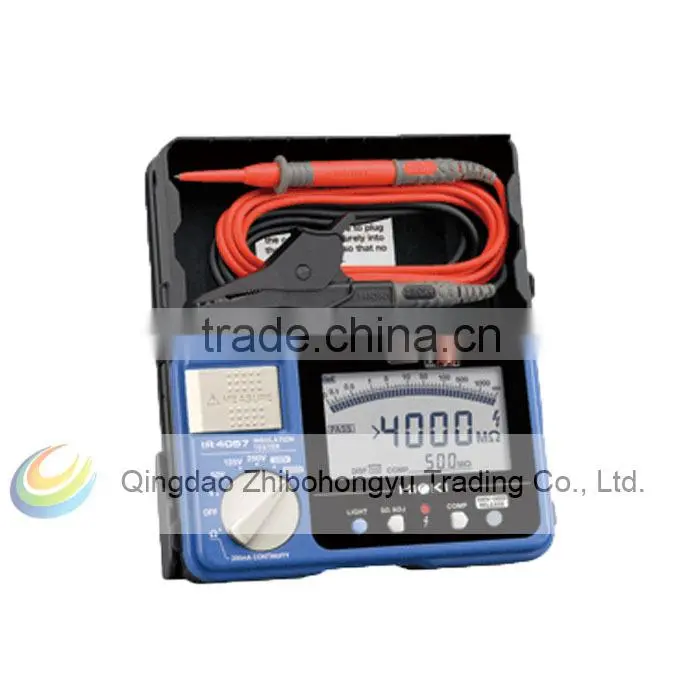

HIOKI IR4057-20 digital megger (HiTESTER 3454-11)



Hioki insulation resistance testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments. The IR4057-20 is a 5-range, 50V to 1000V digital insulation resistance tester with bargraph, and delivers efficient functions and features to help shorten work time associated with field insulation testing.


• 5-range testing voltage of 50 V/100 MΩ to 1000 V/4000 MΩ
• Stable & high-speed digital readings, 0.3 second response time for PASS/ FAIL decisions
• Drop proof onto concrete from 1m (3.28 feet)
• Bright LED, luminous LCD, test lead with bright LED lamp to illuminate near hand (Option L9788-11 or L9788-10)
• Continuity check via 200 mA testing
• Built in AC/DC voltage meter, useful for testing solar power generation systems and electric vehicles

Rated output voltage 50 VDC 125 VDC 250 VDC 500 VDC 1000 VDC
Effective maximum indicated value 100 MΩ 250 MΩ 500 MΩ 2000 MΩ 4000 MΩ
Accuracy 1st effective measuring range MΩ ±4 % rdg.
0.200 - 10.00		 ±4 % rdg.
0.200 - 25.0		 ±4 % rdg.
0.200 - 50.0		 ±4 % rdg.
0.200 - 500		 ±4 % rdg.
0.200 - 1000
Lower limit resistance 0.05 MΩ 0.125 MΩ 0.25 MΩ 0.5 MΩ 1 MΩ
Overload protection AC 600 V (10s) AC 1200 V (10s)
DC voltage measurement 4.2 V (0.001 V resolution) to 600 V (1 V resolution), 4 ranges,
Accuracy: ±1.3% rdg. ±4 dgt., Input resistance: 100 kΩ or higher
AC voltage measurement 420 V (0.1 V resolution) / 600 V (1 V resolution), 2 ranges, 50/60 Hz,
Accuracy: ±2.3% rdg. ±8 dgt., Input resistance: 100 kΩ or higher, Average rectifier
Low resistance measurement For checking the continuity of ground wiring, 10 Ω (0.01 Ω resolution) to 1000 Ω (1 Ω resolution), 3 ranges, Basic accuracy: ±3 % rdg. ±2 dgt., testing current 200 mA or more (at 6 Ω or less)
Display Semi-transmissive FSTN LCD with back lighting, bar-graph indicator
Response time Approx. 0.3 second for PASS/FAIL decision (at Hioki's conditions)
Other functions Indicate MΩ measurement value after a lapse of one minute, Live circuit indicator, Automatic electric discharge, Automatic DC/AC detection, Comparator, Drop proof, Auto power save
Power supply LR6 (AA) alkaline batteries × 4, Continuous use: 20 hours (at Hioki’s conditions)
Number of measurements: 1000 times (at 5 s ON, 25 s OFF cycle, insulation measurement of lower limit resistance value to maintain nominal output voltage)
Dimensions and mass 159 mm (6.26 in) W × 177 mm (6.97 in) H× 53 mm (2.09 in) D, 640 g (22.6 oz) (including batteries, excluding test leads)
Accessories Test Lead L9787 ×1, Neck strap ×1, Instruction manual ×1, LR6 (AA) alkaline batteries ×4



Notice:

The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.Thanks for your support!



Shipping:


We will ship all items within 1-3 working days upon receipt of payment,our goal is: ship it as fast as we can.

Standard Shipping: To USA,UK and Australia by ePacket,need 7-12 working days.

Expedited/Standard Int'l Shipping by Fedex,DHL,TNT and EMS courier: To USA,need 3-6 business days,To other countries,need 4-8 business days normally.But sometimes int'l delivery is highly depended on the courier company and local customs/duties.

Import duties and taxes are not included in the item price or shipping charges.These charges are the buyer responsibility.



Warranty&Reture Policy:


We encourage all customers to communicate with us through eBay messages. If you have any questions or comments whatsoever regarding our products or listing, we are waiting to hear from you

A 1 year warranty is offered for this product.If the product malfunctioned under proper usage per instructions

manual within the warranty period, please contact us to obtain shipping instructions and send it back at your shipping costs.

30 days evaluation and investigation takes placed after receiving your return item.A brand new replacement unit will be sent to you at our shipping costs if it meets our warranty requirements
