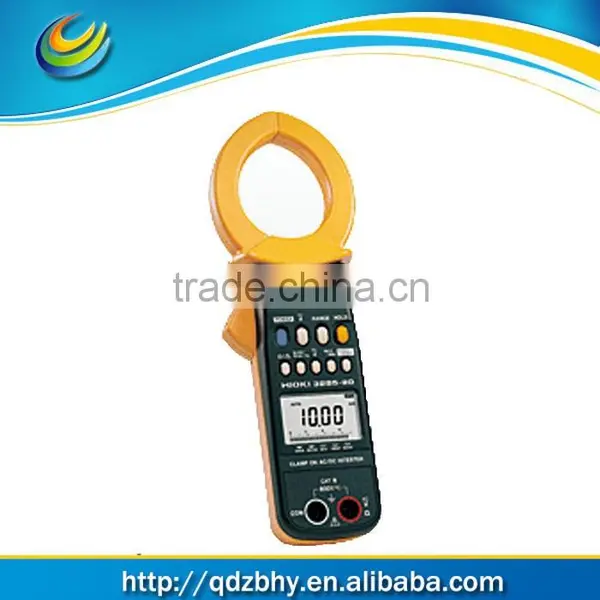

Hioki 3285-20 AC/DC Clamp

Name: Hioki 3285-20 AC/DC Clamp
Brand: Hioki
SKU: 100474199
Availability: InStock

US$ 985 - 985 MOQ: 1 Set

Key Specifications

Place of Origin:

China

Brand Name:

Hioki

Model Number:

3285-20

Qingdao Zhibohongyu Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name Hioki

Model Number 3285-20

Dimensions 62mmW*260mmH*39mmD

Weight 540g

Product Description

AC/DC current measuring up to 2000 A

Analog output for current measuring level, current measuring waveform, or frequency measuring level.
The peak hold function displays the crest value peak current up to 2840 A
The AC+DC mode enables measurement of the RMS value of full- or half-wave rectified waveforms
Model 3285-20 added Resistance, Continuity check function

Basic specifications (Accuracy guaranteed for 1 year, or opening and closing of the clamp sensor 10,000 times)

	3285	3285-20
DC Current	200.0/ 2000 A, Basic accuracy: ±1.3 % rdg. ±3 dgt.
AC Current	200.0/ 2000 A, (10 Hz to 1 kHz, True RMS), Basic accuracy: ±1.3 % rdg. ±3 dgt.
DC Voltage	30.00 V to 600 V, 3 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC Voltage	30.00 V to 600 V, 3 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. (10 to 1 kHz, True RMS)
Crest factor	2.5 and under (1.42 at 2000 A, 1.7 at 600 V)
Monitor, Analog output	DC, or AC 1 V/ f.s., Level output, Waveform output: DC to 15 kHz Band-width (±3dB)	None
Resistance, Continuity check	None	1000 Ω/ 10.00 kΩ, Basic accuracy: ±1.5 % rdg. ±5 dgt., Continuity: Beep sound at 30 Ω or less
Frequency	1.00 Hz to 1000 Hz, Basic accuracy: ±0.3 % rdg. ±1 dgt.
Other function	AC+DC mode, Maximum/ Minimum/ Average value record function, Data hold, Peak hold, Auto power off, Auto zero
Display	Display refresh rate: 4 times/s (at FAST), 1 time/3s (at SLOW), 4 times/s (bar graph)
Power supply	6F22 (Stacked manganese battery) ×1, Continuous use: 25 hours, or AC adapter 9445-02	6F22 (Stacked manganese battery) ×1, Continuous use: 20 hours, Cannot use with the AC adapter
Core jaw dia.	φ55 mm (2.17 in)
Dimensions, mass	62 mm (2.44 in) W × 260 mm (10.24 in) H × 39 mm (1.54 in) D, 540 g (19.0 oz)
Supplied accessories	TEST LEAD L9207-10 ×1, CARRYING CASE 9345 ×1, Hand strap ×1, 6F22 (Stacked manganese battery) ×1, Instruction Manual ×1
