Hioki 3288-20 AC/DC Clamp

Hioki 3288-20 AC/DC Clamp thumbnail-1
Hioki 3288-20 AC/DC Clamp photo-1
US$ 368.33 - 368.33 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Hioki
Model Number:
3288-20
Contact Supplier Request Quote Chat Now
Qingdao Zhibohongyu Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Hioki
Model Number 3288-20
Dimensions 57 mmW * 180 mm H *16 mmD
Weight 150 g



Product Description

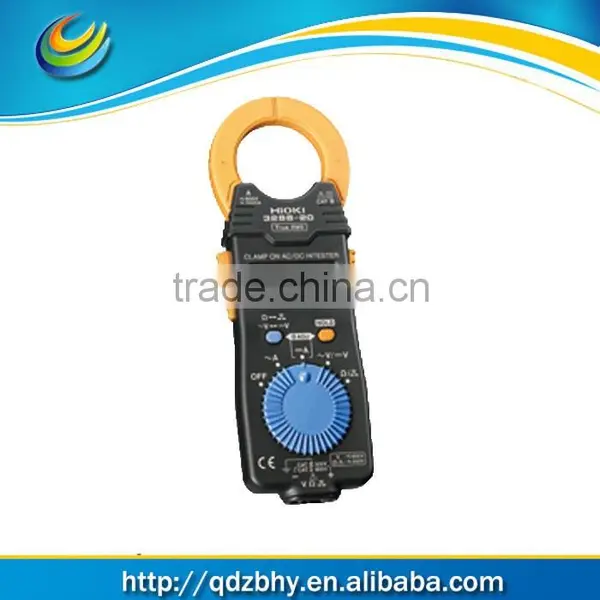

 Hioki 3288-20 AC/DC Clamp



(March 2010, Nagano, Japan) HIOKI E.E. CORPORATION has launched the CLAMP ON AC/DC HiTESTER 3288-20. This compact, low-profile, lightweight instrument features True RMS measurement, allowing it to accommodate distorted wave input. It can also measure large AC and DC currents of up to 1,000 A. The introduction expands HIOKI’s product line by bringing a True RMS model to the company’s 3280 Series, which has also been popular for its compact, low-profile, lightweight design.



Model 3288-20 Features

  1. True RMS measurement
    The 3288-20 features True RMS measurement, allowing it to accurately measure current input despite distortion caused by a poor power supply environment or other issues. This capability makes the instrument an excellent choice for use in inverter inspection and maintenance applications.
  2. Compact, low-profile, lightweight body with exceptional portability
    With dimensions of 57 (W) × 180 (H) × 16 (D) mm, a weight of just 150 g, and a low-profile cross-section, the 3288-20 is exceptionally portable.
  3. Measurement of large currents up to 1,000 A (AC/DC)
    Thanks to its ability to measure large currents of up to 1,000 A, the 3288-20 is well suited for use in applications such as inspection and maintenance of uninterruptible power supply (UPS) emergency batteries and train motors. HIOKI expects increasing demand for the instrument in fields such as inspections and recharge/discharge testing of rapid chargers for electric vehicles (EVs).



Principle Applications

Inspections and maintenance of inverters, solar power and wind power generating equipment, rapid chargers for EVs, aircraft, and ships






Principle Specifications

DC current 100.0/1,000 A, 2 ranges
Basic accuracy: ±1.5% rdg., ±5 dgt.
AC current 100.0/1,000 A, 2 ranges
Basic accuracy: ±1.5% rdg., ±5 dgt
DC voltage 420.0m/4.200/42.00/420.0/600 V, 5 ranges
Basic accuracy: ±1.3% rdg., ±4 dgt.
Maximum conductor diameter 35 mm
Dimensions and weight 57 (W) × 180 (H) × 16 (D) mm, 150 g
Continuous operating time 35 h
Resistance 420.0/4.200k/42.00k/420.0k/4.200M/42.00MΩ, 6 ranges
Basic accuracy: ±2% rdg., ±4 dgt.
Other functions Buzzer at continuity of (50Ω ±40Ω) or less, data hold, auto power save, auto zeroing (DC A)
Display LCD, max. 4,199 dgt.; display refresh rate: 2.5 times/sec
Power supply Lithium button cell (CR2032) × 1
Accessories TEST LEAD 9208 × 1, PORTABLE CASE 9398 × 1
