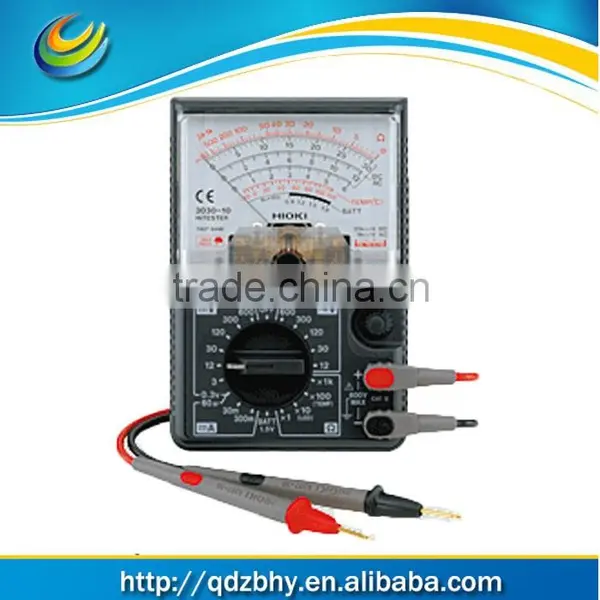

Hioki 3030-10 Analog Multimeter Hitester

Name: Hioki 3030-10 Analog Multimeter Hitester
Brand: Hioki
SKU: 100474153
Availability: InStock

US$ 123.33 - 123.33 MOQ: 1 Set

Key Specifications

Place of Origin:

China

Brand Name:

Hioki

Model Number:

3030-10

Qingdao Zhibohongyu Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name Hioki

Model Number 3030-10

Dimensions 95 mmW * 141 mmH *39 mmD

Product Description

Basic tester with improved safety features (20kΩ/V)

Drop proof design withstands dropping onto a concrete floor from a height of 1 meter
LED check, Battery check, or Temperature measurement support (with optional probes)

Basic specifications (Accuracy guaranteed for 1 year)

DC Voltage range	0.3 V (16.7 k-ohm/V), 3/12/30/120/300/600 V (20 k-ohm/V) Accuracy: ±2.5 % f.s. Max. rated voltage: 600 V
AC Voltage range	12 V (9 k-ohm/V) Accuracy: ±4 % f.s. 30/120/300/600 V (9 k-ohm/V) Accuracy: ±2.5 % f.s. Average rectifier effective value Max. rated voltage: 600 V
DC Current range	60 µA/30 m/300 mA (300 mV internal voltage drop) Accuracy: ±3 % f.s.
Resistance range	0 to 3 k-ohm (center scale 30 ohm), R × 1, R × 10, R × 100, R × 1 k Accuracy: ±3 % of scale length
Battery check	0.9 to 1.8 V, load resistance 10 ohm, Accuracy: ±6 % f.s.
Temperature scale	-20 to 150°C, Use with R ×100 range (Thermister Temperature Probe 9021-01 is necessary, sold separately), Accuracy: ±3 % of scale length
Power supply	For resistance measurement range, R6P (AA) × 2 batteries
Dimensions, mass	95 mm(3.74 in)W × 141 mm(5.55 in)H × 39 mm(1.54 in)D, 280 g (9.9 oz)
Supplied accessories	TEST LEAD×1, Spare fuse×1, Manganese batteries (R6P)×2, Instruction Manual×1, CARRYING CASE 9390×1
