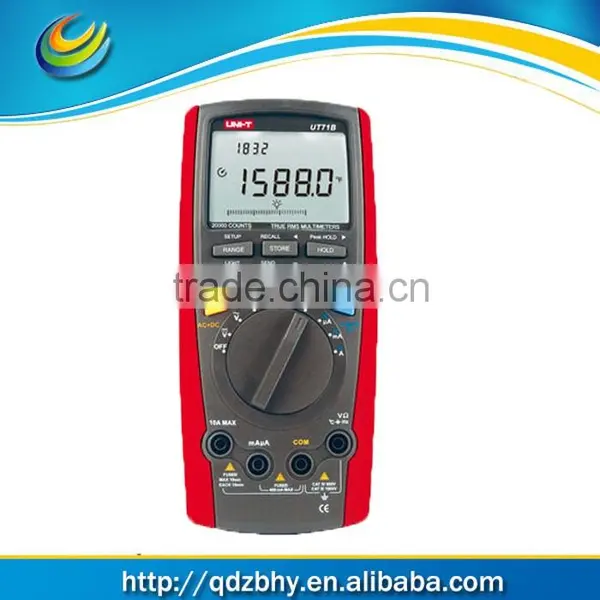

UNI-T UT71B Intelligent Digital Multimeters

Name: UNI-T UT71B Intelligent Digital Multimeters
Brand: UNI-T
SKU: 100473813

US$ 119 - 140 MOQ: 1 Set

Key Specifications

Place of Origin:

China

Brand Name:

UNI-T

Model Number:

UT71B

Qingdao Zhibohongyu Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name UNI-T

Model Number UT71B

Operating Temperature -40°C~1000°C

Dimensions 200 x 93 x 40mm

Product Description

SPECIFICATIONS

Basic Functions	Range	Best Accuracy
DC Voltage	200mV/2V/20V/200V/1000V	(0.05%+5)
AC Voltage	2V/20V/200V/1000V	(0.6%+40)
AC Bandwidth	100KHz
DC Current	200µA/2000µA/20A/200mA/10A	(0.15%+20)
AC Current	200µA/2000µA/20A/200mA/10A	(0.8%+15)
Resistance	200W/2kW/20kW/200kW/2MW/20MW	(0.4%+20)
Capacitance	20nF/200nF/2µF/20µF/200µF/2mF/20mF	(1.2%+20)
Temperature(°C)	-40°C~1000°C	(1%+30)
Temperature(°F)	-40°F~1832°F	(1.5%+50)
Frequency	20Hz/200Hz/2kHz/20kHz/200KHz/2MHz/20MHz/200MHz	(0.1%+15)
Duty Cycle	10%~90%	(1%+30)
Special Functions
Fused 10A Range
Auto Ranging
Current Measurement Alarm
Function Set Up
Votage & Current : AC + DC Measurement
Data Logging		100
Data Recall
Diode
Continuity Buzzer
True RMS
Peak Hold
Max/Min Mode
Relative Mode
Data Hold
USB
Double Display Backlight
Full lcon Disply
Sleep Mode
Low Battery Display
Input Impedance for DC Voltage Measurement	DC 200mV : Around 2.5GW All Other Ranges : 10MW
Max. Display	20000
Analogue Bar Graph

GENERAL CHARACTERISTICS

Power	9V Battery (6F22)
LCD Size	73 x 50mm
Product Colour	Red and Grey
Product Net Weight	384g
Product Size	200 x 93 x 40mm
Standard Accessories	Test Lead, Battery, English Manual, Point Contact Temperature Probe, Alligator Clip, Test Clip, USB Interface Cable, Software, Carrying Bag
Standard Individual Packing	Gift Box
Standard Quantity Per Carton	20pcs
Standard Carton Measurement	530 x 360 x 385mm (0.073 CBM Per Standard Carton)
Standard Carton Gross Weight	22kg
