Home > Instruments & Meters > Electronic Instrument > Clamp Meter > UT232 Digital Power Clamp Meters UT232

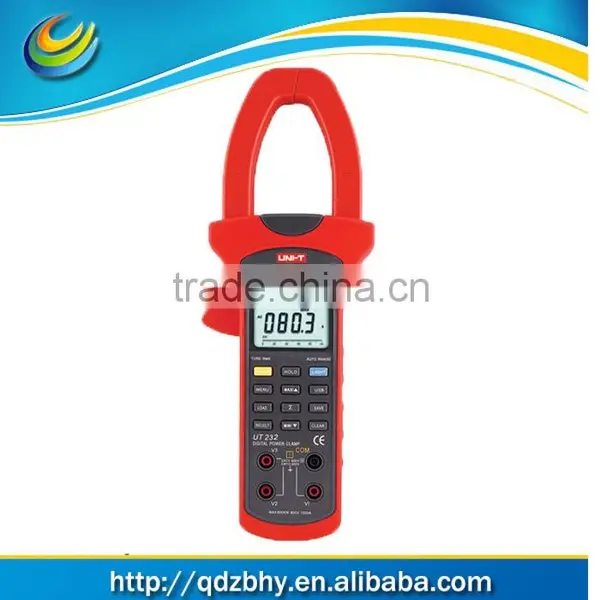

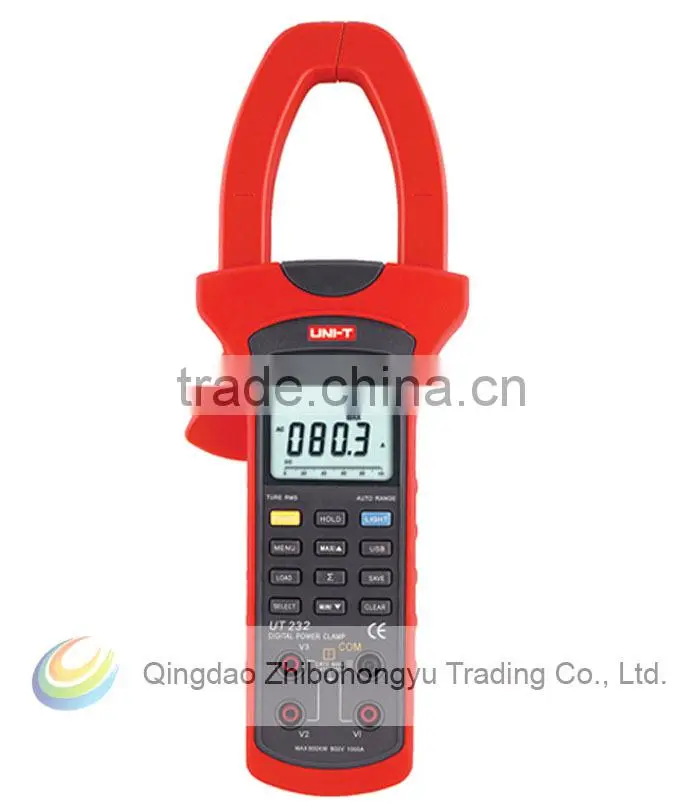

UT232 Digital Power Clamp Meters UT232
US$ 200 - 300
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
UNI-T
Model Number:
UT232
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fluke 18B+ LED Test Digital Multimeter AC/DC OhmUS$ 138 - 150MOQ: 1 Set -
Testo 810 Pocket Pro IR/Ambient Thermometer Air&Surface Temperature MeterUS$ 120 - 190MOQ: 1 Set
-
SM207 FORMALDEHYDE (CH2O) TESTER Meter Gas Detector Gas Leak Tester MoniterUS$ 129 - 140MOQ: 1 Set
-
Fluke 62 MAX Handheld Dual Laser IR Infrared Thermometer Gun -30 to 650US$ 120 - 190MOQ: 1 Set
-
UNI-T UT71B Intelligent Digital MultimetersUS$ 119 - 140MOQ: 1 Set
Place of Origin
China
Brand Name
UNI-T
Model Number
UT232
Measuring Current Range
40A / 100A / 400A / 1000A(2%+ 5)
Measuring Voltage Range
15V/100V/300V/600V (1.2%+5)
Dimensions
303 x 112 x 39mm
Weight
601g
Product Description
SPECIFICATIONS
| Basic Functions | Range | Best Accuracy | |||
|---|---|---|---|---|---|
| AC Voltage | 15V/100V/300V/600V | (1.2%+5) | |||
| AC Current | 40A/100A/400A/1000A | (2%+5) | |||
| Active Power | 0.01kW-600kW | (3%+5) | |||
| Apparent Power | 0.01kVA-600kVA | (3%+5) | |||
| Reactive Power | 0.01kVAr-600kVAr | (4%+5) | |||
| Power Factor | 0.3~1(Capacitive or Inductive ) | (0.02+2) | |||
| Phase Angle | 0°C~360°C | 1° | |||
| Frequency | 20Hz-500Hz | ||||
| Active Energy | 1~9999 kWh | (3%+2) | |||
| Special Functions | |||||
| Auto Ranging | |||||
| Single-phase 2-wire | |||||
| 3-phase 3-wire | |||||
| 3-phase 4-wire | |||||
| True RMS | AC Voltage or Current | ||||
| Calibration Feature | |||||
| Data Logging | 99 | ||||
| Data Recall | |||||
| Max/Min Mode | |||||
| Data Hold | |||||
| USB | |||||
| Display Backlight | |||||
| Full Icon Display | |||||
| Sleep Mode | |||||
| Low Battery Display | |||||
Input Impedance for AC Voltage Measurement |
≥10MW | ||||
| Max. Display | 9999 | ||||
| Analogue Bar Graph | |||||
GENERAL CHARACTERISTICS
| Power | 1.5V Battery (LR6) x 4 |
| LCD Size | 46 x 42mm |
| Product Color | Red and Grey |
| Product Net Weight | 601g |
| Product Size | 303 x 112 x 39mm |
| Standard Accessories | 4pcs of Test Lead, Battery, English Manual, 4pcs of Alligator Clips, USB Interface Cable, Software, Tool Box |
| Standard Individual Packing | Gift Box |
| Standard Quantity Per Carton | 5pcs |
| Standard Carton Measurement | 480 x 372 x 315 mm (0.056 CBM Per Standard Carton) |
| Standard Carton Gross Weight | 12kg |
