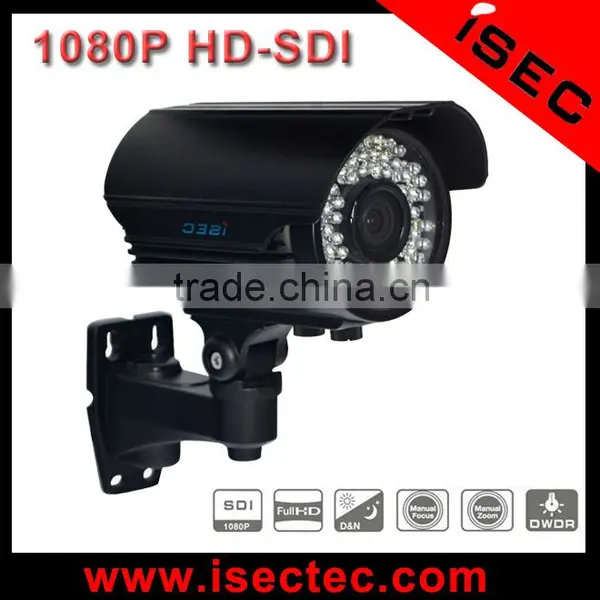

Waterproof 60m IR Full 1080p HD SDI Megapixel Cctv Camera

Waterproof 60m IR Full 1080p HD SDI Megapixel Cctv Camera thumbnail-1
Waterproof 60m IR Full 1080p HD SDI Megapixel Cctv Camera photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ISEC / OEM / Neutral
Model Number:
IC-LBMW60-CSD
Contact Supplier Request Quote Chat Now
Shenzhen Isec Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ISEC / OEM / Neutral
Model Number IC-LBMW60-CSD
Type Analog Camera
Style Bullet Camera
Sensor CMOS
Technology Other, HD-SDI 1080P
Special Features Waterproof / Weatherproof

Specifications

Waterproof 60m IR full 1080p HD SDI megapixel cctv camera
WDR,GC,DSS,BLC,ACE
3DNR,Demist,Digital Zoom
IP66, 60m IR
2.8-12mm

Waterproof 60m IR full 1080p HD SDI megapixel cctv camera



Waterproof 60m IR full 1080p HD SDI megapixel cctv camera



Main Features



♦  hd sdi Camera

♦  Built in OSD, controlled by cable.

♦  High Definition Mega Pixels HD-SDI Camera
♦  1/3''Progressive scan CMOS Sensor.

♦  HD-SDI / Analog Output, real time transmission, work simultanous.

♦  WDR, AGC, DSS, BLC, ACE
♦  3DNR, Demist, Digital Zoom

♦  IP66, Fully weatherproof and dustproof, perfect choose of hd sdi camera.
♦  Built-in 72pcs infrared LEDs, 60m IR distance night vision.

♦  2.8-12mm 2MP Lens (6-15/9-22mm lens optional).

♦  CE/FCC/RoHS certificates.

♦  2 years warranty.

♦  Black case.

♦  Easy installation, Aluminum Alloy Housing.

♦  High Quality Cctv Cameras' manufacturer and supplier





Detail Pictures



 Waterproof 60m IR full 1080p HD SDI megapixel cctv camera


Specification




Model No IC-LBMW60-CSD
Imaging Sensor 1/3'' Panasonic CMOS(MN34041PL)
Total Pixels 2010(H) x 1108(V) = 2,227,080 (pixel)
Scanning system Progressive Scan
Resolution 1920x1080p
Min. illumination Color : 1.0 lux , BW : 0.5lux
S/N Ratio More than 50dB (AGC off)
Video Output HD-SDI / Analog
Lens 2.8-12mm 2MP lens, 6-15/9-22mm 2MP lens optional
Brightness 0 ~ 20
Shutter AUTO / MANUAL
AGC 0 ~ 20
Backlight OFF / HLC / BLC / WDR
Day & Night AUTO / COLOR / B&W / EXT
White BAL AUTO / AUTOext / PRESET / MANUAL
DNR OFF / LOW / MIDDLE / HIGH
Sharpness 0 ~ 10
Mirror ON / OFF
FLIP ON / OFF
D-WDR OFF / LOW / MIDDLE / HIGH
Frame Rate 25 FPS / 30 FPS
IR LED 72pcs Ø5mm IR LEDs
IR distance 60 meters
Power DC12V, 800mA
Storage Temperature -20°C ~ +60°C (Humidity : 0%RH ~ 90%RH)
Waterproof IP66
Braket bottom screws for zoom/focus adjustment, cable is built in bracket
Dimension 161(W) x94(H) x102(D)mm
Case Color gray case
weigt 1.5kg







Package





Lens and View Angle







Application
