Specifications
-hd-sdi camera-Alarm Sensor Infrared Camera!
-2Y Warranty(FCC/CE/ROHS)!
-100% CCTV manufacturer!
-OEM/ODM!

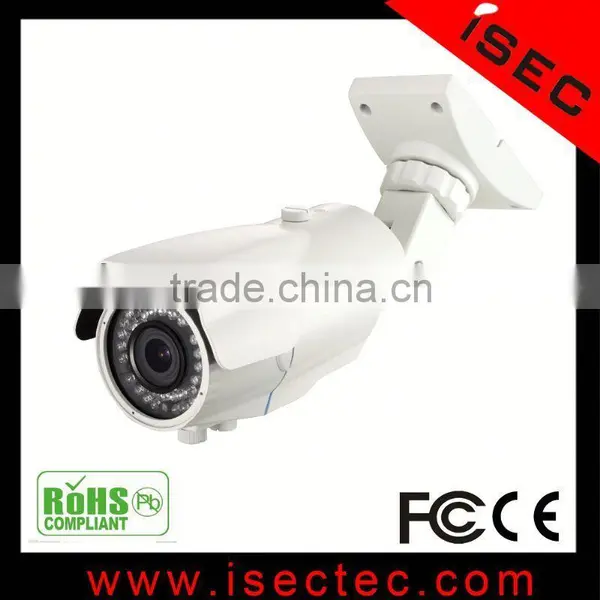

SONY 1080P CMOS dome/bullet hd-sdi camera
Features:
> 1080P/720P HD-SDI camera
> 25FPS(PAL)/30FPS(NTSC) for 1080P, 50FPS(PAL)/60FPS(NTSC) for 720P
> 2.8-12MM 3.0megapixel manual varifocal lens, 6-15, 9-22mm option
> HD-SDI and analog signal input, easy to connect to CRT monitor or CCTV camera tester while installing camera.
> 1080P with OSD, 720P without OSD
> WDR, 3DNR, HLC, BLC, Sense up (DSS), Defog, Motion Detection etc.
> 42pcs Ø5mm IR LED, about 40 meters IR distance
> White case
Specifications:
Model NO. |
IC-LBMW40-II8H |
IC-LBMW40-II8 |
IC-LBMW40-II7 |
VIDEO | |||
Image Device |
1/3” Panasonic MN34041PL CMOS |
1/3" Sony IMX222 CMOS |
1/2.9" Pixelplus PO3100K CMOS |
DSP |
Eyenix EN773A |
Eyenix EN3131A |
|
TV System |
1080P 25(PAL)/30(NTSC) |
720P 25(PAL)/30(NTSC) |
|
Total Pixels |
2010(H) * 1108(V) |
2000(H) * 1241(V) |
1350(H)*760(V) |
Effective Pixels |
1944(H)*1092(V) |
1984(H) * 1105(V) |
1312(H)*740(V) |
Scanning System |
2:1 Interlace |
||
Synchronization |
Internal |
||
Image Resolution |
1920*1080(1080P) |
1280*720(720P) |
|
Frame rate |
25FPS(PAL) / 30FPS(NTSC) |
50FPS(PAL) / 60FPS(NTSC) |
|
Min. Illumination |
Color: 0.1lux F1.2; B/W: 0 Lux(IR ON) |
Color: 1.0lux F1.2; B/W: 0 Lux(IR ON) |
|
S/N Ratio |
>50dB |
||
Video Output |
HD-SDI:SMA connector ,CVBS(Analog Signal):BNC connecor |
||
LENS | |||
Focal Length |
2.8-12mm manual zoom lens 6-15, 9-22mm lens optional |
||
IR-CUT |
3 Megapixel ICR |
||
OPERATIONAL | |||
Day & Night |
AUTO /COLOR /B/W /EXT |
Auto |
|
WDR |
Low / Middle / High |
NA |
|
Noise Reduction(3DNR) |
low / middle / high / OFF |
NA |
|
HLC |
0~20 Adjustable |
NA |
|
BLC |
ON/OFF |
Auto |
|
Sense Up |
1X~8X Adjustable |
NA |
|
Auto Gain Control |
0~20 Adjustable |
Auto |
|
Defog |
ON/OFF |
NA |
|
Motion Dectection |
ON(Motion area and sensitivity can be settled)/OFF |
NA |
|
Shading |
ON/OFF |
NA |
|
Pricacy Mask |
32 Masks |
NA |
|
Electronic Shutter Speed |
PAL:1/25 ~ 1/60,000sec; NTSC:1/30 ~ 1/60,000sec |
Auto |
|
White Balance |
Auto／Low／Middle / High / off |
Auto |
|
ACE |
ON/OFF |
NA |
|
Focus ADJ |
ON/OFF |
NA |
|
Brightness |
0~20 Adjustable |
NA |
|
Gamma Characteristic |
0.4 / 0.5 / 0.55 / 0.6 / 0.65 |
0.45 |
|
Mirror |
ON/OFF |
NA |
|
Flip |
ON/OFF |
NA |
|
Digital Zoom |
1X~8X Adjustable |
NA |
|
Sharpness |
0~10 Adjustable |
NA |
|
OSD Language |
English, Simple Chinese, Spanish, Deutsch, French, Traditional Chinese, Korean, Japanese, Nederland, Italian |
NA |
|
General | |||
Infrared LED |
42pcs Ø5mm IR LEDs |
||
IR Distance |
about 40 Meters |
||
Infrared Spectrum |
850nm |
||
Input Current |
400mA |
||
Adapter Requirement |
DC 12V, 1A |
||
Water-proof |
IP66 |
||
MECHANICAL | |||
Color |
White case |
||
Bracket |
/ |
||
Dimensions |
162(W) x87(H) x84(D)mm |
||
Net Weight |
1.3kg/pcs |
||
TRANSMISSION DISDANCE | |||
Professinoal HD-SDI Coaxial Cable |
about 150 Meters |
||
ENVIRONMENTAL | |||
Operation Temperature |
-10°C~ +50°C |
||
Storage Temperature |
-20°C~ +60°C |
||
