Home > Auto, Motorcycle Parts & Accessories > Car Electronics > Car Charger > 90W Universal Laptop Charger

90W Universal Laptop Charger

90W Universal Laptop Charger thumbnail-1
90W Universal Laptop Charger photo-1
US$ 1 - 10 MOQ: 100 Pints
Key Specifications
Get Latest Price
Brand Name:
HYLOOK
Model Number:
HL-UND90
Use:
Laptop
Contact Supplier Request Quote Chat Now
Shenzhen Hylook Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HYLOOK
Model Number HL-UND90
Use Laptop
Type Electric
Place of Origin Guangdong, China

Specifications

Universal laptop charger
1.Output:DC 12-24V 90W max
2.Input:AC110--240V or DC11-16V
3.MOQ:100Pcs
4.Warranty:1 year

Universal Laptop Charger 90W







Product Description

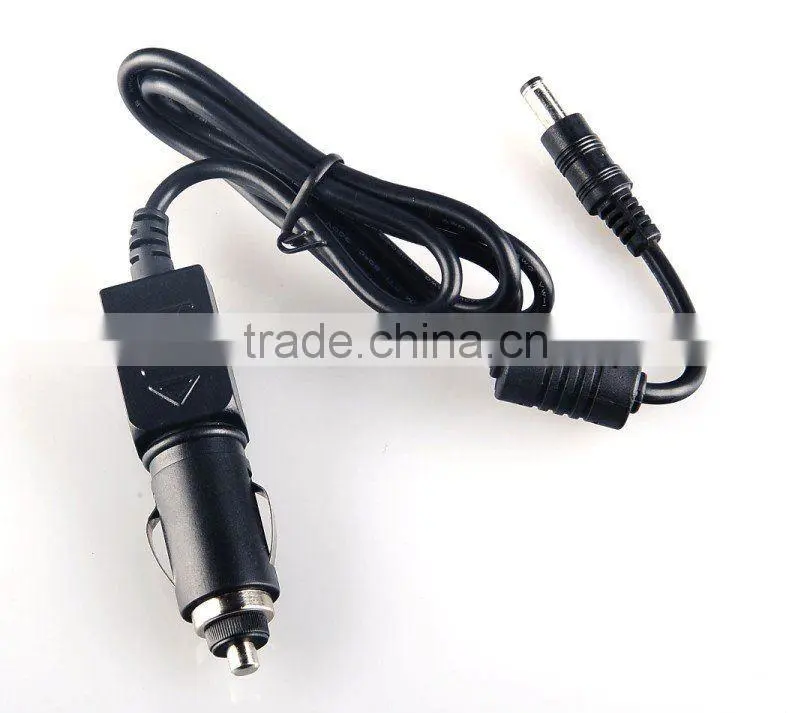

90W Universal laptop charger for both home car use

Factory supply

Output:DC 12-24V

one year warranty




 specification:

  • Input Voltage: 100-260V (input frequency: 50-60Hz)  or DC 12V
  • Input rated current:0.1-- 1.0 Amp
  • Output voltages: DC12-24V
  • 12V, 15V ,16V, 18V, 19V, 20V @4.5Amp24V @3.5Amp
  • Output Power: 90W Efficiency: >80% (TYP)
  • Line regulation: +- 5%
  • Condition: Brand new

General features:

  • Works with Most Notebook Computers
  • Stabilized output, low ripple and low interference
  • Adjustable output voltage
  • High efficiency and low energy consumption
  • Power LED monitor







Packaging & Shipping









Packing:



  •  Fittings: 8 DC pins and power wire
  • Gift package box
  • Packing Quantity: 50pcs/carton
  • Dimension: 73*33*48cm
  • G.W.: 28kgs
  • N.W.: 29kgs



DC plugs:



Universal distribution DC plug spec
  Series Num Outside path Inside path length
  1 6 3.2/1.4 13
  2 6.3 3 13
  3 5.5 3 12
  4 5.5 2.1 12
  5 5.5 1.7 12
  6 4.8 1.7 11
  7 4 1.7 11
  8 3.5 1.35 11
DC bent tips connector
A 6.0*4.0 Fujitsu, Sony, Panasonic etc
B 6.3*3.0mm Toshiba  15V/3A,15V/4A etc., NEC etc
C 5..5*3.0mm Samsung 19V/3.16A,19V/3.75A;19V/4.22A,
D 5.5*2.1mm Acer, Lieton ,NEC, Compaq etc
E 5.5*1.7mm Acer, Toshiba etc
F 4.8*1.7 Compaq/HP 18.5V, Delta,Asus, NEC 19V
G 4.0*1.7mm Samsung Q20
H 3.5*1.35mm For Sharp




Protection:


   * Overload protection


    * Short circuit protection


    * Over temperature protection


    * Saving Power

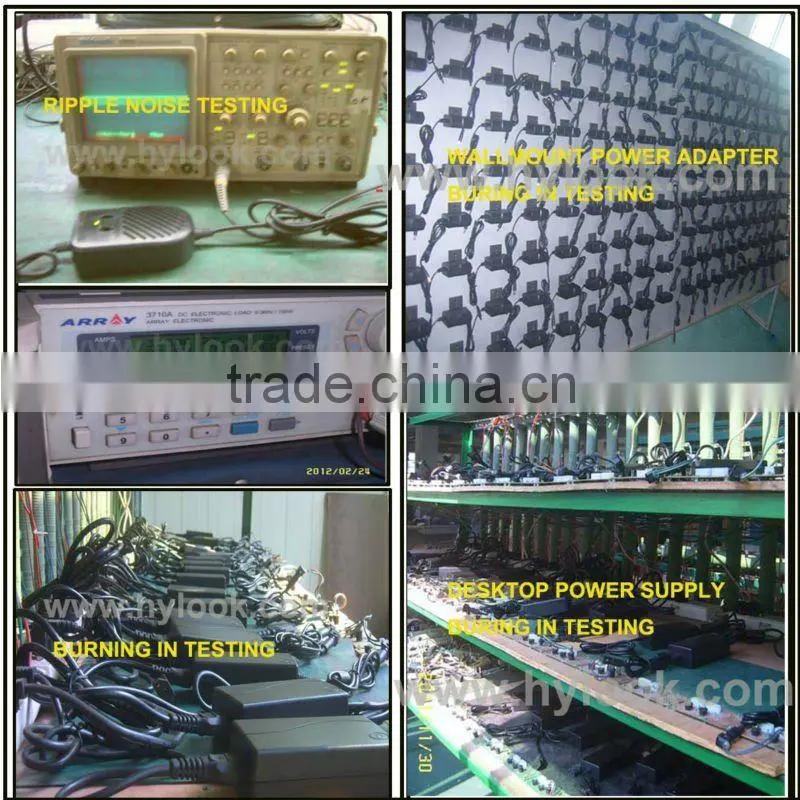

    * 100% HI-POT tested


    * 100% cycling BURN-IN 3 hours to control defective to lowest

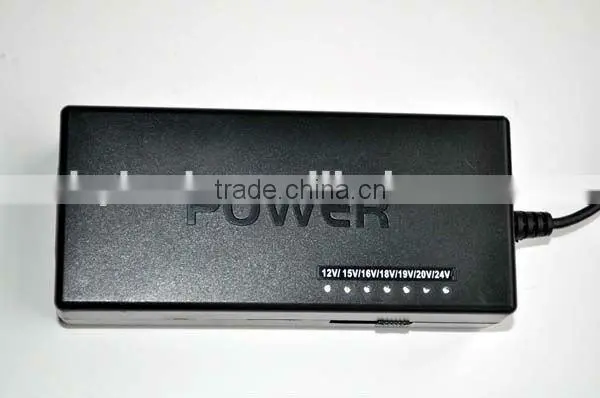

90W Universal Laptop Charger


    * LED power-on indicator for universal laptop charger

90W Universal Laptop Charger



Universal laptop charger Compatible laptop models:


Acer (Aspire, Tablet, Travelmate, AcerNote, Anywhere, Extensa, AcerNoteLight)

AMS Tech (Rodeo, TravelPro, AVERATEC)

Compaq (Armada, LTE, Evo, Presario, Prosignia, Tablet)

Fujitsu ( LifeBook models)

Gateway

HP (Pavilion, Omnibook)

IBM ( T series ThinkPads)

Lenovo

NEC (LaVie C, LC series, PC Series, LT series)

Versa (VersaNote, VersaPro)

Panasonic (Toughbook models)

Sharp

Sony Picturebook


SONY VIAO

Sotec

Toshiba (Satellite, Dynabook Satellite Pro, Dynabook Satellite, Libretto, Portege, SatellitePro, Tecra)

Winbook



Photos:

90W Universal Laptop Charger


90W Universal Laptop Charger90W Universal Laptop Charger90W Universal Laptop Charger

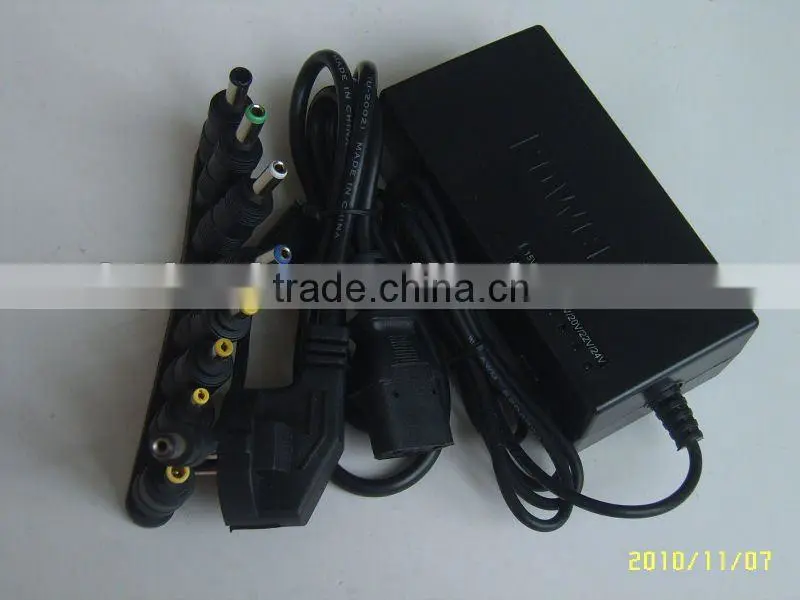

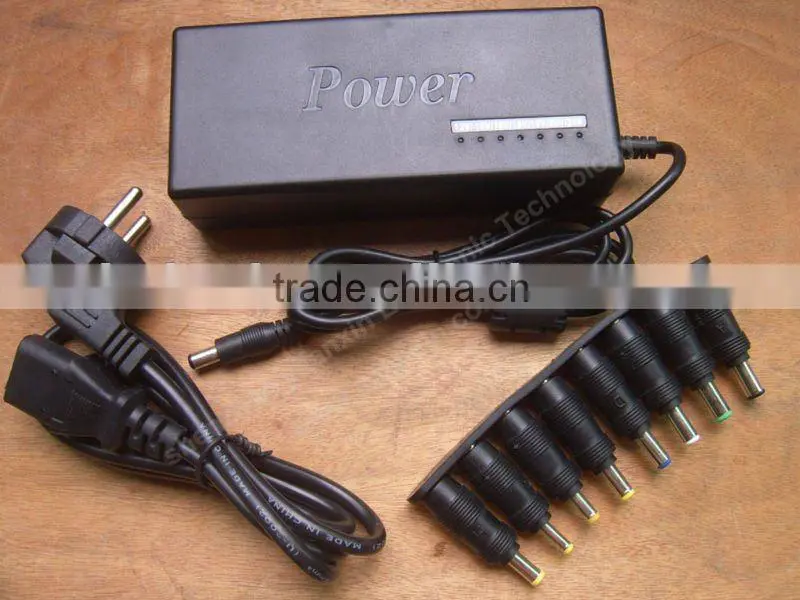

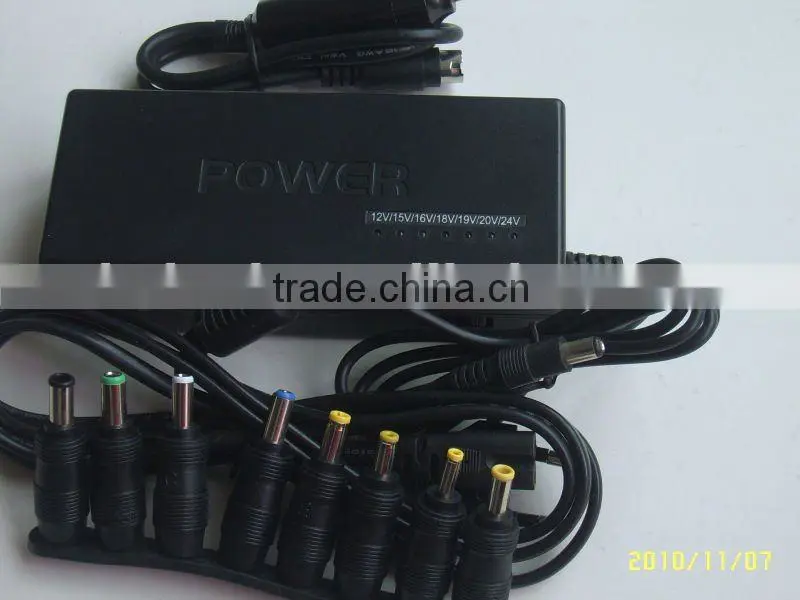

Item includes:





  • 1x Universal laptop charger
  • 8x tip connector
  • 1x power cord







Company Information









About us:

l HYLOOK produce all different kinds of power adapter,cable and batteries

 for pos terminal,LCD monitors ,Laptop ,Pos printer,musical instrument and

all kinds of electronic equipment



l OEM and ODM service are available

l Every pieces of products 100% testing before sending out ,control the defective rate to the lowest

l Fast delivery ,very good price



Advantage:

  • HYLOOK has the widest range of accessories compatible with all major brands of POS (EPOS) market (Verifone, Ingenico, Hypercom, Lipman and others).
  • These products represent essential accessories for continuous operation of a network of POS and maintain asset value minimizing unused equipment.
  • HYLOOK has compatible power supplies for all POS models with electrical characteristics, specific connectors and certifications that are required in each country.
  • HYLOOK develops data cables to connect POS to PCs, to  PinPads or any other peripheral devices as barcode readers. MIFARE reader etc.
  • HYLOOK offers power cords and data cables from the most popular models in the market with the highest levels of technical quality .Each cable requires specific knowledge of pin out of each POS models of different brands.

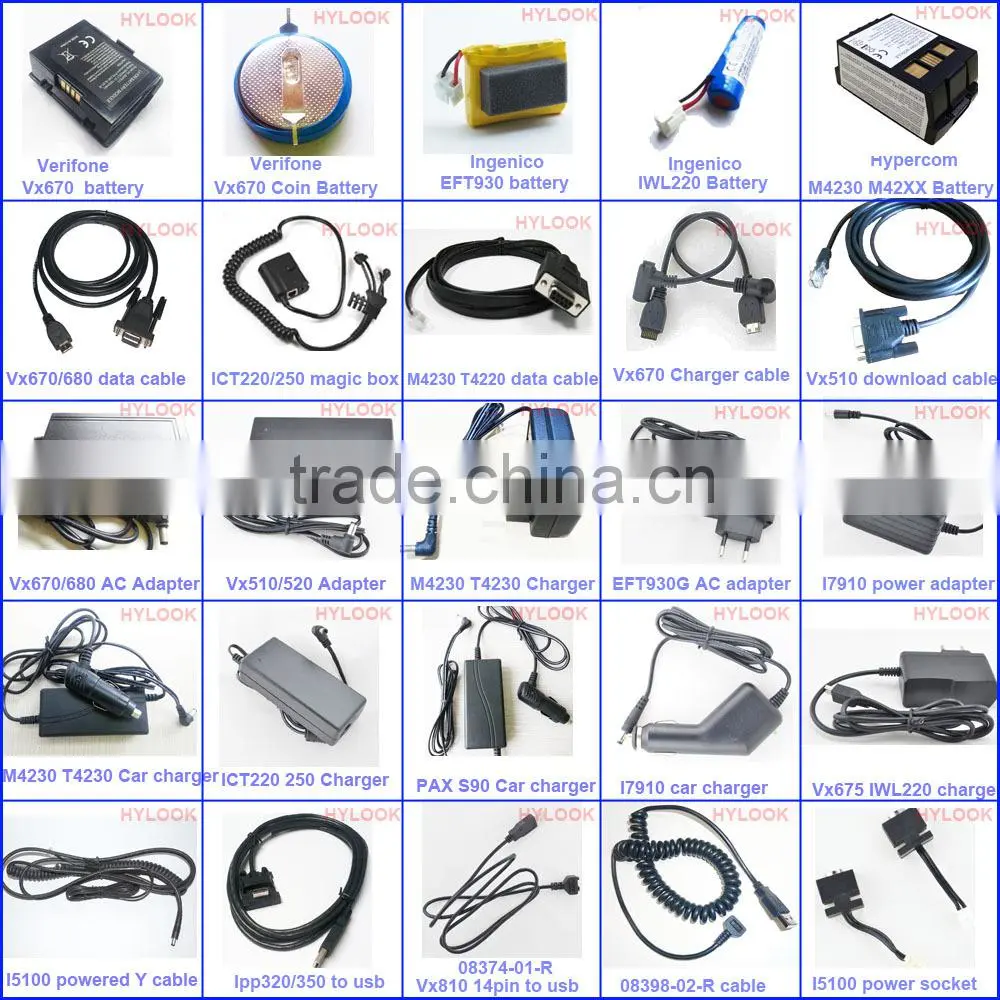

Pos terminal accessories we also produce  :

  • Ingeco ICT220/250 Magic box
  • Verifone Vx810 Vx820 to vx510 14 header cable
  • Verifone CBL 268-004-01-C   Verifone vx670/vx680 charger cable
  • Verifone 08369-01-R  Programming cable for verifone vx670/vx680
  • Verifone 24016-01-R Li-ion Battery for Verifone vx670/Vx680/Vx520 GPRS
  • Verifone Vx670 Vx680 power supply
  • Verifone vx510 /vx520 power supply
  • Ingenico EFT930 power supply
  • Ingenico IWL220/IWL250 ac adapter
  • Ingenico ICT220/ICT250 power adapter
  • Hypercom M4230 power adapter/car charger
  • Hypercom M42XX T42XX replacement Li-ion battery
  • Other items coming soon or you could customize
  • .........................................

Contact us

If you want to get our catalogue or more details about our products,please feel free to contact with us .

Skype:fysummy  Trademanager :cn1001346229
