Help Center96W Universal ac Adapter for Laptop and Lcd Monitor
Related Products
Specifications
96W universal ac adapter for laptop and lcd monitor1.MOQ:100 pieces
2.Output:DC15V/16V/18V/19V/20V/22V/24V
3.Good price

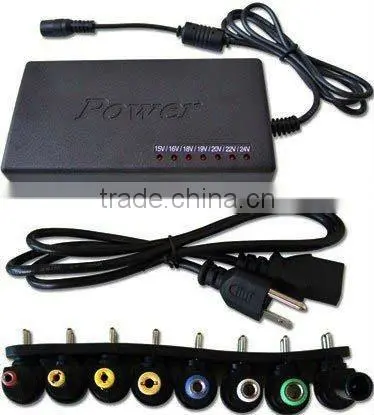

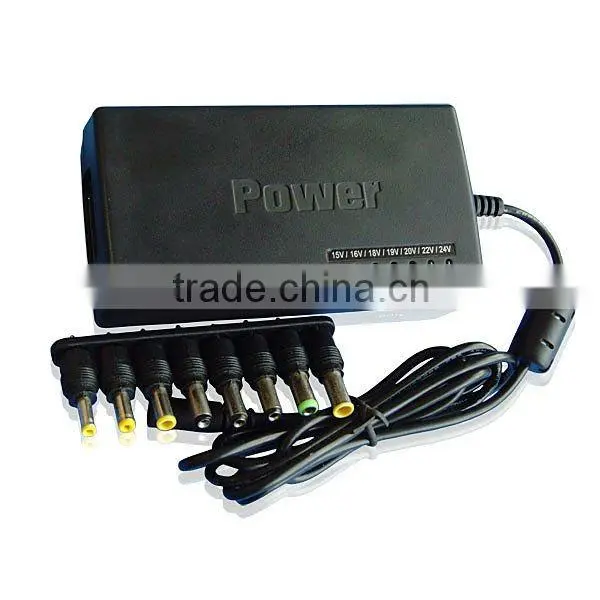

96W universal ac adapter for laptop and lcd monitor
Specification
-
General Description:
This model is laptop ac adapter , operation at input AC voltage 95V to 265V and output DC voltage of 15V-20V/4.5A max 22-24V /4A max ,with protection functions ,use of the notebook computer power supply.

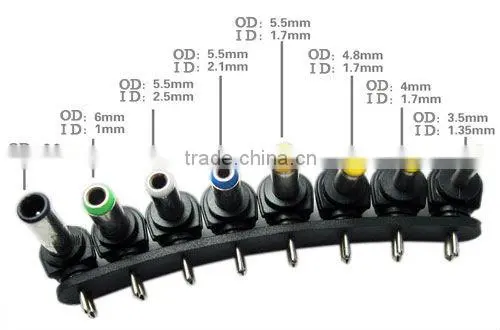

8 Tips:
Tip A-6.3mm*3.0mm
Tip B-6.0mm*1.0mm
Tip C-5.5mm*2.5mm
Tip D-5.5mm*2.1mm
Tip E-5.5mm*1.7mm
Tip F-4.8mm*1.7mm
Tip G-4.0mm*1.7mm
Tip H-3.5mm*1.35mm
Electric Characteristics:
| No. | Item | Specification |
| 1 | Rated Input Voltage(50--60 Hz) | AC 120 OR AC230V |
| Vibration Input Voltage Range(47--63Hz) | AC 100 --260V | |
| 2 | Input rate current | 1.5,2.0A |
| Input power | 100W | |
| 3 | Output power | 96W |
| efficiency | >85% | |
| 4 | Output voltage NOLOAD: | DC: 15V/16V/18V/19V/20V/22V/24V (0/+0.5V) |
| 5 | Output voltage at rating load | DC: 15V/16V/18V/19V/20V/22V/24V (-0.4/+0.5V) |
| Output current | 12--20V /4.5A 22--24V /4A | |
| USB port output voltage | 5.5--6.5V | |
| USB port output current | 1.0A max | |
| 6 | Overload protection | yes |
| 7 | Over voltage protection | yes |
| 8 | Short circuit protection | yes |
| 9 | Ripple noise | 200mv |
| 10 | Line regulation | (+/-5%) |
| 11 | Load regulation | (+/-5%) |
| 12 | Weight | 600g |
| 13 | Operating temperature | 0--40C |
| Operating humidity | 20%--80% | |
| 14 | Storage Temperature | (-10)0C to 70C |
| Storage humidity | 10%--90% |
This 96W universal laptop charger works with all models of laptops and notebooks from all major manufacturers, including, but not limited to all models from these manufacturers:
1.HP (Pavilion, Omnibook)
2.IBM ( T series ThinkPads)
3. Lenovo
4.Gateway
5.Compaq (Armada, LTE, Evo, Presario, Prosignia, Tablet)
6.Acer (Aspire, Tablet, Travelmate, AcerNote, Anywhere, Extensa, AcerNoteLight)
7. Fujitsu ( LifeBook models)
8. Panasonic (Toughbook models)
9. SONY Picturebook
10. SONY VIAO
11.NEC (LaVie C, LC series, PC Series, LT series)
12.Toshiba (Satellite, Dynabook Satellite Pro, Dynabook Satellite, Libretto, Portege, SatellitePro, Tecra)
13. Winbook
Packaging
Package |
Blister packing |
Fittings |
8 DC pins and power wire |
Qty/Ctn |
50pcs |
Dimension: |
56*42*35cm |
N.W |
18KGS/ctn |
G.W. |
19KGS/Ctn |
