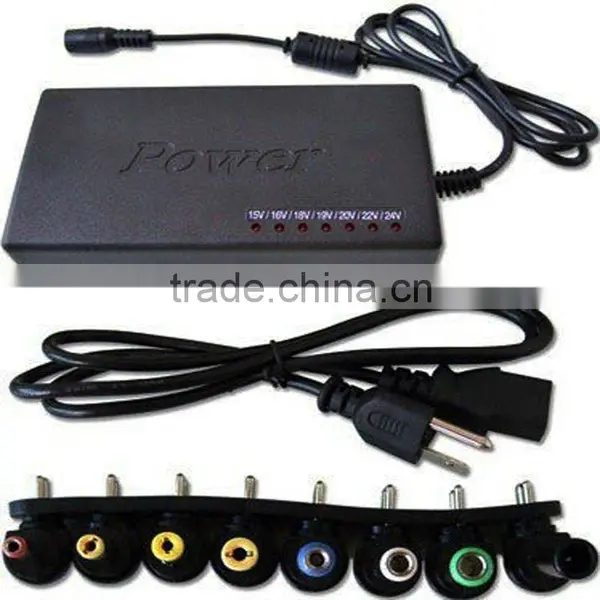

96W universal ac adapter

Specifications

96W universal ac adapter
1.MOQ:100 pieces
2.Output:DC15V/16V/18V/19V/20V/22V/24V
3.Warranty:12 year
4.Good price

                                            96W universal ac adapter









Specification

• General Description:
  This model is laptop ac adapter , operation at input AC voltage 95V to 265V and output DC voltage of 15V-20V/4.5A max 22-24V /4A max ,with protection functions ,use of the notebook computer power supply.





• 8 Tips:

• Tip A-6.3mm*3.0mm

• Tip B-6.0mm*1.0mm

• Tip C-5.5mm*2.5mm

• Tip D-5.5mm*2.1mm

• Tip E-5.5mm*1.7mm

• Tip F-4.8mm*1.7mm

• Tip G-4.0mm*1.7mm

• Tip H-3.5mm*1.35mm







Electric Characteristics:



No.	Item	Specification
1	Rated Input Voltage(50--60 Hz)	AC 120 OR  AC230V
	Vibration Input Voltage Range(47--63Hz)	AC 100 --260V
2	Input rate current	1.5,2.0A
	Input power	100W
3	Output power	96W
	efficiency	>85%
4	Output voltage NOLOAD:	DC: 15V/16V/18V/19V/20V/22V/24V  (0/+0.5V)
5	Output voltage at rating load	DC: 15V/16V/18V/19V/20V/22V/24V  (-0.4/+0.5V)
	Output current	12--20V /4.5A   22--24V /4A
	USB port output voltage	5.5--6.5V
	USB port output current	1.0A max
6	Overload protection	yes
7	Over voltage protection	yes
8	Short circuit protection	yes
9	Ripple noise	200mv
10	Line regulation	(+/-5%)
11	Load regulation	(+/-5%)
12	Weight	600g
13	Operating temperature	0--40C
	Operating humidity	20%--80%
14	Storage Temperature	(-10)0C to 70C
	Storage humidity	10%--90%







This 96W universal laptop charger works with all models of laptops and notebooks from all major manufacturers, including, but not limited to all models from these manufacturers:

 1.HP (Pavilion, Omnibook)



 2.IBM ( T series ThinkPads)



 3. Lenovo



 4.Gateway



 5.Compaq (Armada, LTE, Evo, Presario, Prosignia, Tablet)



 6.Acer (Aspire, Tablet, Travelmate, AcerNote, Anywhere, Extensa, AcerNoteLight)



 7. Fujitsu ( LifeBook models)



 8. Panasonic (Toughbook models)

  9. SONY Picturebook



 10. SONY VIAO



 11.NEC (LaVie C, LC series, PC Series, LT series)



 12.Toshiba (Satellite, Dynabook Satellite Pro, Dynabook Satellite, Libretto,    Portege, SatellitePro, Tecra)



 13. Winbook











Packaging





Package	Blister packing
Fittings	8 DC pins and power wire
Qty/Ctn	50pcs
Dimension:	56*42*35cm
N.W	18KGS/ctn
G.W.	19KGS/Ctn
