Specifications
PIR hidden camera2Y warranty
Fast delivery & T/T for payment
8Y warranty
CE/FCC/ROHS

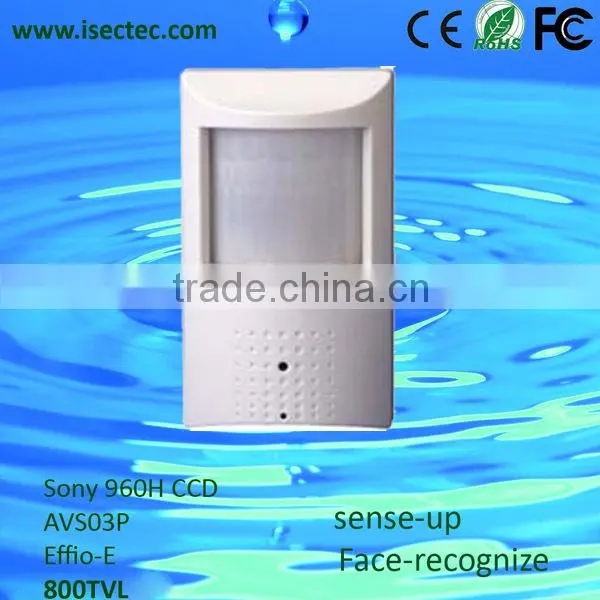

High definition 700tvl Sony effio-e CCD CCTV security PIR hidden camera
| Model | IC-H-ESR | IC-H-ESS | IC-H-ESQ | IC-H-EHM | IC-H-ESK | IC-H-ESF |
| Image Sensor | 1/3" SONY 960H CCD | 1/3" SONY 960H CCD | 1/3" SONY 760H CCD | 1/3" SHARP 760H CCD | 1/3" SONY Super HAD II CCD | 1/3" SONY Super HAD II CCD |
| CCD model no. | ICX811AK(PAL) ICX810AK(NTSC) |
ICX811AK(PAL) ICX810AK(NTSC) |
ICX639BK(PAL) ICX638BK(NTSC) |
RJ2365DB(PAL) RJ2355DB(NTSC) |
ICX633BK(PAL) ICX632BK(NTSC) |
ICX633BK(PAL) ICX632BK(NTSC) |
| DSP model no. | AVS03P | Effio-E CSD4140GG |
Nextchip 2040E | Nextchip 2040E | Nextchip 2030E | SONY CXD3142R |
| Horizontal Resolution | 800TVL OSD |
700TV Lines OSD |
650TV Lines OSD |
650TV Lines OSD |
480TV Lines Hi-sensitivity |
420TV Lines Hi-sensitivity |
| TV System | PAL / NTSC | |||||
| Effective Pixels | PAL:1020(H)*596(V) NTSC:1020H*508(V) |
PAL:752(H)*582(V) NTSC:768(H)*494(V) |
PAL:500(H)*582(V) N:510(H)*492(V) |
|||
| Lens | built-in 3.7mm pinhole lens; 2.5mm pinhole lens is optional | |||||
| Scanning System | 2:1 Interlace | |||||
| Sync System | Internal Synchronization | |||||
| S/N Ratio | More than 48dB(AGC OFF) | |||||
| Electronic Shutter Time | NTSC 1/60~1/100,000Sec; PAL 1/50~1/100,000Sec | |||||
| Video Output | 1Vp-p,75ohm, BNC | |||||
| Gain Control(AGC) | adjustable | Auto | ||||
| White Balance | adjustable | Auto | ||||
| Backlight Compensation | adjustable | Auto | ||||
| Mirror | ON/OFF | |||||
| Privacy Masking | ON/OFF (8 areas) | |||||
| Operation Temperature | -10C~ +50C RH95% MAX | |||||
| Storage Temperature | -20C~ +60C RH95% MAX | |||||
| Power Supply | DC12V, 300mA | |||||
| Dimension | 70(W)x120(H)x48(D)mm | |||||
| Case Color | white | |||||
| Weigt | 0.25kg | |||||
Features
1. PIR Hidden Camera
2. Sony Color CCD or Sharp Color CCD option
3. Sony Low Illumination CCD 0.1lux
4. Sharp ccd 0.5lux
5. High definition up to 800TVL(700/650/540/480/ 420TVL option)
6. 800TVL, 700TVL and 650TVL camera with built-in OSD, controlled by OSD cable
7. Standard lens: 3.7mm pinhole lens 2.5/2.8mm pinhole lens is optional
8. Without IR LED
9. 70(W)x120(H)x48(D)mm
10. 0.25kg
Why choose us?
u Provide one-stop-products: from CCTV camera, IP camera to DVR, video balun, etc to meet your whole project needs.
u 9 years R&D and export experience and leading and professional manufacturer in CCTV industry.
u High quality (material) with competitive and reasonable price.
u 2 year warranty and lifetime maintenance.
u Fast delivery: usually within 3-10 work days since payment arrived.
u Professional technical support; Best pre-sale, sale and after-sale service.
u Welcome OEM & ODM, mixed order.
u CE, FCC, RoHS passed.
Quality Control:
u All raw materials are carefully selected and inspected.
u Advanced production equipment is used and routinely inspected and serviced.
u All operators and employees are thoroughly trained.
u All products have passed the European Union RoHS standard and are CE, FCC certified.
u Professional logistics personnel are employed to control the damage during the physical distribution of products.
Questions about our PIR hidden camera:
u Q: How long is the warranty?
u A: 2 -years-warranty since delivered out.
u Q: What's the MOQ?
u A: 1pc for sample, 20pcs for OEM order.
u Q: How long is the delivery time?
u A: Sample order 3-5 working days, bulk order 5-10 working days.
u Q: How do make payment?
More products for you option:
Third Generation array led ir camera:
Analog CCTV camera:
