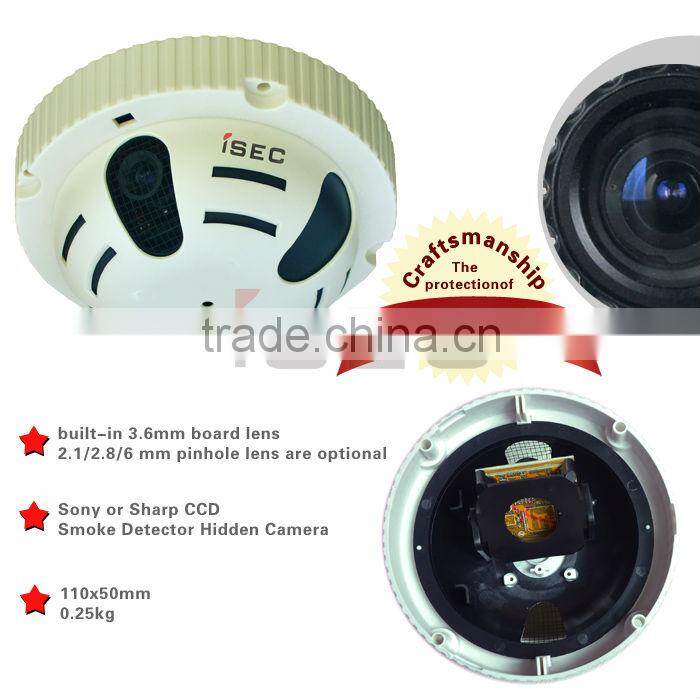

700TVL Build-in 3.6mm Board Lens Sony CCD Hot Sell Cheap Price Smoke Detector Camera

700TVL Build-in 3.6mm Board Lens Sony CCD Hot Sell Cheap Price Smoke Detector Camera thumbnail-1
700TVL Build-in 3.6mm Board Lens Sony CCD Hot Sell Cheap Price Smoke Detector Camera photo-1
US$ 12.9 - 40.5 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ISEC
Model Number:
IC-H-D series
Contact Supplier Request Quote Chat Now
Shenzhen Isec Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ISEC
Model Number IC-H-D series
Type Analog Camera
Style Hidden Camera
Sensor Other, CCD, Original Sony & Sharp CCD
Technology Pinhole
Special Features Other, Face recognise

Specifications

smoke detector camera
2Y warranty
Fast delivery & T/T for payment
8Y factory experience
CE/FCC/ROHS



700TVL build-in 3.6mm board lens Sony CCD hot sell cheap price smoke detector camera

700TVL build-in 3.6mm board lens Sony CCD hot sell cheap price smoke detector camera


Product Description
Model IC-H-DSR IC-H-DSS IC-H-DSQ IC-H-DHM IC-H-DSK IC-H-DSF
Image Sensor 1/3" SONY 960H CCD 1/3" SONY 960H CCD 1/3" SONY 760H CCD 1/3" SHARP 760H CCD 1/3" SONY Super HAD II CCD 1/3" SONY Super HAD II CCD
CCD model no. ICX811AK(PAL)
ICX810AK(NTSC)		 ICX811AK(PAL)
ICX810AK(NTSC)		 ICX639BK(PAL)
ICX638BK(NTSC)		 RJ2365DB(PAL)
RJ2355DB(NTSC)		 ICX633BK(PAL)
ICX632BK(NTSC)		 ICX633BK(PAL)
ICX632BK(NTSC)
DSP model no. AVS03P Effio-E
CSD4140GG		 Nextchip 2040E Nextchip 2040E Nextchip 2030E SONY CXD3142R
Horizontal Resolution 800TVL
OSD		 700TV Lines
OSD		 650TV Lines
OSD		 650TV Lines
OSD		 480TV Lines
Hi-sensitivity		 420TV Lines
Hi-sensitivity
TV System PAL / NTSC
Effective Pixels PAL:1020(H)*596(V)
NTSC:1020H*508(V)		 PAL:752(H)*582(V)
NTSC:768(H)*494(V)		 PAL:500(H)*582(V)
N:510(H)*492(V)
Lens built-in 3.6mm board lens; 2.1/2.8/6 mm pinhole lens are optional
Scanning System 2:1 Interlace
Sync System Internal Synchronization
S/N Ratio More than 48dB(AGC OFF)
Electronic Shutter Time NTSC 1/60~1/100,000Sec; PAL 1/50~1/100,000Sec
Video Output 1Vp-p,75ohm, BNC
Gain Control(AGC) adjustable    Auto
White Balance adjustable    Auto
Backlight Compensation adjustable    Auto
Mirror ON/OFF
Privacy Masking ON/OFF (8 areas)
Operation Temperature -10C~ +50C RH95% MAX
Storage Temperature -20C~ +60C RH95% MAX
Power Supply DC12V, 300mA
Dimension Ø110x50mm
Case Color white
Weigt 0.25kg



Features





1. Smoke Detector Hidden Camera
2. Sony Color CCD or Sharp Color CCD option

3. Sony Low Illumination CCD 0.1lux

4. Sharp ccd 0.5lux

5. High definition up to 800TVL(700/650/540/480/ 420TVL option)

6. 800TVL, 700TVL and 650TVL camera with built-in OSD, controlled by OSD cable

7. Standard lens:  3.6mm board lens     2.1/2.8/6 mm pinhole lens are optional
8. Without IR LED

9. Ø120x56mm
10. 0.25kg



Deatails





Name of products

Sony Ccd Hidden Camera Celling Mount



Model number

 IC-H-D series



700TVL build-in 3.6mm board lens Sony CCD hot sell cheap price smoke detector camera




Packaging & Shipping

700TVL build-in 3.6mm board lens Sony CCD hot sell cheap price smoke detector camera


Our Services

Why choose us?

u  Provide one-stop-products: from CCTV camera, IP camera to DVR, video balun, etc to meet your whole project needs.

u  9 years R&D and export experience and leading and professional manufacturer in CCTV industry.

u  High quality (material) with competitive and reasonable price.

u  2 year warranty and lifetime maintenance.

u  Fast delivery: usually within 3-10 work days since payment arrived.

u  Professional technical support; Best pre-sale, sale and after-sale service.

u  Welcome OEM & ODM, mixed order.

u  CE, FCC, RoHS passed.



Quality Control:

u  All raw materials are carefully selected and inspected.

u  Advanced production equipment is used and routinely inspected and serviced.

u  All operators and employees are thoroughly trained.

u  All products have passed the European Union RoHS standard and are CE, FCC certified.

u  Professional logistics personnel are employed to control the damage during the physical distribution of products.




Company Information





Certifications






FAQ



Questions about our smoke detector camera:

u  Q: How long is the warranty?

u  A: 2 -years-warranty since delivered out.

u  Q: What's the MOQ?

u  A: 1pc for sample, 20pcs for OEM order.

u  Q: How long is the delivery time?

u  A: Sample order 3-5 working days, bulk order 5-10 working days.

u  Q: How do make payment?
