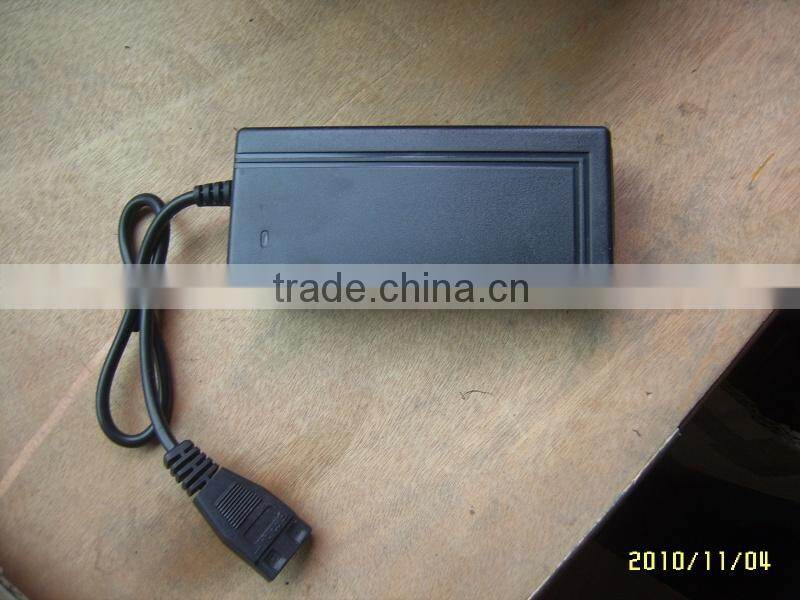

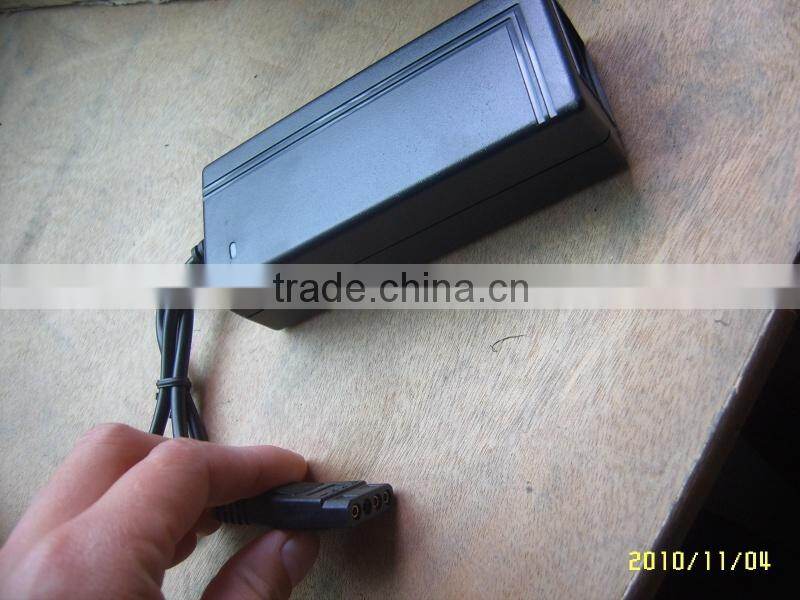

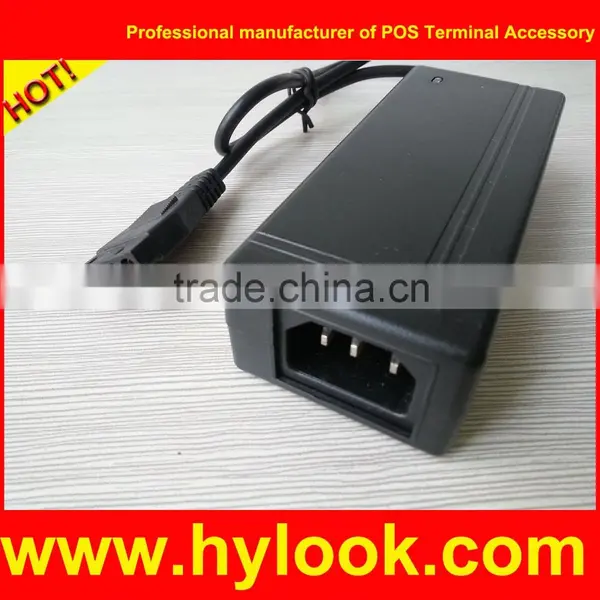

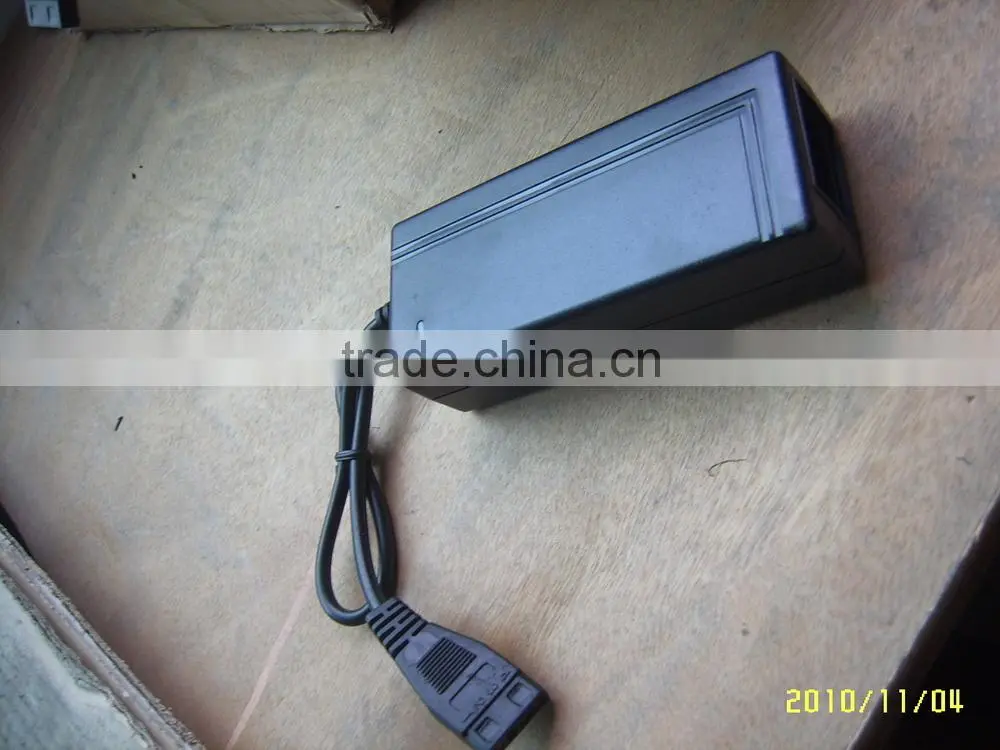

ac dc power adapter 5V 12V for Hdd External Hard Driver

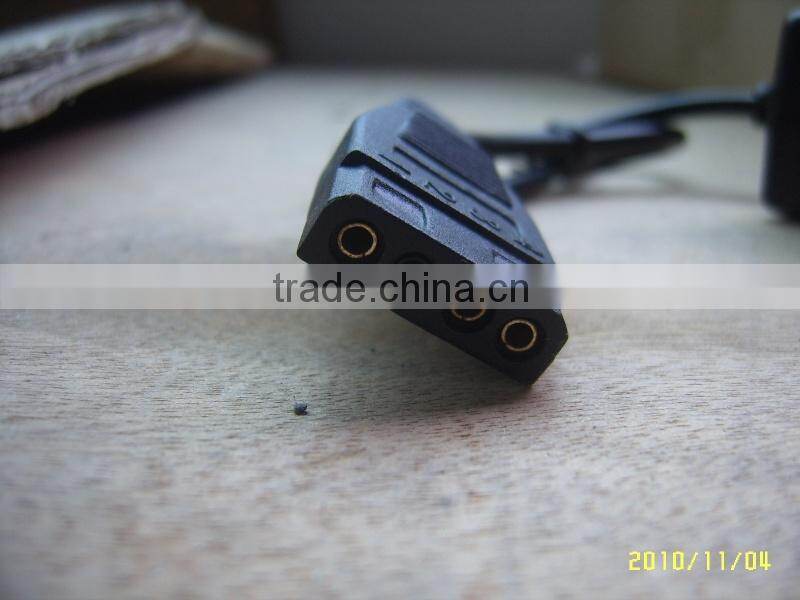

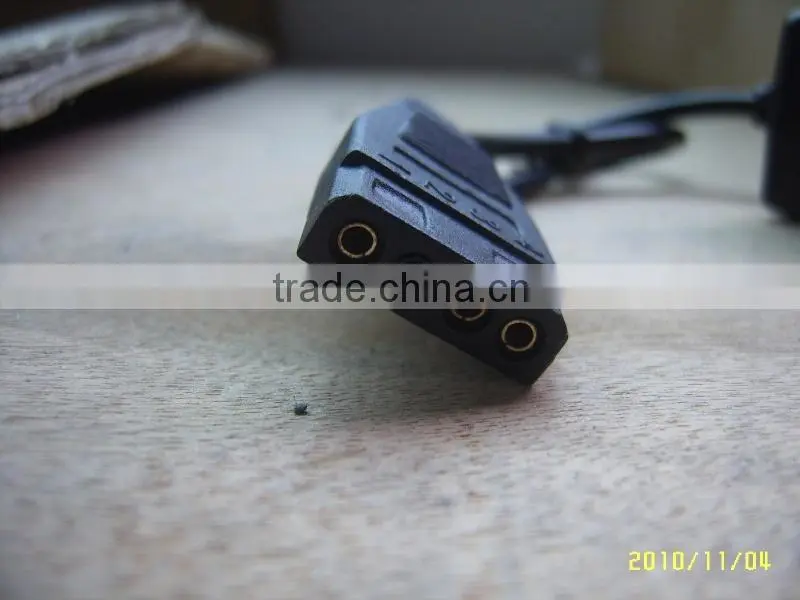

Molex 4 Pin connector
6/5/7 round pin interface
suit for your Hard drive
let your external hard drive work perfactly
OEM and ODM available
Features:
- compact Size
- Input is 100--240V, 50-60Hz (worldwide use)
- Connector: round shape, outside diameter 5.5mmm, inside diameter: 2.5mm
Environmental:
- Operating Temperature: 0 --40 degree C
- Storage Temperature: -10 --70 degree C
- MTBF: 20,000 Hours (minimum) at full load External Power Supply 12V 5V
Description:
| |
|
12V/5V 2A external power supply output for Hardisk power supply
| |
Input Condition : |
100 to 240VAC 50/60 Hz 1.0A Max |
Input Rated Voltage : |
100 to 240VAC |
Input Voltage Range |
90 to 264VAC |
nput Rated Frequency : |
50/60Hz |
Input Frequency Range : |
47Hz to 63Hz |
Input Current : |
1.0A Max
|
Input Inrush Current : |
30A Max |
Input No Load Power Consumption : |
0.5W Max At 115Vac/230Vac |
Efficiency : |
80% Min |
Rated Output Power: |
34W |
Output Voltage & Current : |
DC 12V and 5V Dual voltage at 2A current |
Output power |
34W |
Output Line Regulation : |
+/-1% |
Output Load Regulation : |
+/-5% |
Output Over Shoot : |
10% Max |
Output Ripple And Noise : |
1% Max |
Output Rising Time : |
20ms Max At 115Vac |
Output Hold up Time : |
8ms Min At 230Vac |
Protection : |
OCP OVP SCP OPP |
Dielectric Withstand Voltage : |
3KV 5mA 60s |
Leakage Current : |
0.25 mA At 230Vac |
Operating Temperature: |
0 to 55 Degree |
Storage Temperature: |
-10 to 85 Degree |
Relative Humidity: |
5 to 95% |
Use as hard drive external power supply 12V 5V
Other Specifications
-
Cable Length: Input power cord- 3 feet
Output - 3.5 feet - Connector Type: Input - three prongs
- Output - 6-pin femal Serial ATA power connector or P4 connetcor for hdd
- 100% Brand New.
- Include 5V and 12V power Voltage for Hard Disk Drive, CD/DVD-Rom etc.
- This PSU is only built for Hard Drive Enclosure/docking, Optical Device Enclosure/docking. DO NOT connect to any other type of devices. We are not responsible for anything goes wrong if you do so.
- Compare the pin configuration, the allocation of 5V, 12V and GND, with your original PSU before making a purchase.
- There is not a universal fit, so check it carefully! Your connected device may get damaged if you connect a PSU with wrong pin configuration.
- Power supply: external power supply
Pakage Content:
- 1 x 12V+5V AC Adapter Power Supply FOR HARD DISK DRIVE
