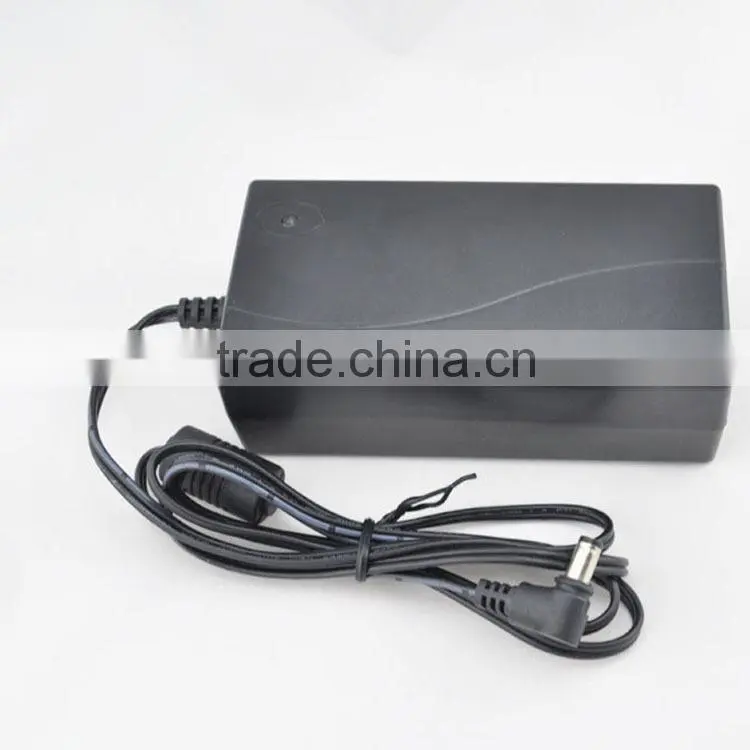

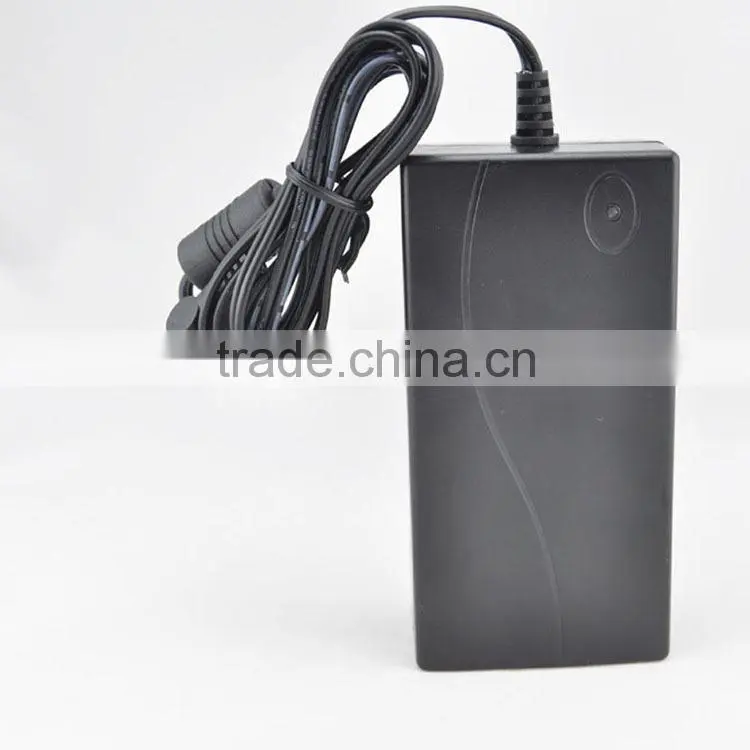

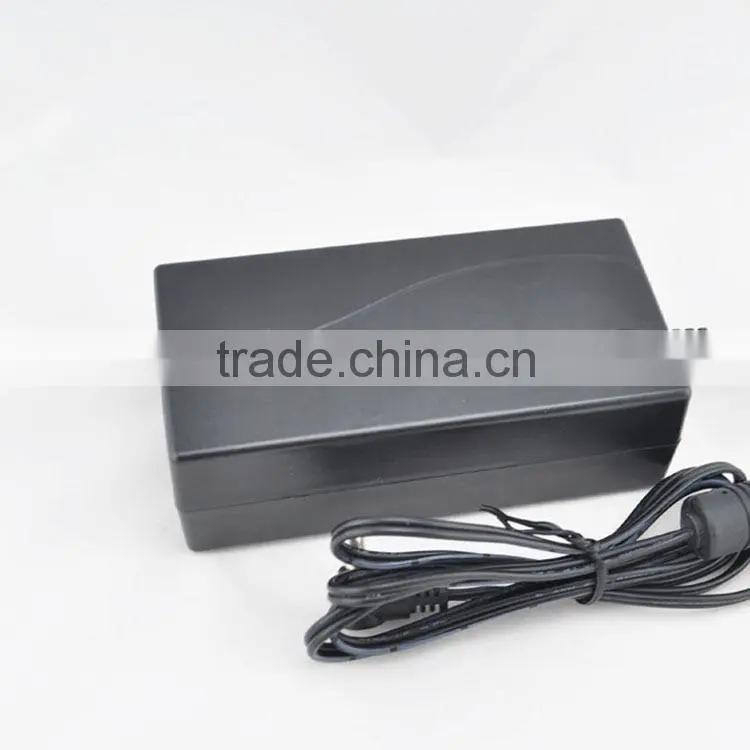

Verifone Power Supply Omni 3730LE / Vx 510 LE (CPS10936-3B)
Application: for use with original verifone pos terminal model :omni 3730,omni 3730LE,Vx510,Vx510LE,Vx520,Vx520 GPRS,Vx570,Vx610,omni5xxx etc
- ITE listed, Class 2 power supply:
- a Input rated: 100 - 240V AC, 50/60 Hz
- b Output rated: 8.6 - 9.4V DC 4.0 A
- Barrel connector polarity
- Compatible with original verifone part no.:
- CPS 10936-3A
- Vx610 Power Supply. Part No CPS 10936-3K-R
- AU1360903n
- PWR 258-001-01-A
1.AC DC Power supply Characteristics
1.1 Input Characteristics:
- 1)Input Rated Voltage. Frequency 100-240V 50/60Hz
- 2) Input Voltage Range Continuously 90VAC to 264VAC
- 3) Input Frequency Range Continuously 50Hz to 60Hz Vibration Rate input frequency Continuously 47Hz to 63Hz
- 4) Input Current 100Vac in/2.0A load 1A Max.
- 5) Inrush Current: (Cold start) 30A Max .@100VAC cool start
- 60A Max .@230VAC cool start
- 6)No Load Power Consumption 100-240Vac in <1W
- 7) Leakage current: 10mA Max
1.2 AC DC power supply Output Characteristics:
- 1)Output Characteristics: Measured at the end of DC cable
- 2)Output Rated Voltage No load 9V 8.1-9.9VDC
- 4.0A load 9V 8.1-9.9VDC
- 3)Output Current At constant voltage mode 0A to 4.0A
- 4) Output Voltage Ripple and Noise: 100-220Vac in/4.0A load <260mVp-p
- (0.1uF Ceramic Cap.and 50V 10uF Aluminum Cap. Paralleled between the end of output cable)
1.3 Protection Characteristics
- 1) Short Circuit Protection: The 9V 4A power supply can withstand continuous short No broken, no smoke in at DC output and no damage, it will enter 30 Minutes into normal condition if the fault condition is removed.
- 2) Overshoot / Undershoot: 27V±5%
1.4 General characteristics
Efficiency |
(Warm up) 100-240Vac in/4.0A load >70% |
Switching Frequency |
Switching Frequency |
Protecion condition |
Any protect condition shall cause no damage and no component fail |
Recovery |
Automatic recovery when removal |
1.5 Environmental Characteristics
ITEM CONDITION SPECIFICATION | |
|
Insulation Resistance
|
Between AC input and secondary applied 500Vdc >100M Ωfor 1 minute |
Dielectric Strength |
(Hi-Pot) Between AC input and secondary DC9VDC, test No damage time 1minute,and cut off current shall be less than |
Temperature |
Operating 0 to 40oC |
Storage -20 to +60oC | |
Humidity |
Operating 8%~95% |
Storage 5%~95% | |
1.6 Mechanical Requirement:
- Enclosure:The AC DC power supply size : 118x57.05x37.55 mm
- Input Connector: IEC C13 prong plug
DC tip 100% same with original verifone power adapter CPS10936-3A / DC power pack :
2.Reliability
- 1)Heat-resistance: The AC DC power supply shall be stored at a temperature of 55+/-2 °C for 16 hours. Then No distortion and
(Storage) it shall be subjected to standard astrospheres conditions for 2 hours,
- 2)Heat resistance: The AC/DC power supply shall be placed at a temperature of 25+/-2 °C and operating at No abnormity
(Operation) full load for 4 hours. Measurement shall be made.
- (3)Cold-resistance: The AC/DC power supply shall be stored at a temperature of -20+/-2 °C for 16 hours. No distortion and
- (Storage) Then it shall be subjected to standard astrospheres conditions for 2 hour, No function error
after which measurement shall be made.
- 4)Cold-resistance: The SMPS shall be placed at a temperature of 0+/-2 °C and operating at No abnormity
(Operation) rate75% full load for 4 hours. Measurement shall be made.
- 5)Body surface temp: at a entironment temperature of 23+/-2 °C , 100VAC/2.0A load ≤65°C
For 2 hours, measure central section of sueface (thermoelectric couple method)
- 6) M.T.B.F: 50K Hours At 25°C With 80% Loading No abnormity
- 7) Life : Average Life Expectancy Or 3 Year
4.Stirct testing procedure for the ac dc power supply
- 100% burning in test for 3 hours before every piece of ac dc power supply delivered
Always control defective to the lowest ! Buy with confidence!

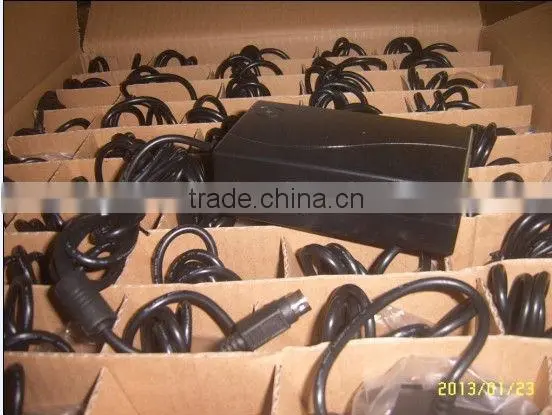

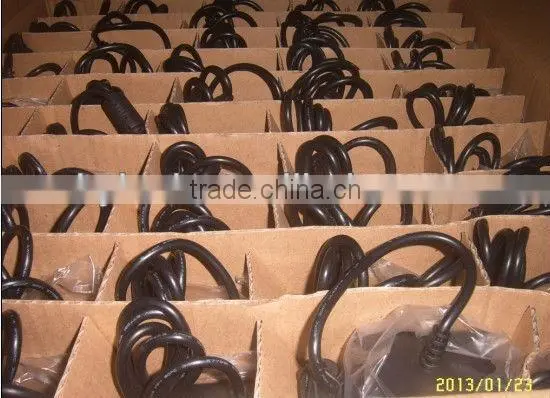

5.Available package for ac dc power supply :

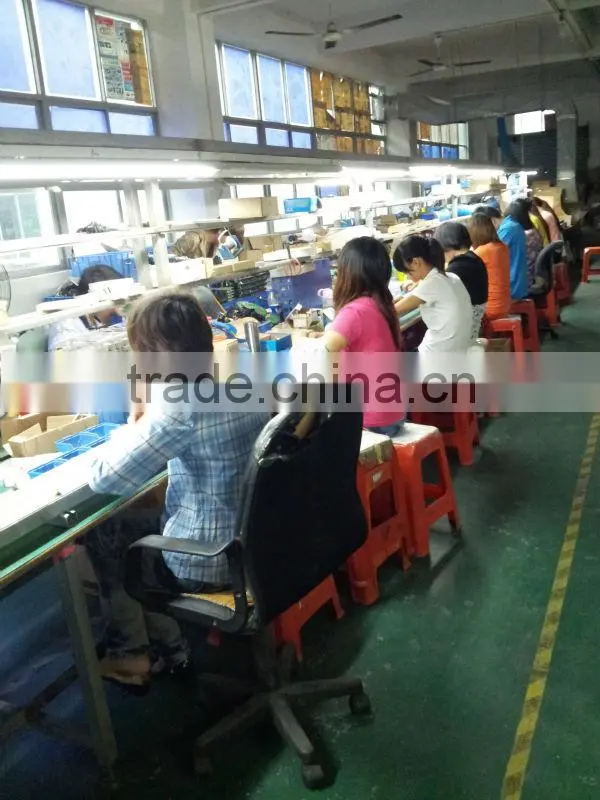

6.About Us:
- Our company ,Shenzhen Hylook Electronic Co.,LTD, is a professionally manufacturing ac dc power supply, Universal adapter, car charger,AC DC power supply , and so on. Original quality, high-technic design, competitive price, just waiting for your test, as first deal with, we can offer sample to you for testing.
