12V 3A Power Supply
---------------------------------------------------------------------
12v 3a switching power suply use for LED strip,CCTV camare,CCD ,Pos terminal machine,LCD monitor,laptop,printers etc.
- High quality ,100% new
- One year warranty
- competitive price
- for CCTV camera,Medical machines,Pos printer,LCD ,TV USE etc.
Characteristics:
- Input Condition: 100 to 240VAC 50/60 Hz 1A Max
- Input Voltage Range: 90 to 264VAC
- Input Rated Frequency: 50/60Hz
- Input Frequency Range: 47Hz to 63Hz
- Input Inrush Current: 60A Max
- Output Line Regulation: ± 1%
- Output Load Regulation: ± 5%
- Over Shoot: 10% Max
- Ripple And Noise: 1% Max
- Rising Time: 20ms Max At 115Vac
- Hold up Time: 8ms Min At 230Vac
- Leakage Current: 0.25 mA At 230V
Specification:
- Inrush Current
20A mps max. cold start at 240Vacinput,with rated load and 25°C ambient.
- Rise time
40ms max at 115Vac input and output max load
- Efficiency:
70% min at 115/230Vac input voltage, 1/4,1/2,3/4 and full load calculation efficiency.
- Over current Protection:
will be auto recovered when over current faults remove
- Over Voltage Protection:
The power supply will auto recovered when faults remove 120%
|
Technical Specifications: · AC input voltage ……100-240VAC, Output ……12V 3A · Input frequency ………47-63Hz · AC inrush current(max.) …….20A/230V · Line regulation (full load).......±0.5% · Peak- to -peak ripple …….<500MV · Working temperature………….0-35°C@100%,50°C@70% load · Strong made totally compatible part · Over voltage protection………115%-135% rated output voltage · Over load protection ………115%-135%fold back current limiting, | ||||||||||||||
|
* More details : | ||||||||||||||
* Input Characteristic : | ||||||||||||||
| ||||||||||||||
|
Safety:
| ||||||||||||||
|
Advantage:
| ||||||||||||||
|
|
Package include:
- 1x Switching power supply 12V 3A
- Pls note that this switching power supply do not including the ac power cord,
should buy separately

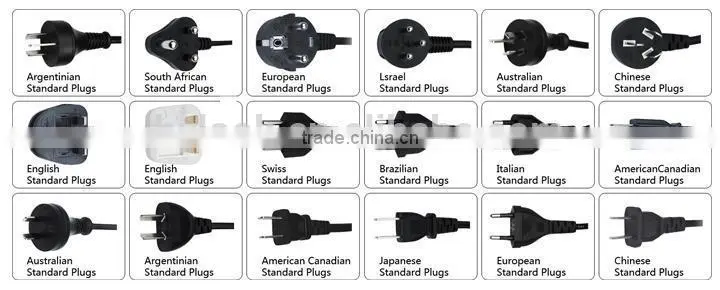

- Power cord plug for the switching power supply which are available for choose :
BIG DISCOUNT FOR FIRST ORDER NOW!
1 YEAR WARRANTY

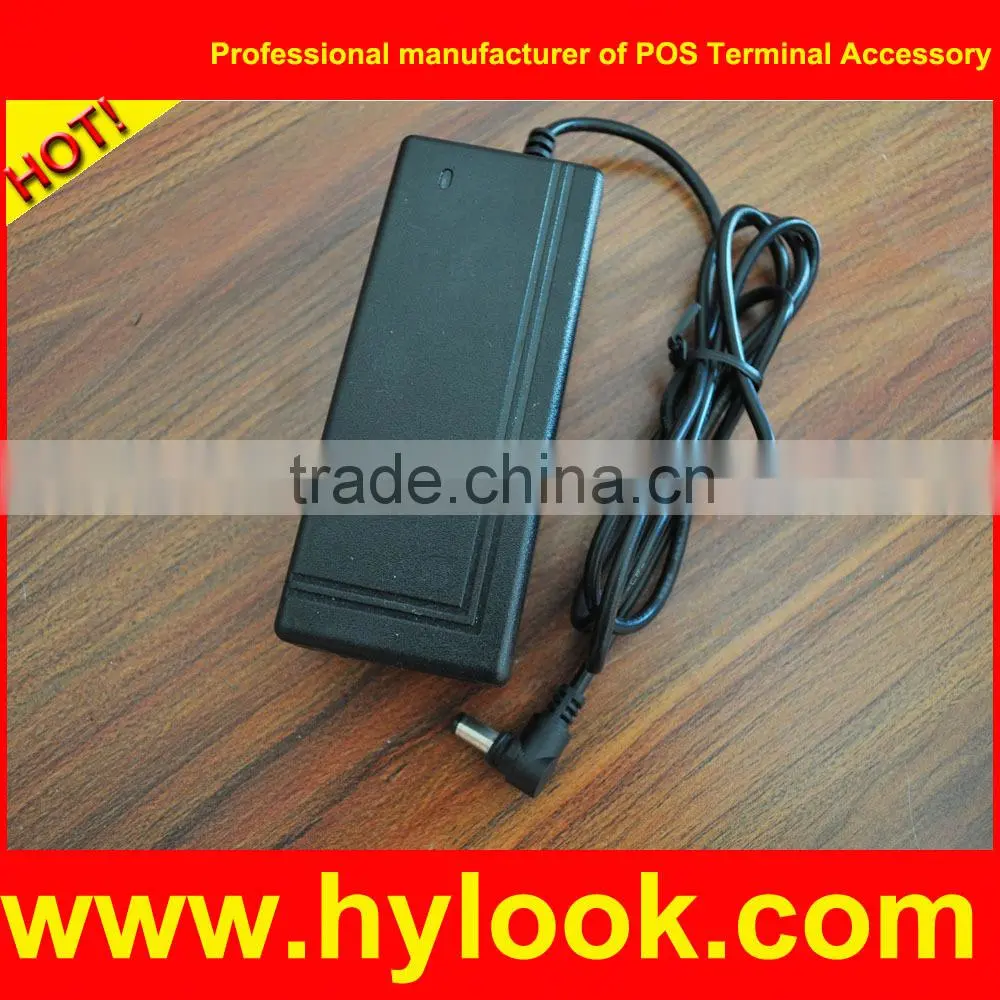

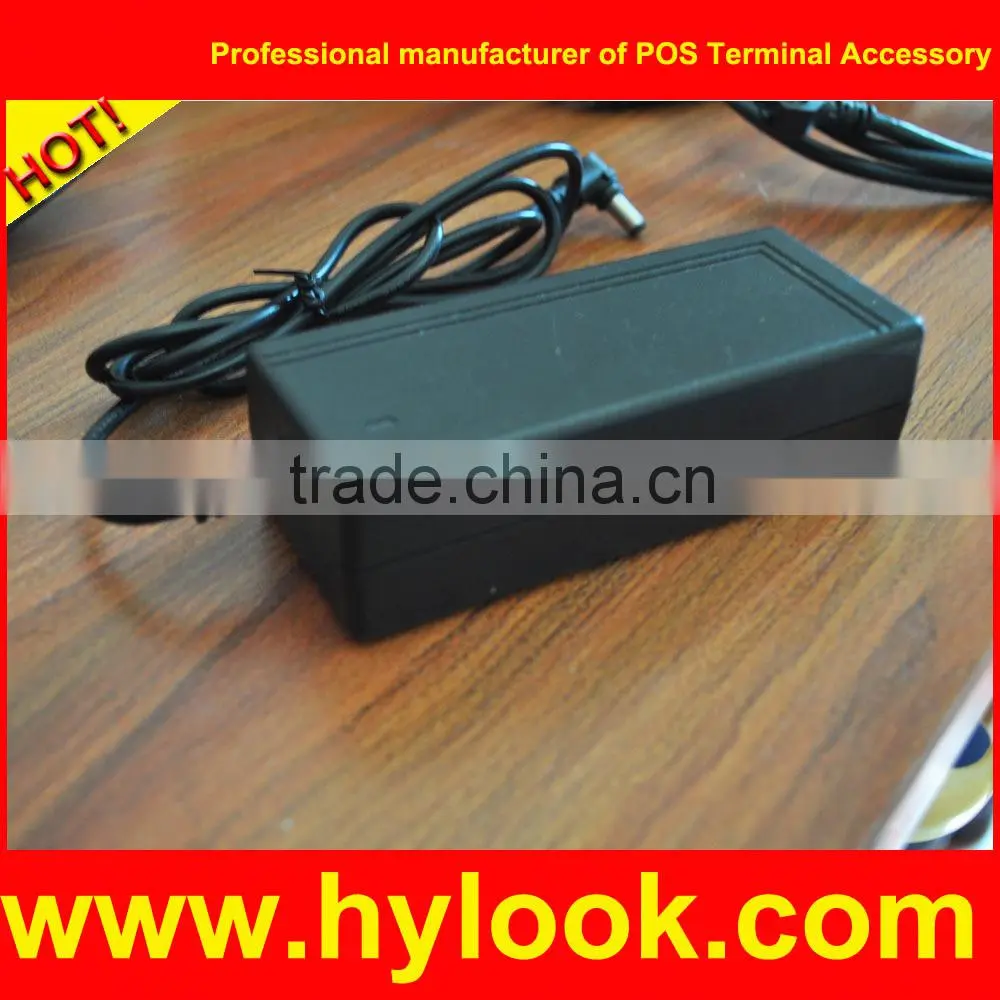

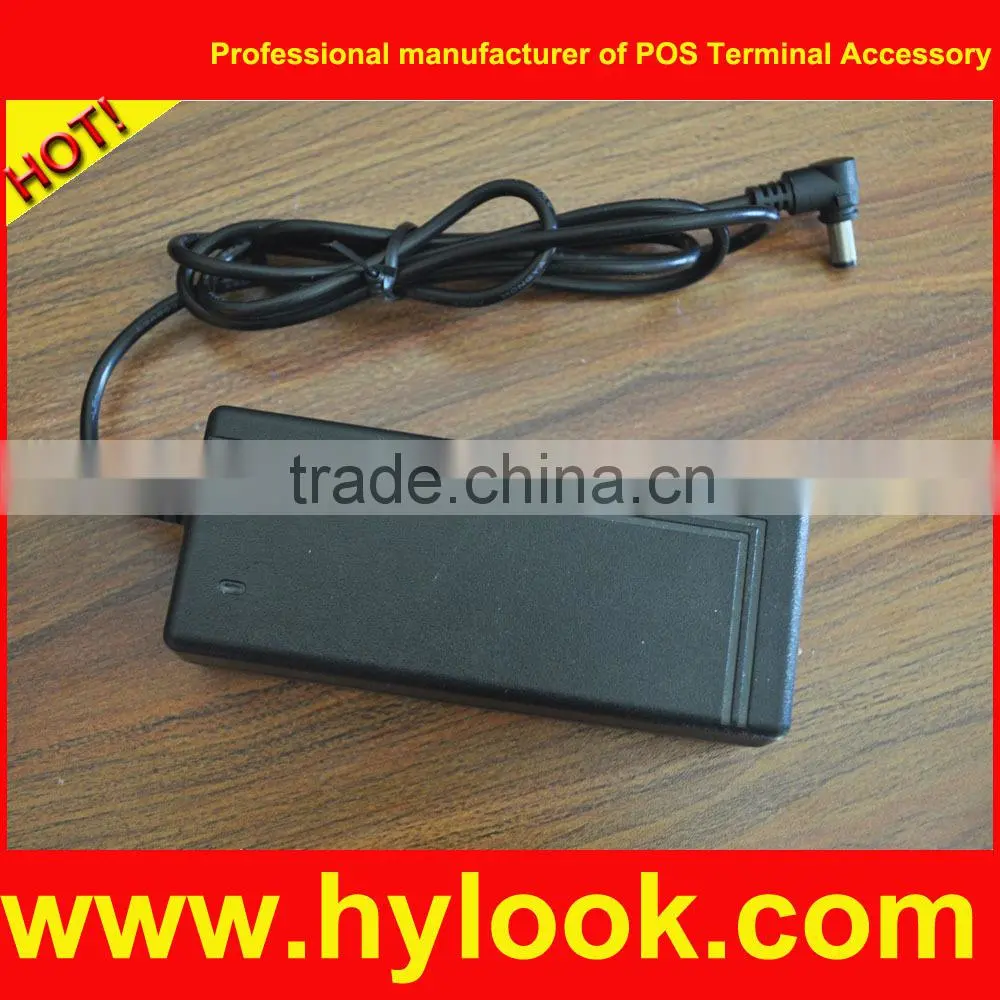

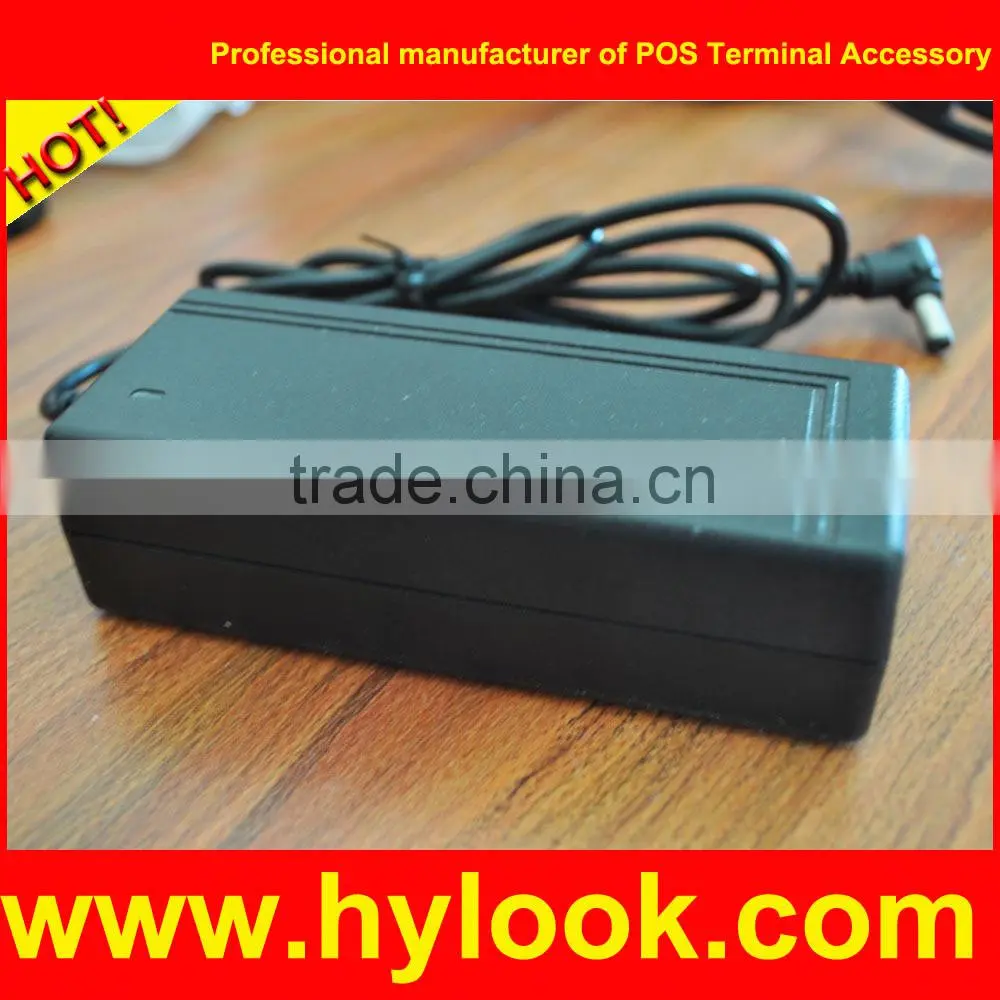

Photos :

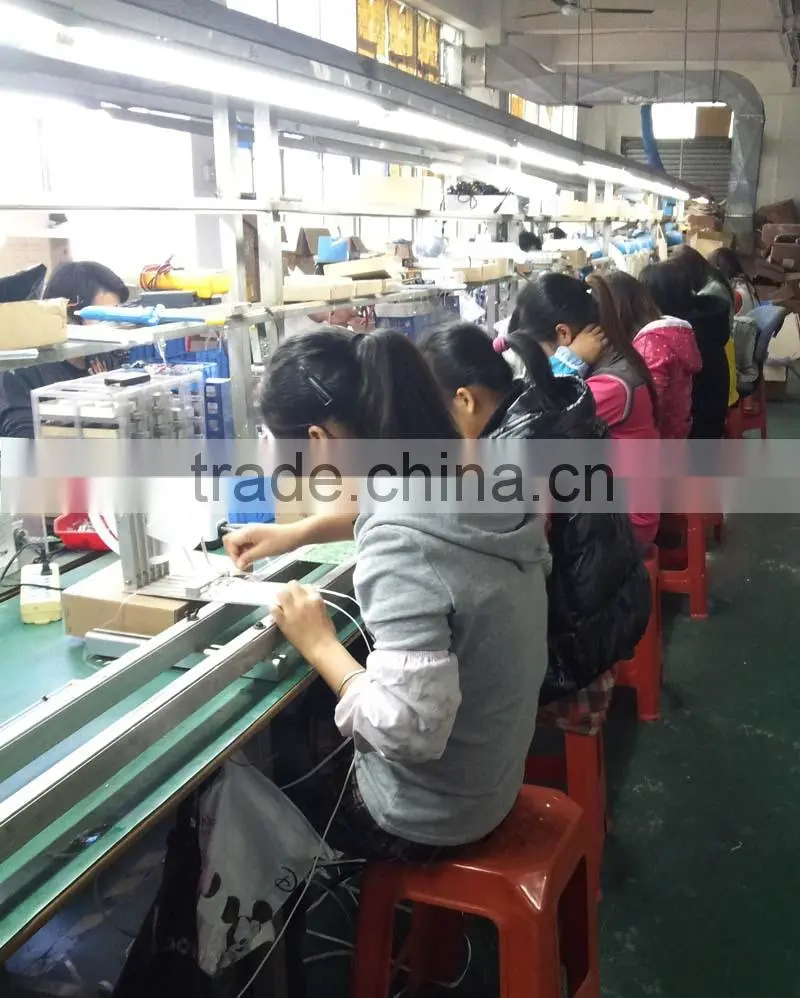

About us:
- Our factory have been specialized in producing power adapters and cables for more than 6 years experience .
- Offer high quality power adapters and cables with reasonable price .For more information ,please visit our company website: or contact me directly by send email to :hlsarina(at)
Why Choose Hylook ?
Quality Assurance:All the products will go through 5 checks during production
Warranty: One-year warranty, the broken power adapters will be replaced and the new lights will be reduce from next order
Production capacity: Monthly production more than 100,000 pcs products exported world-widely.
Competitive price: Factory direct sale, big price.

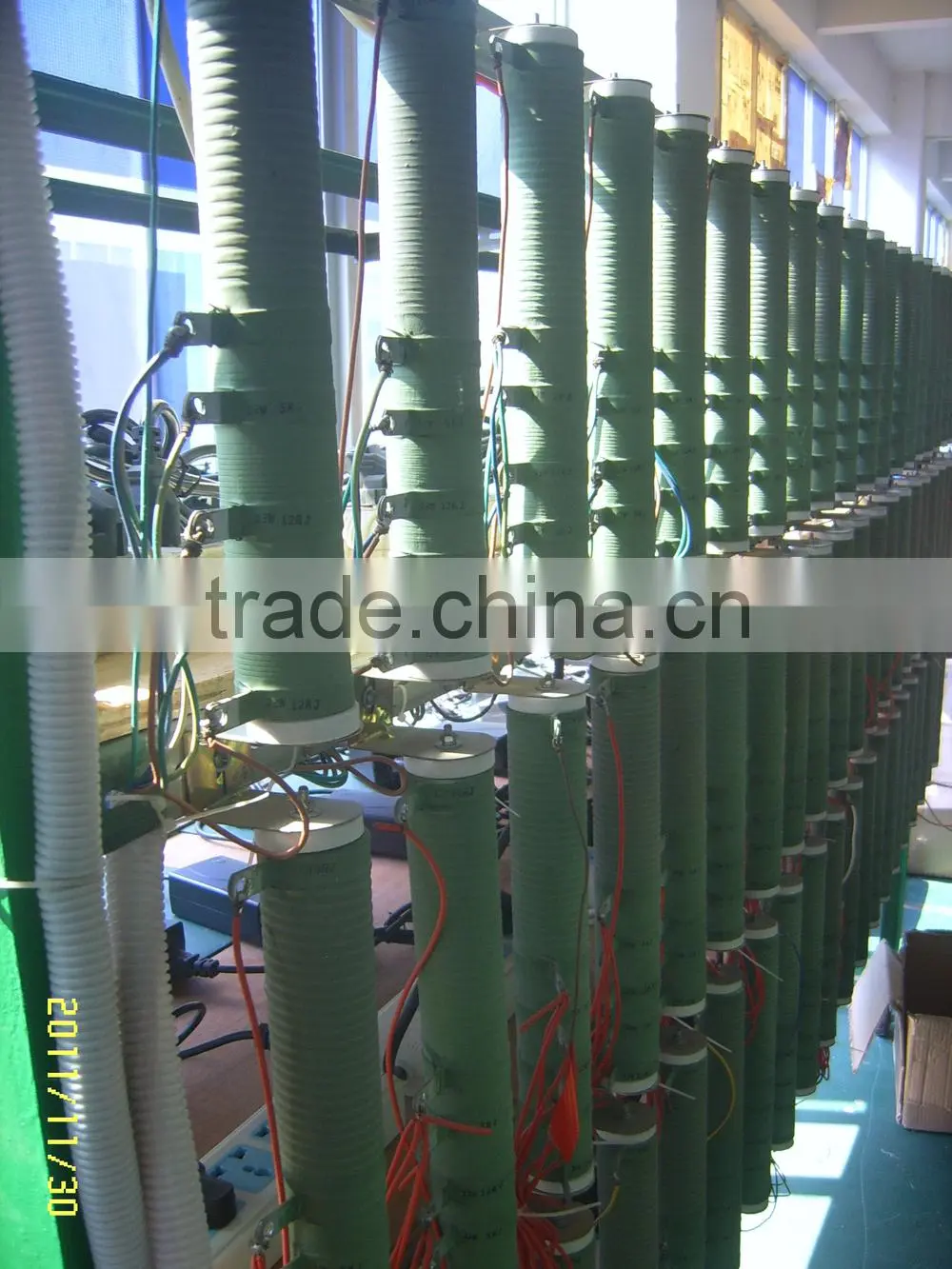

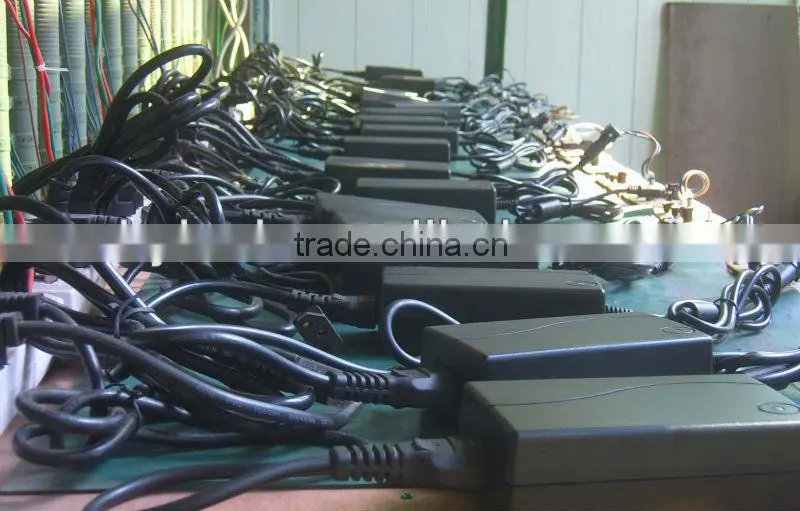

Testing :
All of our power adapters have been burning in test for 3 hours at 80% load ,to assure low failure rate ,buy with confidence !
Our company produce many pos terminal accessories such as :
HYLOOK has the widest range of accessories (power supply ,car charger,charger
cable ,data cable and batteries) compatible with all major brands of POS (EFTPOS)
market (Verifone, Ingenico, Hypercom, Lipman and others).
- Ingeco ICT220/250 Magic box
- Verifone Vx810 Vx820 to vx510 14 header cable
- Verifone CBL 268-004-01-C Verifone vx670/vx680 charger cable
- Verifone 08369-01-R Programming cable for verifone vx670/vx680
- Verifone 24016-01-R Replacement Li-ion Battery for Verifone vx670 /Vx680/Vx520 GPRS
- Verifone Vx670 Vx680 power supply
- Verifone vx510 /vx520 power supply
- Ingenico EFT930 power supply
- Ingenico IWL220/IWL250 ac adapter
- Ingenico ICT220/ICT250 power adapter
- Hypercom M4230 power adapter/car charger
- Hypercom M42XX T42XX replacement Li-ion battery
- .......
- If you are interested in our items ,do not hesitate to contact us for full catalogue !
- Hope we could be your business partner and professional supplierespecially in the field of power adapters and pos terminal Accessory
Contact information :
Skype:fysummy
Trademanager:cn1001346229
Tel:086-0755-29062506
