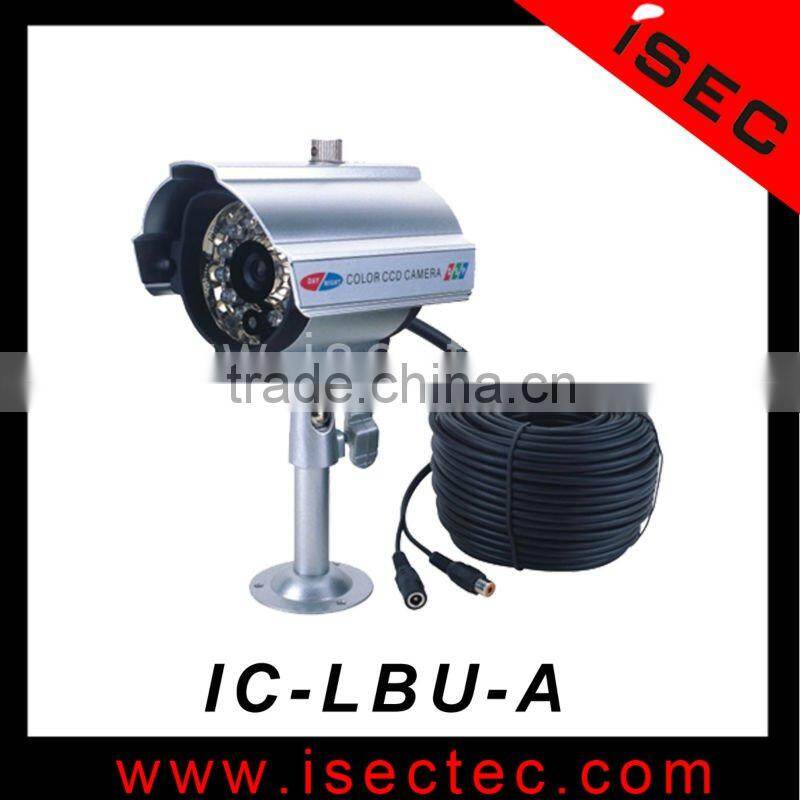

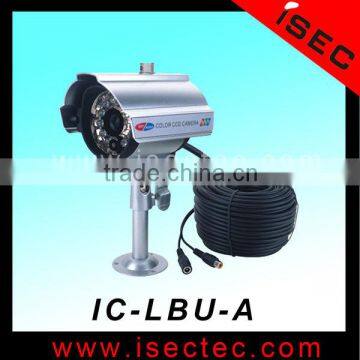

Day and Night Ir Underwater Cctv Camera

Name: Day and Night Ir Underwater Cctv Camera
Brand: ISEC
SKU: 100464451
Availability: InStock

US$ 93 - 146 MOQ: 2 Units

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ISEC

Model Number:

IC-LBU-A SERIES

Shenzhen Isec Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ISEC

Model Number IC-LBU-A SERIES

Type Other, Analog Camera, Video Camera

Style Bullet Camera

Sensor Other, CCD, Sony Color Effio Ccd

Technology Infrared

Special Features Waterproof / Weatherproof

Specifications

Day and Night Ir Underwater Cctv Camera
-100% manufacturer
-OEM/ODM
-Sony Effio Ccd
-Two years warranty

Day and Night Ir Underwater Cctv Camera

Details

Product Name

Day and Night Ir Underwater Cctv Camera

Model NO.

IC-LBU20-A SERIES

Model	IC-LBU20-ASS	IC-LBU20-UASQ	IC-LBU20-ASM	IC-LBU20-ASK	IC-LBU20-ASF	IC-LBU20-AHA
Image Sensor	1/3" SONY ICX673AK CCD	1/3" SONY ICX639BK CCD	1/3" SONY ICX639BK CCD	1/3" SONY ICX633BK CCD	1/3" SONY ICX633BK CCD	1/4" SHARP RJ2421FA CCD
Horizontal Resolution	700TV Lines Hi-sensitivity Effio, ATR, OSD, NR	600TV Lines Hi-sensitivity, OSD	540TV Lines Hi-sensitivity	480TV Lines Hi-sensitivity	420TV Lines Hi-sensitivity	420TV Lines Hi-sensitivity
TV System	PAL/NTSC
Effective Pixels	PAL:976 (H)× 494(V) NTSC:976 (H) ×582 (V)	PAL:795 (H)× 596(V), NTSC:811 (H) ×508 (V)		PAL:752(H)x582(V) NTSC:768(H)x494(V)	PAL:500(H)x582(v)
					NTSC:510(H)x492(v)
IR LED	24pcs Ø5mm IR LEDs
IR project distance	20 meters
Lens	3.6mm board lens
	2.8/6mm lens are optional
Minimum Illumination	0lux with IR on
IR Status	Under 10 Lux by CDS
IR Power On	CDS Auto Control
Scanning System	NTSC:525 Lines,60 Field/sec,
	PAL:625 Lines 50 Field/sec
Sync System	Internal Synchronization
Gamma Characterlstic	0.45
S/N Ratio	≥65dB (AGC OFF)	≥54dB (AGC OFF)		≥48dB (AGC OFF)
Electronic Shutter Time	NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec;
Video Output	Composite Signal (1.0Vp-p, 75Ω), BNC
Gain Control(AGC)	Auto
White Balance	Auto
Backlight Compensation	Auto
Operation Temperature	-10C~ +50C RH95% MAX
Storage Temperature	-20C~ +60C RH95% MAX
Waterproof	IP66
Power Supply	DC12V,400mA
Dimension	Ø100(W) x65(H) x71(D)mm
Camera Case Color	default: white
weigt	1.5kg
weight	1.5kg
