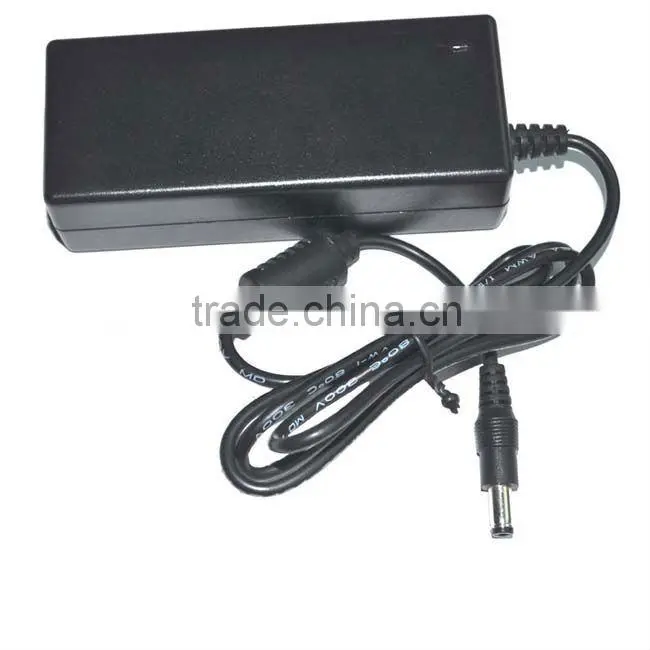

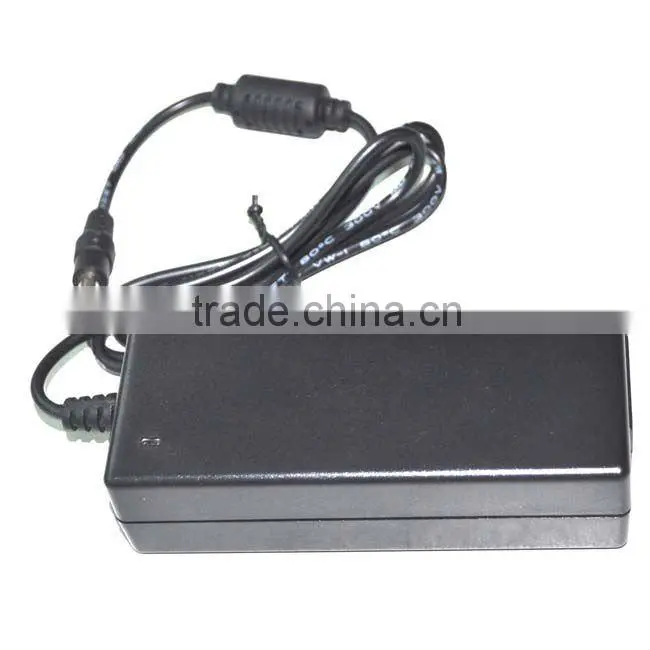

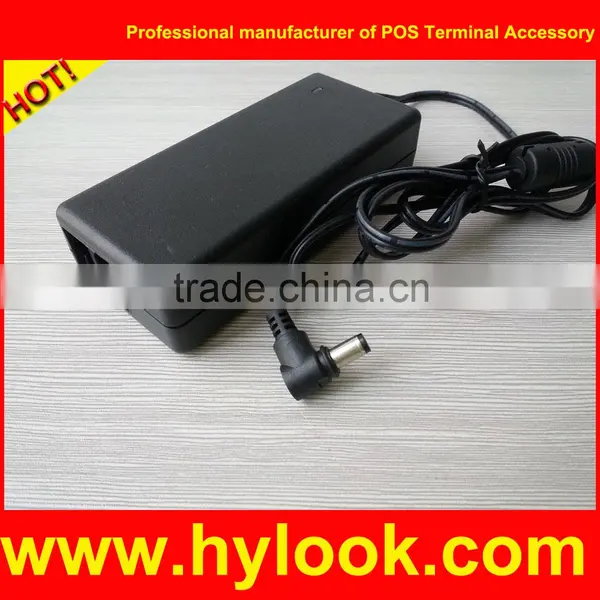

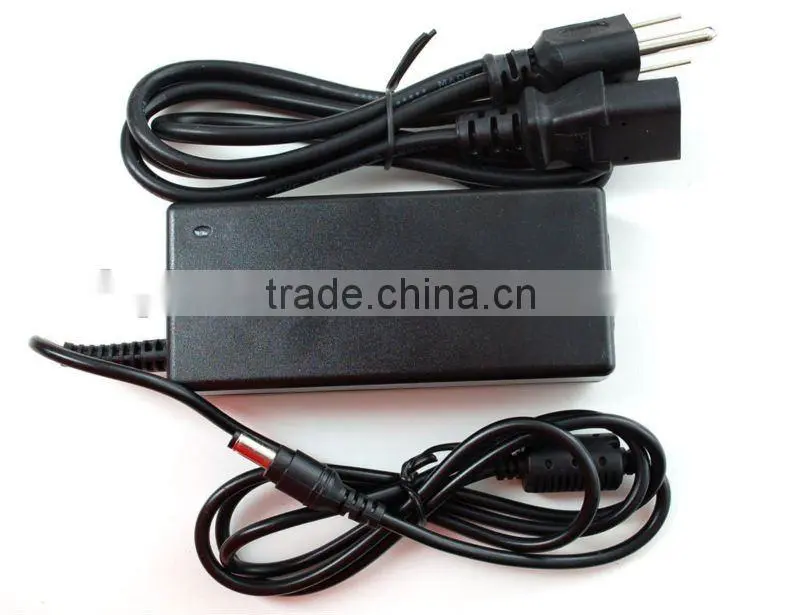

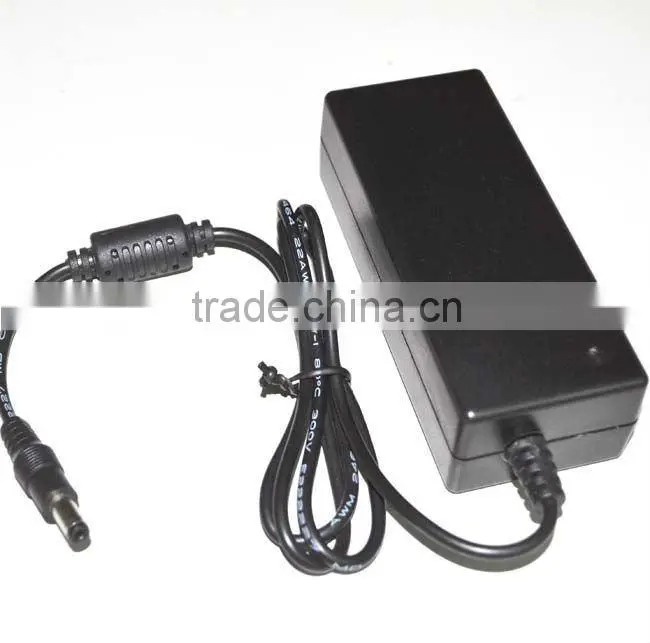

AC DC Adapter 29v 2a for Amplifier, Laptop, Camera

AC DC Adapter 29v 2a for Amplifier, Laptop, Camera thumbnail-1
AC DC Adapter 29v 2a for Amplifier, Laptop, Camera photo-1
US$ 1 - 10 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hylook
Model Number:
HL-P29-020
Contact Supplier Request Quote Chat Now
Shenzhen Hylook Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hylook
Model Number HL-P29-020
Output Type DC
Connection Desktop

 AC DC adapter 29v 2a  for amplifier, laptop, camera





Application:

AC DC Adapter 29V 2A   For amplifier ,laptop,Camera ,LCD TV,LED monitor,TFT Screen,Touch Screen,Laptop,Printer,DVR etc





1.AC DC Power supply Characteristics



1.1 Input Characteristics:



  • 1)Input Rated Voltage. Frequency 100-240V 50/60Hz
  • 2) Input Voltage Range Continuously 90VAC to 264VAC
  • 3) Input Frequency Range Continuously 50Hz to 60Hz Vibration Rate input frequency Continuously 47Hz to 63Hz
  • 4) Input Current 100Vac in/2.0A load 1A Max.
  • 5) Inrush Current: (Cold start) 30A Max .@100VAC cool start
  • 60A Max .@230VAC cool start
  • 6)No Load Power Consumption 100-240Vac in <1W
  • 7) Leakage current: 10mA Max



1.2 Output Characteristics:



  • 1)Output Characteristics: Measured at the end of DC cable
  • 2)Output Rated Voltage No load 29V 28.5-30VDC
  • 2.0A load 29V 28.5-30VDC
  • 3)Output Current At constant voltage mode 0A to 2.0A
  • 4) Output Voltage Ripple and Noise: 100-220Vac in/2.0A load <260mVp-p
  • (0.1uF Ceramic Cap.and 50V 10uF Aluminum Cap. Paralleled between the end of output cable)



1.3 Protection Characteristics



  • 1) Short Circuit Protection: The AC DC Adapter 29V 2A   can withstand continuous short No broken, no smoke in at DC output and no damage, it will enter 30 Minutes into normal condition if the fault condition is removed.
  • 2) Overshoot / Undershoot: 32V±5%



1.4 General characteristics



Efficiency

(Warm up) 100-240Vac in/2.0A load >70%

Switching Frequency

Switching Frequency

Protecion condition

Any protect condition shall cause no damage and no component fail

Recovery

Automatic recovery when removal



1.5 Environmental Characteristics





ITEM CONDITION SPECIFICATION

Insulation Resistance



Between AC input and secondary applied 500Vdc >100M Ωfor 1 minute

Dielectric Strength

(Hi-Pot) Between AC input and secondary DC4242VDC, test No damage

time 1minute,and cut off current shall be less than

Temperature

Operating 0 to 40oC

Storage -20 to +60oC

Humidity

Operating 8%~95%

Storage 5%~95%







1.6 Mechanical Requirement:









  •  Enclosure:The AC DC Adapter 29V 2A size : 118x57.05x37.55 mm
  •  Input Connector: IEC C5  prong plug





2.Reliability



  •  1)Heat-resistance: The  AC DC Adapter 29V 2A
          shall be stored at a temperature of 55+/-2 °C for 16 hours. Then No distortion and

              (Storage) it shall be subjected to standard astrospheres conditions for 2 hours,

  •   2)Heat resistance: The AC DC Adapter 29V 2A
      shall be placed at a temperature of 25+/-2 °C and operating at No abnormity

            (Operation) full load for 4 hours. Measurement shall be made.

  • (3)Cold-resistance: The  AC DC Adapter 29V 2A
     shall be stored at a temperature of -20+/-2 °C for 16 hours. No distortion and
  • (Storage) Then it shall be subjected to standard astrospheres conditions for 2 hour, No function error

             after which measurement shall be made.

  • 4)Cold-resistance: The SMPS shall be placed at a temperature of 0+/-2 °C and operating at No abnormity

             (Operation) rate75% full load for 4 hours. Measurement shall be made.

  • 5)Body surface temp: at a entironment temperature of 23+/-2 °C , 100VAC/2.0A load ≤65°C

             For 2 hours, measure central section of sueface  (thermoelectric couple method)

  • 6) M.T.B.F: 50K Hours At 25°C With 80% Loading No abnormity
  • 7) Life : Average Life Expectancy Or 3 Years







3.About Us:





      We are professionally manufacturing AC DC Adapter 29V 2A
 , Universal adapter, car charger, AC DC Adapter 29V 2A
  , and so on. Original quality, high-technic design, competitive price, just waiting for your test, as first deal with, we can offer sample to you for testing.



AC DC adapter 29v 2a for amplifier, laptop, cameraAC DC adapter 29v 2a for amplifier, laptop, cameraAC DC adapter 29v 2a for amplifier, laptop, cameraAC DC adapter 29v 2a for amplifier, laptop, cameraAC DC adapter 29v 2a for amplifier, laptop, camera

About us:

l HYLOOK produce all different kinds of power adapter,cable and batteries for pos

 terminal,LCD monitors ,Laptop ,Pos printer,musical instrument and all kinds of electronic equipment



l OEM and ODM service are available

l Every pieces of products 100% testing before sending out ,control the defective

 rate to the lowest

l Fast delivery ,very good price

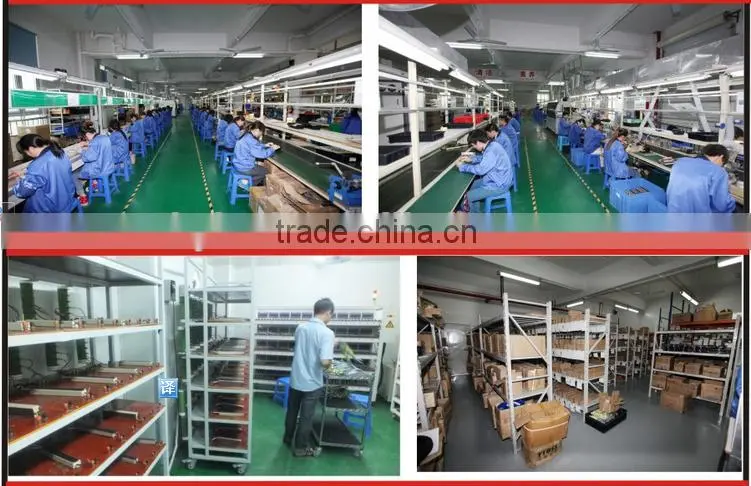

Factory Photo:

AC DC adapter 29v 2a for amplifier, laptop, camera

Inspection procedure :

1.Test procedure:

Semi-finished product test -- -Finished product -Load test --High pot test--Burning in test-Visual inspection before packing



2.Assure low failure rate:

All of our power adapters delivered to you burning in test for 3 hours at 80% load ,to assure low failure rate .Buy with confidence !



AC DC adapter 29v 2a for amplifier, laptop, camera

Advantage:

  • HYLOOK has the widest range of accessories compatible with all major brands

 of POS (EPOS) market (Verifone, Ingenico, Hypercom, Lipman and others).

  • These products represent essential accessories for continuous operation of a

network of POS and maintain asset value minimizing unused equipment.

  • HYLOOK has compatible power supplies for all POS models with electrical

characteristics, specific connectors and certifications that are required in each country.

  • HYLOOK develops data cables to connect POS to PCs, to  PinPads or any

other peripheral devices as barcode readers. MIFARE reader etc.

  • HYLOOK offers power cords and data cables from the most popular models

in the market with the highest levels of technical quality .Each cable requires specific

knowledge of pin out of each POS models of different brands.



Why Choose HYLOOK ?



Quality Assurance:All the products will go through 5 checks during production



Warranty: One-year warranty, the broken power adapters will be replaced and the new lights will be reduce from next order



Production capacity: Monthly production more than 100,000 pcs products exported world-widely.



Competitive price: Factory direct sale, good price.
