Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > 1/3" SONY CMOS 2MP/1080P AHD Camera, OSD 2MP AHD Camera, New Design AHD Camera
1/3" SONY CMOS 2MP/1080P AHD Camera, OSD 2MP AHD Camera, New Design AHD Camera
US$ 22 - 30
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ISEC or OEM
Model Number:
IC-LDMW30-AA2B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
720p/960p/1080p Ahd Camera With Hybrid Ahd Dvr High Definition Analog CameraNegotiableMOQ: 5 Pieces -
720p/960p/1080p AHD Camera, New 2mp AHD Camera With AHD Hybrid DVRUS$ 23.8 - 23.8MOQ: 1 Unit
-
1/3" SONY CMOS 2MP/1080P AHD Camera, 2MP AHD CameraUS$ 22 - 30MOQ: 1 Piece
-
2MP 3.6mm Fixed Lens Metal IR Dome AHD CameraUS$ 18 - 23MOQ: 1 Piece
-
Multipurpose HD Analog Dome Camera 1080p AHD CameraNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
ISEC or OEM
Model Number
IC-LDMW30-AA2B
Type
Analog Camera
Style
Dome Camera
Sensor
Other, CMOS, 1/3" SONY CMOS, 2MP/1080P
Technology
Infrared
Special Features
Waterproof / Weatherproof
Product Description
1/3" SONY CMOS 2MP/1080P AHD camera, OSD 2MP AHD camera, new design AHD camera
Features:
2MP AHD camera
2.8-12mm manual zoom lens
6-15, 9-22mm lens optional
36pcs Ø5mm IR LEDs
IR distance:30m
0lux with IR on
waterproof:IP66
Ø118X102(H)mm
Specification:
Model |
IC-LDMW30-AA2B |
|||
| Item | AHD camera | |||
| Device Type | IMX222+NVP2441H |
|||
| Size | 1/3 | |||
| Day and Night | Yes | |||
| Min.Scene Illumination | 0.01lux(IR ON) | |||
| Infrared sensitivity | Support | |||
| IR Filter | IR-CUT | |||
| IR-led | Yes | |||
| IR distance | 30M | |||
| Electronic shutter | 1/5-1/15,000 /S | |||
| Lens | 2.8-12mm manual zoom lens 6-15, 9-22mm lens optional |
|||
| Focus | manual zoom Lens | |||
| Aperture | Fixed Aperture F1.2 | |||
| Video | ||||
| Compression | H.264 Main Profile/Baseline | |||
| Picture Resolution | 2MP/1080P |
|||
| Steam flow | Support dual stream | |||
| Bit Rate | 128-8192kbps | |||
| Bit Rate Type | CBR/VBR | |||
| S/N Ratio | >50DB | |||
| Image enhancement | Auto White Balance,Backlight compensation,Brightness,Contrast,Saturation adjusted | |||
| Subtitles input | Support channel name, date/time | |||
| Flip Config | Up/down, Left/right | |||
| Audio | Support the microphone input and LINE OUT, support two-way voice intercom equipment | |||
| Audio input/ output | one channel audio input, one channel audio output | |||
| Audio Compression | G.711/G.726 | |||
| Alarm input/output | one channel alarm input, one channel alarm output | |||
| Alarm processing | The control center to monitor, Go to PTZ preset pos, Send E-mail, Log record,SD card storage etc. | |||
| Network | ||||
| Protocal | HTTP,TCP/IP,UDP, SMTP, DDNS, DNS, SNTP,DHCP, FTP, RTP, RTSP,UPNP,ONVIF | |||
| Ethernet | Ethernet (10/100 Base-T),RJ-45 connector | |||
| Safety | IP address filtering,User level password protection,The user access log | |||
| Software | ||||
| WEB Browser | Microsoft Internet Explorer 6.0 and above,google, firefox etc. | |||
| Mobile Phone | Support iPhone, Android, Bit rate: 32K – 512K adjustable, Frame rate: 6–12 fps | |||
| Software Management | CMS and the devices Compatible with ONVIF | |||
| Remote Access | DDNS, Software, P2P | |||
| Power Comsumption | DC 12V, Module power consumption is less than 2W | |||
| Temperature | -20°~60°C | |||
| Humidity | -10~85% |
|||

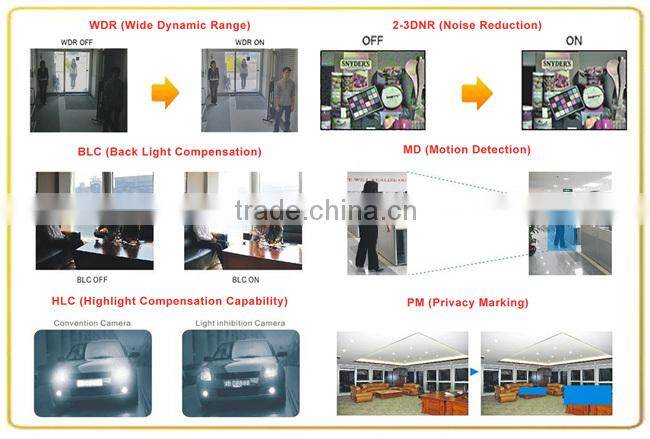

Some functions of AHD camera:
Applications of AHD camera:
