1/3" SONY CMOS 2MP/1080P AHD Camera, 2MP AHD Camera

1/3" SONY CMOS 2MP/1080P AHD Camera, 2MP AHD Camera thumbnail-1
1/3" SONY CMOS 2MP/1080P AHD Camera, 2MP AHD Camera thumbnail-2
1/3" SONY CMOS 2MP/1080P AHD Camera, 2MP AHD Camera thumbnail-3
1/3" SONY CMOS 2MP/1080P AHD Camera, 2MP AHD Camera photo-1

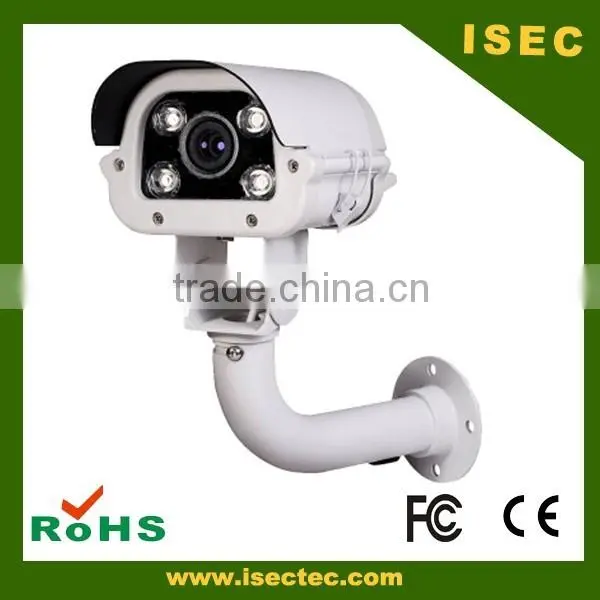

1/3" SONY CMOS 2MP/1080P AHD Camera, 2MP AHD Camera photo-2

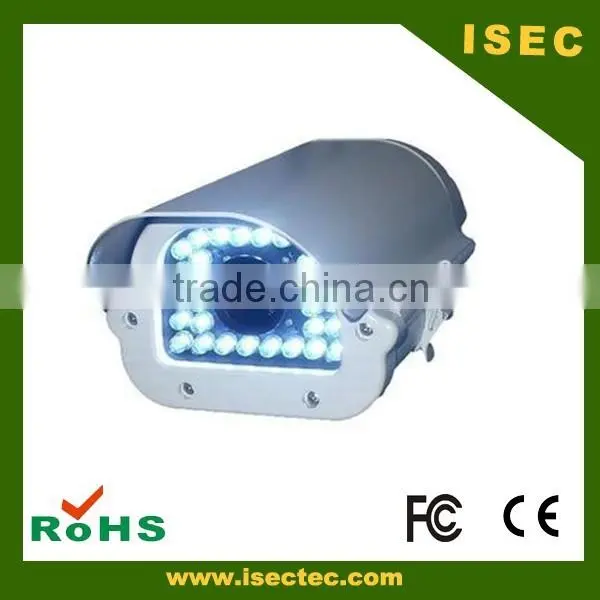

1/3" SONY CMOS 2MP/1080P AHD Camera, 2MP AHD Camera photo-3
US$ 22 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ISEC or OEM
Model Number:
IC-TBW100-AV
Contact Supplier Request Quote Chat Now
Shenzhen Isec Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ISEC or OEM
Model Number IC-TBW100-AV
Type Analog Camera
Style Dome Camera
Sensor Other, CMOS, 1/3" SONY CMOS, 2MP/1080P
Technology Infrared
Special Features Waterproof / Weatherproof



Product Description











1/3" SONY CMOS 2MP/1080P AHD camera, OSD 2MP AHD camera, new design AHD camera



Features:



2MP AHD camera
2.8-12mm manual zoom lens
6-15, 9-22mm lens optional
36pcs Ø5mm IR LEDs
IR distance:30m
0lux with IR on
waterproof:IP66
Ø118X102(H)mm













Specification:



Model

IC-LDMW30-AA2B
Item AHD camera
Device Type

IMX222+NVP2441H
Size 1/3
Day and Night Yes
Min.Scene Illumination 0.01lux(IR ON)
Infrared sensitivity Support
IR Filter IR-CUT
IR-led Yes
IR distance 30M
Electronic shutter 1/5-1/15,000 /S
Lens  2.8-12mm manual zoom lens

6-15, 9-22mm lens optional
Focus manual zoom  Lens
Aperture Fixed Aperture F1.2
Video
Compression H.264 Main Profile/Baseline
Picture Resolution

2MP/1080P
Steam flow Support dual stream
Bit Rate 128-8192kbps
Bit Rate Type CBR/VBR
S/N Ratio >50DB
Image enhancement Auto White Balance,Backlight compensation,Brightness,Contrast,Saturation adjusted
Subtitles input Support channel name, date/time
Flip Config Up/down, Left/right
Audio Support the microphone input and LINE OUT,   support two-way voice intercom equipment
Audio input/ output one channel audio input, one channel audio   output
Audio Compression G.711/G.726
Alarm input/output one channel alarm input, one channel alarm   output
Alarm processing The control center to monitor, Go to PTZ preset   pos, Send E-mail, Log record,SD card storage etc.
Network
Protocal HTTP,TCP/IP,UDP, SMTP, DDNS, DNS, SNTP,DHCP,   FTP, RTP, RTSP,UPNP,ONVIF
Ethernet Ethernet (10/100 Base-T),RJ-45 connector
Safety IP address filtering,User level password   protection,The user access log
Software
WEB Browser Microsoft Internet Explorer 6.0 and   above,google, firefox etc.
Mobile Phone Support iPhone, Android, Bit   rate: 32K – 512K adjustable,   Frame rate: 6–12 fps
Software Management CMS and the devices Compatible   with ONVIF
Remote Access DDNS, Software, P2P
Power Comsumption DC 12V, Module power consumption is less than 2W
Temperature -20°~60°C
Humidity -10~85%

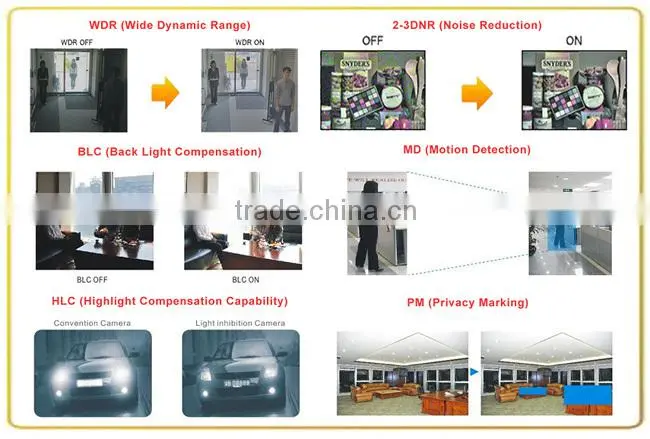

Some functions of AHD camera:



1/3" SONY CMOS 2MP/1080P AHD camera, 2MP AHD camera





 Applications of AHD  camera:







Packaging & Shipping





1/3" SONY CMOS 2MP/1080P AHD camera, 2MP AHD camera
