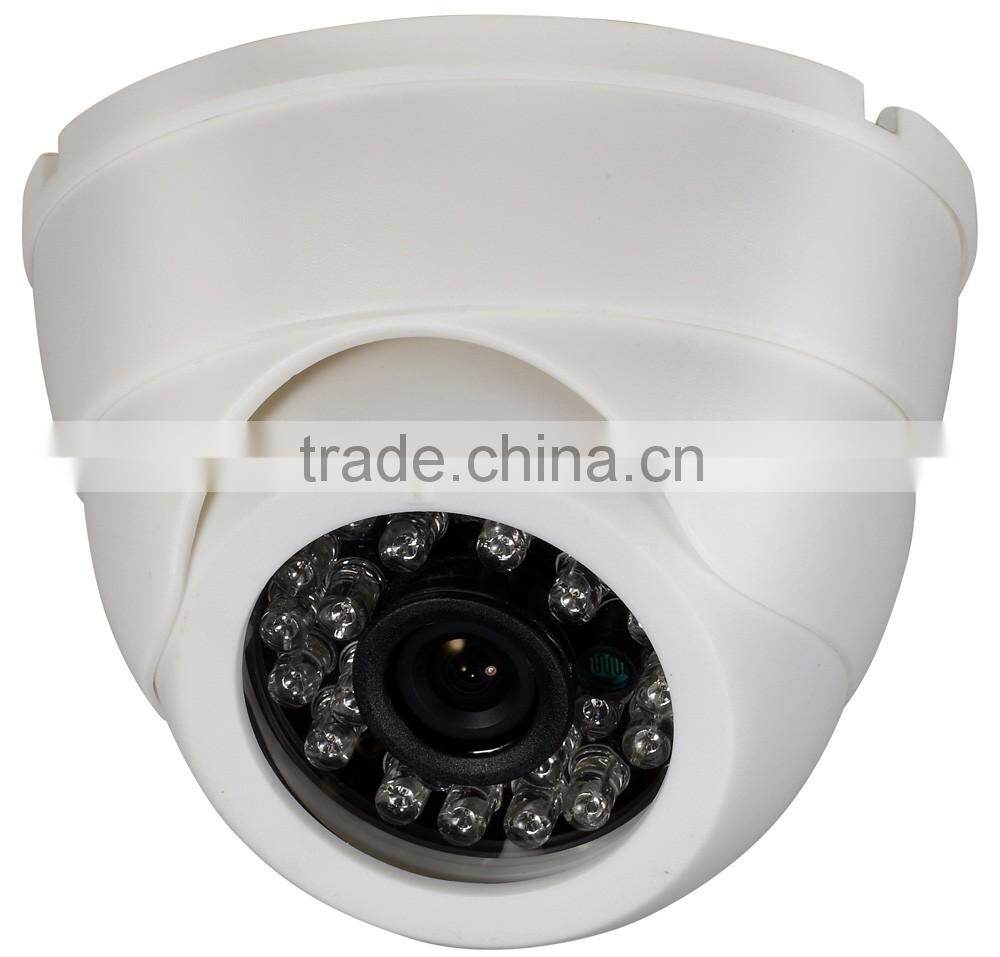

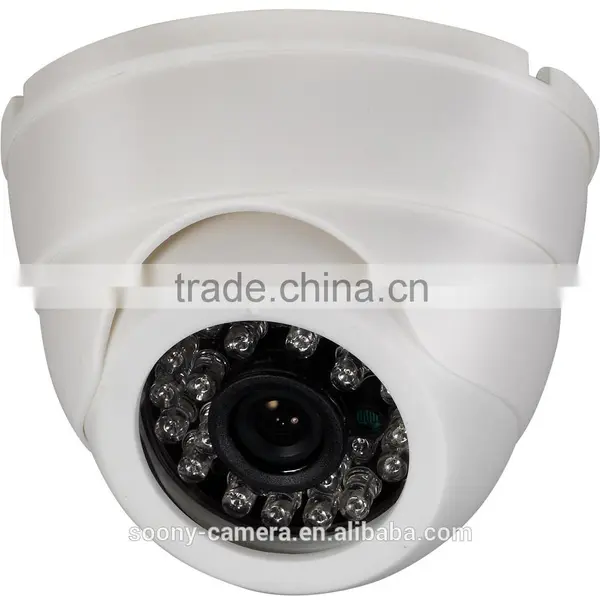

Multipurpose HD Analog Dome Camera 1080p AHD Camera

Multipurpose HD Analog Dome Camera 1080p AHD Camera thumbnail-1
Multipurpose HD Analog Dome Camera 1080p AHD Camera photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ISEC / OEM / Neutral
Model Number:
IC-LD20-AAseries
Contact Supplier Request Quote Chat Now
Shenzhen Isec Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ISEC / OEM / Neutral
Model Number IC-LD20-AAseries
Type Analog Camera
Style Dome Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof

Multipurpose  HD  Analog Dome Camera 1080p AHD Camera

Product Description
Multipurpose HD Analog Dome Camera 1080p AHD Camera





What's the main features about the AHD domecamera?



> 720P/960P/1080P AHD camera
> 3.6mm 3MP fixed lens, 2.8/6mm option
> AHD and analog signal input, easy to connect to CRT monitor or CCTV camera tester while installing camera.
> D-WDR, 3DNR, HLC, BLC, Sense up (DSS), Defog, Motion Detection etc.
> 24pcs Ø5mm IR LED, about 20 meters IR distance
> White case



 What's the specification about    Multipurpose  HD  Analog Dome Camera 1080p AHD Camera    ?



Model NO. IC-LD20-AA7H IC-LD20-AA7F IC-LD20-AA9B IC-LD20-AA9A IC-LD20-AA2A IC-LD20-AA2B IC-LD20-AA2C
VIDEO
Image Device 1/4" 1MP H42 1/3" 1.3MP SC1035  1/3" 1.3MP  IMX225 1/2.7" 2MP OV2710 1/2.9" 2MP IMX322 1/2.7 2MP PC2210
Sensor Type CMOS
DSP NVP2432H HD8901 NVP2431H NVP2441H NVP6021
TV System PAL/NTSC
Image Resolution 1280(H)x720(V) , 1MP 1280(H)x960(V) , 1.3MP 1920(H)x1080(V) , 2MP
Scanning System Progressive Scan
Synchronization Internal
Frame rate PAL: 25fps,720P(1280x720); NTSC: 30fps,720P(1280x720) PAL: 25fps,960P(1280x960); NTSC: 30fps,960P(1280x960) PAL:25fps,1080P(1920x1080); NTSC:30fps,1080(1920x1080)
Min. Illumination Color: 1.0lux,F1.2;     B/W: 0 Lux(IR ON) Color: 0.1lux,F1.2; B/W: 0 Lux(IR ON)
S/N Ratio >50dB
Video Output AHD(720P) AHD(720P)/CVI(720P)/TVI(720P)/CVBS(960H) AHD(960P) / CVBS (960H) AHD(1080P) / CVBS (960H)
LENS
Focal Length 3.6mm 3MP board lens
IR-CUT 3MP IR filter cut







aging & Shipping

Packaging & Shipping





Packing



♦ Package: 50pcs / carton

♦ Carton size:  42.4*40.4*42.4 cm

 Multipurpose HD Analog Dome Camera 1080p AHD Camera

Shipping



 Multipurpose HD Analog Dome Camera 1080p AHD Camera



Our Services





Our Services



Why choose us?

u  Provide one-stop-products: from CCTV camera, IP camera, DVR to NVR, video balun, etc to meet your whole project needs.

u  9 years R&D and export experience and leading and professional manufacturer in CCTV industry.

u  High quality (material) with competitive and reasonable price.

u  2 year warranty and lifetime maintenance.

u  Fast delivery: usually within 3-10 work days since payment arrived.

u  Professional technical support; Best pre-sale, sale and after-sale service.

u  Welcome OEM & ODM, mixed order.

u  CE, FCC, RoHS passed.



Quality Control:

u  All raw materials are carefully selected and inspected.

u  Advanced production equipment is used and routinely inspected and serviced.

u  All operators and employees are thoroughly trained.

u  All products have passed the European Union RoHS standard and are CE, FCC certified.

u  Professional logistics personnel are employed to control the damage during the physical distribution of products.

Company Information



Company Information

 What our company look like?



Shenzhen Isec Tchnologies Co., Ltd is a leading manufacturer of  security dome cameras, cctv camera, analog cameras, IP cameras, HD-SDI cameras, DVR, NVR, and accessories in Shenzhen, China.





 Multipurpose HD Analog Dome Camera 1080p AHD CameraMultipurpose HD Analog Dome Camera 1080p AHD Camera



FAQMultipurpose HD Analog Dome Camera 1080p AHD Camera





------------------------------------------------------------------More Products, please click below----------------------------------------------------------



Multipurpose HD Analog Dome Camera 1080p AHD Camera



New arrival: Hd hd analog camera 1080p ahd camera  warmly welcome your inquiry about our products!
