Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > OEM 1.3 Megapixel 960P Bus Security Mini AHD Camera

OEM 1.3 Megapixel 960P Bus Security Mini AHD Camera

Name: OEM 1.3 Megapixel 960P Bus Security Mini AHD Camera
Brand: ISEC or OEM
SKU: 100463059
Availability: InStock

OEM 1.3 Megapixel 960P Bus Security Mini AHD Camera thumbnail-1

OEM 1.3 Megapixel 960P Bus Security Mini AHD Camera thumbnail-2

OEM 1.3 Megapixel 960P Bus Security Mini AHD Camera thumbnail-3

OEM 1.3 Megapixel 960P Bus Security Mini AHD Camera photo-1

OEM 1.3 Megapixel 960P Bus Security Mini AHD Camera photo-2

OEM 1.3 Megapixel 960P Bus Security Mini AHD Camera photo-3

US$ 18 - 24 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ISEC or OEM

Model Number:

IC-H-CA7 series

Contact Supplier Request Quote Chat Now

Shenzhen Isec Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ISEC or OEM

Model Number IC-H-CA7 series

Type Analog Camera

Style Hidden Camera

Sensor Other, CMOS, 1.3MP/1MP CMOS sensor

Technology Infrared

Special Features Waterproof / Weatherproof

Product Description

OEM 1.3 Megapixel 960P bus security mini AHD camera

Features:

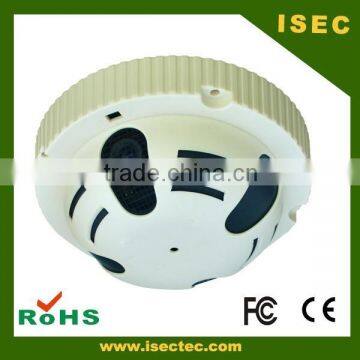

Smoke Detector Hidden Camera MIni AHD camera
built-in 3.6mm board lens 2.1/2.8/6 mm pinhole lens are optional
Ø124.5x52.6mm
0.28kg (Volume: 0.55kg)

Specification:

Model	IC-H-CA7	IC-H-CA7B	IC-H-CA7C	IC-H-CA7D
Item	AHD camera
Device Type	1/4" 1MP CMOS Sensor, OV9712+NVP2431H, OSD	1/3" 1.3MP CMOS Sensor, IMX238+NVP2431H, OSD	1/4" 1MP CMOS Sensor, AR0141A+NVP2431H, OSD	1/3" 1.3MP CMOS Sensor, AP0130+NVP2431H, OSD
Size	1/4'	1/3'	1/4'	1/3'
Day and Night	Yes
Min.Scene Illumination	0.01lux(IR ON)
Infrared sensitivity	Support
IR Filter	IR-CUT
IR-led	Yes
Electronic shutter	1/5-1/15,000 /S
Lens	built-in 3.6mm board lens 2.1/2.8/6 mm pinhole lens are optional
Focus	fixed Lens
Aperture	Fixed Aperture F1.2
Video
Compression	H.264 Main Profile/Baseline
Picture Resolution	1MP (720P):1280x720@25fps	1.3MP (960P):1280×960@25fps	1MP (720P):1280x720@25fps	1.3MP (960P):1280×960@25fps
Steam flow	Support dual stream
Bit Rate	128-8192kbps
Bit Rate Type	CBR/VBR
S/N Ratio	>50DB
Image enhancement	Auto White Balance,Backlight compensation,Brightness,Contrast,Saturation adjusted
Subtitles input	Support channel name, date/time
Flip Config	Up/down, Left/right
Audio	Support the microphone input and LINE OUT, support two-way voice intercom equipment
Audio input/ output	one channel audio input, one channel audio output
Audio Compression	G.711/G.726
Alarm input/output	one channel alarm input, one channel alarm output
Alarm processing	The control center to monitor, Go to PTZ preset pos, Send E-mail, Log record,SD card storage etc.
Network
Protocal	HTTP,TCP/IP,UDP, SMTP, DDNS, DNS, SNTP,DHCP, FTP, RTP, RTSP,UPNP,ONVIF
Ethernet	Ethernet (10/100 Base-T),RJ-45 connector
Safety	IP address filtering,User level password protection,The user access log
Software
WEB Browser	Microsoft Internet Explorer 6.0 and above,google, firefox etc.
Mobile Phone	Support iPhone, Android, Bit rate: 32K – 512K adjustable, Frame rate: 6–12 fps
Software Management	CMS and the devices Compatible with ONVIF
Remote Access	DDNS, Software, P2P
Power Comsumption	DC 12V, Module power consumption is less than 2W
Temperature	-20°~60°C
Humidity	-10~85%
