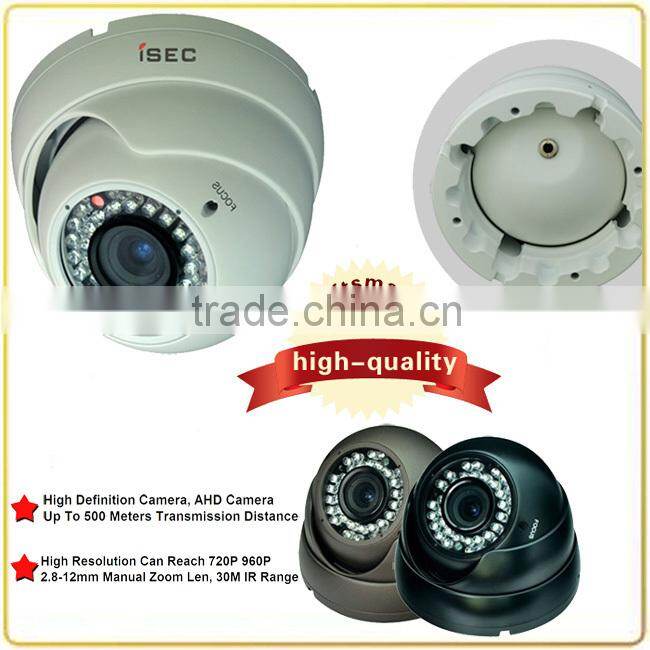

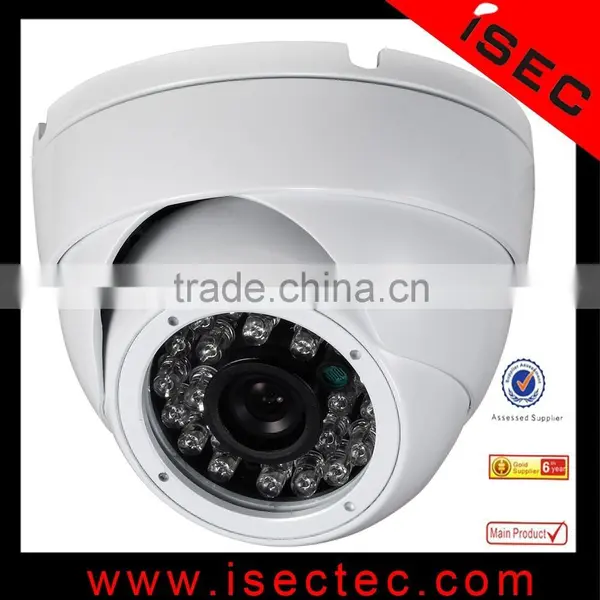

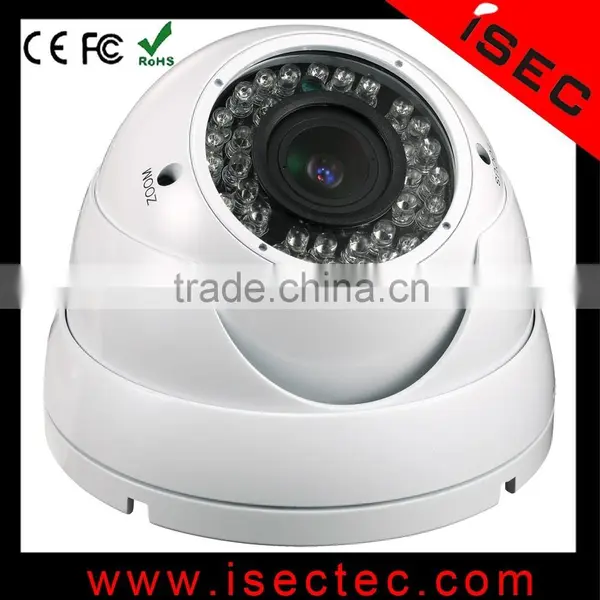

2014 Hot Selling 1.3 Megapixel IR Dome Cctv AHD Camera
Feature:
What is AHD Camera?
What is Image Effect Of AHD Camera?
What are features of ISEC AHD Camera?
What is Specification of ISEC AHD Camera?
Model NO. |
IC-LDMW30-FA7 |
IC-LDMW30-FA7B |
IC-LDMW30-FA7C |
IC-LDMW30-FA7D |
VIDEO | ||||
Image Device |
1/4" 1MP OV9712 CMOS |
1/3" 1.3MP IMX238 CMOS |
1/4" 1MP AR0141A CMOS |
1/3" 1.3MP AR0130 CMOS |
DSP |
NVP2431 |
|||
TV System |
PAL/NTSC |
|||
Effective Pixels |
1280(H)×720(V) , 1MP |
1280(H)*960(V) 1.3MP |
1280(H)×720(V) , 1MP |
1280(H)*960(V) 1.3MP |
Scanning System |
Progressive Scan |
|||
Synchronization |
Internal |
|||
Image Resolution |
1280*720(720P) |
1280*960(960P) |
1280*720(720P) |
1280*960(960P) |
Frame rate |
PAL: 25fps 720P(1280×720); NTSC: 30fps 720P(1280×720) |
|||
Min. Illumination |
Color: 1.0lux F1.2; B/W: 0 Lux(IR ON) |
|||
S/N Ratio |
>50dB |
|||
Video Output |
AHD/CVBS (960H) |
|||
Focal Length |
2.8-12mm manual zoom lens |
|||
IR-CUT |
3MP IR filter cut |
|||
Day & Night |
AUTO /COLOR /B/W /EXT |
|||
D-WDR |
OFF/ON/AUTO |
|||
Noise Reduction |
3DNR: OFF/Low / Middle / High |
|||
Back Light |
BLC/HSBLC/OFF |
|||
Auto Gain Control |
0~15 Adjustable |
|||
Defog |
OFF / AUTO |
|||
Motion Dectection |
ON(Motion area and sensitivity can be settled)/OFF |
|||
Sense Up |
OFF/AUTO(2X~30X Adjustable) |
|||
Pricacy Mask |
OFF/ON(8 Masks) |
|||
Electronic Shutter Speed |
2X~30X/AUTO/1/50 ~ 1/50,000sec |
|||
White Balance |
ATW/AWC→SET/INDOOR/OUTDOOR/MANUAL/AWB |
|||
Brightness |
0~100 Adjustable |
|||
Mirror |
OFF/MIRROR/V-FLIP/ROTATE |
|||
Sharpness |
OFF/AUTO(Level,Start AGC and End AGC can be settled) |
|||
OSD Language |
English, Chinese, Spanish, German, French, Russian, Portuguese, Italian, Polska, Nederland, Turkish |
|||
IR Distance |
about 30 Meters |
|||
Infrared Spectrum |
850nm |
|||
Input Current |
400mA |
|||
Adapter Requirement |
DC 12V, 1A |
|||
Water-proof |
IP66 |
|||
Color |
White case |
|||
Dimensions |
Ø119X83(H)mm |
|||
Net Weight |
0.85kg/pcs |
|||
Operation Temperature |
-10℃~ +50℃ |
|||
Storage Temperature |
-20℃~ +60℃ |
|||
How to connect AHD Camera DVR?
Where does ISEC AHD Camera use?
Packaging & Shipping:
Why Choose Us?
♦ We are Alibaba Assessed 6 years Gold Supplier.
♦ We are a factory manufacturing Cctv Cameras, Withmore than 9 Years experience.
♦ Strictly Quality Control: More than 12 hours aging before sending,Ce,Fcc,Rohs.
♦ Competitive Price: Factory price (EXW), Big discount for bulk order.
♦ Technical support: Provide all-around technical support and counselling all the time.
Our Security Equipment:
Customers Feedback:
Factory View:
Our Certifications:
Factory Activities:
FAQ:
Q1: What is the Warranty for the camera?
A1: For the cameras,we have 2 years warranty.If any quality problems on our side occured in this period ,free repair or replace units are available.
Q2: What is the estimate delivery time?
A2: Factory usually need 3-4 working days to prepare sample order, around 5-7 working days for bulk order .
Q3: What is your payment term?
A3: We accept T/T, Western Union, Paypal, Escrow, L/C at present .
Q4: Do you offer Oem service?
A4: Oem service is available in our factory, Could you tell us which is suitable for you please: special design,customize specification, logo silk print or customize retail boxes?
