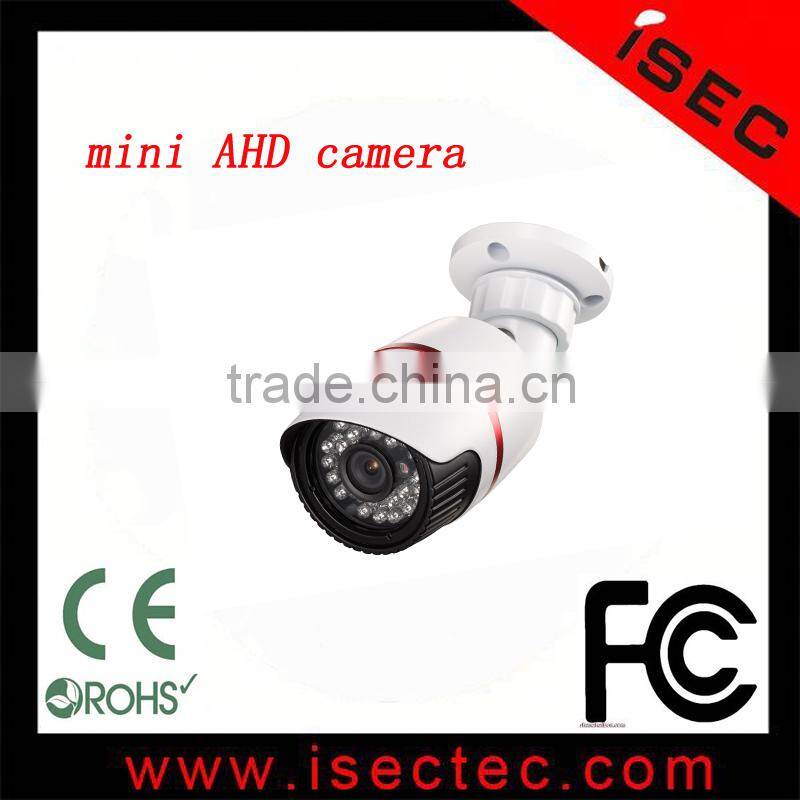

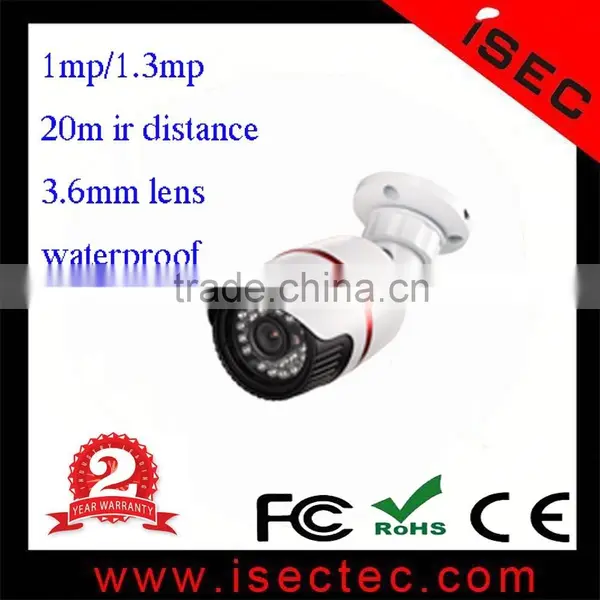

1mp 1.3mp Bullet Dome Cctv Ahd Camera

1mp 1.3mp Bullet Dome Cctv Ahd Camera photo-1
1mp 1.3mp Bullet Dome Cctv Ahd Camera photo-2
1mp 1.3mp Bullet Dome Cctv Ahd Camera photo-3
1mp 1.3mp Bullet Dome Cctv Ahd Camera photo-4
1mp 1.3mp Bullet Dome Cctv Ahd Camera photo-5
1mp 1.3mp Bullet Dome Cctv Ahd Camera photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ISEC / OEM / Neutral
Model Number:
IC-LBW20-MA7 series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name ISEC / OEM / Neutral
Model Number IC-LBW20-MA7 series
Type Analog Camera
Style Bullet Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof

                                         1mp 1.3mp bullet dome cctv ahd camera

Product Description



1mp 1.3mp bullet dome cctv ahd camera



♦ Product type:   1mp 1.3mp bullet dome cctv ahd camera

♦ 720p/960p optional,

♦ Innovative Double Program Technology One program for daytime, bring out the real color of  objects; another program for nighttime, bring out clear picture at IR LED working, improve 40% sensitivity than a normal IR camera.

♦ IP66, Fully weatherproof and dustproof.

♦ 24pcs IR LEDs, 20m IR night vision.

♦ 3.6mm fixed Lens,2.8mm/6mm lens for optional  .

♦ Black Aluminum Alloy Housing.

♦ Wall mount  installation high quality security bullet cameras.



Specifications about  1mp 1.3mp bullet dome cctv ahd camera .





Model NO.

IC-LBW20-MA7

IC-LBW20-MA7B

IC-LBW20-MA7C

IC-LBW20-MA7D

VIDEO

Image Device

1/4" 1MP OV9712 CMOS

1/3" 1.3MP  IMX238 CMOS

1/4" 1MP AR0141A CMOS

1/3" 1.3MP AR0130 CMOS

DSP

NVP2431

TV System

PAL/NTSC

Effective Pixels

1280(H)×720(V) , 1MP

1280(H)*960(V) 1.3MP

1280(H)×720(V) , 1MP

1280(H)*960(V) 1.3MP

Scanning System

Progressive Scan

Synchronization

Internal

Image Resolution

1280*720(720P)

1280*960(960P)

1280*720(720P)

1280*960(960P)

Frame rate

PAL: 25fps 720P(1280×720); NTSC: 30fps 720P(1280×720)

Min. Illumination

Color: 1.0lux F1.2; B/W: 0 Lux(IR ON)

S/N Ratio

>50dB

Video Output

AHD/CVBS (960H)

LENS

Focal Length

3.6mm lens
2.8/6mm lens optional

IR-CUT

3MP IR filter cut

OPERATIONAL(OSD MENU)

Day & Night

AUTO /COLOR /B/W /EXT

D-WDR

OFF/ON/AUTO

Noise Reduction

3DNR: OFF/Low / Middle / High

Back Light

BLC/HSBLC/OFF

Auto Gain Control

0~15 Adjustable

Defog

OFF / AUTO

Motion Dectection

ON(Motion area and sensitivity can be settled)/OFF

Sense Up

OFF/AUTO(2X~30X Adjustable)

Pricacy Mask

OFF/ON(8 Masks)

Electronic Shutter Speed

2X~30X/AUTO/1/50 ~ 1/50,000sec

White Balance

ATW/AWCSET/INDOOR/OUTDOOR/MANUAL/AWB

Brightness

0~100 Adjustable

Mirror

OFF/MIRROR/V-FLIP/ROTATE

Sharpness

OFF/AUTO(Level,Start AGC and End AGC can be settled)

OSD Language

English, Chinese, Spanish, German, French, Russian, Portuguese, Italian, Polska, Nederland, Turkish

General

Infrared LED

24pcs Ø5mm IR LEDs

IR Distance

about 20 Meters

Infrared Spectrum

850nm

Input Current

400mA

Adapter Requirement

DC 12V, 1A

Water-proof

IP66

MECHANICAL

Color

White case

Bracket

/

ENVIRONMENTAL

Operation Temperature

-10~ +50

Storage Temperature

-20~ +60



Packaging & Shipping
&

What's the packing about   1mp 1.3mp bullet dome cctv ahd camera?



♦ Package: 50pcs / carton

♦ Carton size:  42.4*40.4*42.4 cm

1mp 1.3mp bullet dome cctv ahd cameraShipping



   1mp 1.3mp bullet dome cctv ahd camera

Our Services

s

Why choose us?



u  Provide one-stop-products: from CCTV camera, IP camera, DVR to NVR, video balun, etc to meet your whole project needs.



u  9 years R&D and export experience and leading and professional manufacturer in CCTV industry.



u  High quality (material) with competitive and reasonable price.



u  2 year warranty and lifetime maintenance.



u  Fast delivery: usually within 3-10 work days since payment arrived.



u  Professional technical support; Best pre-sale, sale and after-sale service.



u  Welcome OEM & ODM, mixed order.



u  CE, FCC, RoHS passed.







Quality Control:



u  All raw materials are carefully selected and inspected.



u  Advanced production equipment is used and routinely inspected and serviced.



u  All operators and employees are thoroughly trained.



u  All products have passed the European Union RoHS standard and are CE, FCC certified.



u  Professional logistics personnel are employed to control the damage during the physical distribution of products.







C



Company Information



Shenzhen Isec Tchnologies Co., Ltd is a leading manufacturer of  security dome cameras, cctv camera, analog cameras, IP cameras, HD-SDI cameras, DVR, NVR, and accessories in Shenzhen, China.





 1mp 1.3mp bullet dome cctv ahd camera



 1mp 1.3mp bullet dome cctv ahd camera
