Product Details
| Place of Origin: | Guangdong, China | Brand Name: | ISEC or OEM | Model Number: | IC-TBW25-BA7 series |
| Type: | Analog Camera | Style: | Dome Camera | Sensor: | Other, CMOS, 1.3MP/1MP CMOS sensor |
| Technology: | Infrared | Special Features: | Waterproof / Weatherproof |
Product Description
Product Description

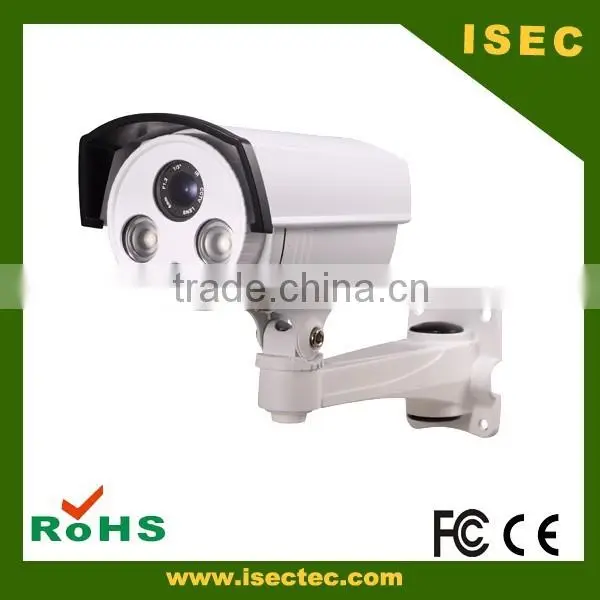

960P AHD Camera High Definition Night Vision Better than HD-SDI HD-CVI TVI CCTV Camera
Features:
Waterproof IR Bullet 960p AHD camera
3.6mm lens
2.8/6mm lens option
2pcs Array LED
IR distance:25m
0 lux with IR on
waterproof:IP66
Specification:
| Model | IC-TBW25-BA7 | IC-TBW25-BA7B | IC-TBW25-BA7C | IC-TBW25-BA7D |
| Item | AHD camera | |||
| Device Type | 1/4" 1MP CMOS Sensor, OV9712+NVP2431H, OSD | 1/3" 1.3MP CMOS Sensor, IMX238+NVP2431H, OSD | 1/4" 1MP CMOS Sensor, AR0141A+NVP2431H, OSD | 1/3" 1.3MP CMOS Sensor, AP0130+NVP2431H, OSD |
| Size | 1/4' | 1/3' | 1/4' | 1/3' |
| Day and Night | Yes | |||
| Min.Scene Illumination | 0.01lux(IR ON) | |||
| Infrared sensitivity | Support | |||
| IR Filter | IR-CUT | |||
| IR-led | Yes | |||
| IR distance | 25M | |||
| Electronic shutter | 1/5-1/15,000 /S | |||
| Lens | 3.6mm lens 2.8/6mm lens option | |||
| Focus | manual zoom Lens | |||
| Aperture | Fixed Aperture F1.2 | |||
| Video | ||||
| Compression | H.264 Main Profile/Baseline | |||
| Picture Resolution | 1MP (720P):1280x720@25fps | 1.3MP (960P):1280×960@25fps | 1MP (720P):1280x720@25fps | 1.3MP (960P):1280×960@25fps |
| Steam flow | Support dual stream | |||
| Bit Rate | 128-8192kbps | |||
| Bit Rate Type | CBR/VBR | |||
| S/N Ratio | >50DB | |||
| Image enhancement | Auto White Balance,Backlight compensation,Brightness,Contrast,Saturation adjusted | |||
| Subtitles input | Support channel name, date/time | |||
| Flip Config | Up/down, Left/right | |||
| Audio | Support the microphone input and LINE OUT, support two-way voice intercom equipment | |||
| Audio input/ output | one channel audio input, one channel audio output | |||
| Audio Compression | G.711/G.726 | |||
| Alarm input/output | one channel alarm input, one channel alarm output | |||
| Alarm processing | The control center to monitor, Go to PTZ preset pos, Send E-mail, Log record,SD card storage etc. | |||
| Network | ||||
| Protocal | HTTP,TCP/IP,UDP, SMTP, DDNS, DNS, SNTP,DHCP, FTP, RTP, RTSP,UPNP,ONVIF | |||
| Ethernet | Ethernet (10/100 Base-T),RJ-45 connector | |||
| Safety | IP address filtering,User level password protection,The user access log | |||
| Software | ||||
| WEB Browser | Microsoft Internet Explorer 6.0 and above,google, firefox etc. | |||
| Mobile Phone | Support iPhone, Android, Bit rate: 32K – 512K adjustable, Frame rate: 6–12 fps | |||
| Software Management | CMS and the devices Compatible with ONVIF | |||
| Remote Access | DDNS, Software, P2P | |||
| Power Comsumption | DC 12V, Module power consumption is less than 2W | |||
| Temperature | -20°~60°C | |||
| Humidity | -10~85% | |||
Some functions of 960p AHD camera:
