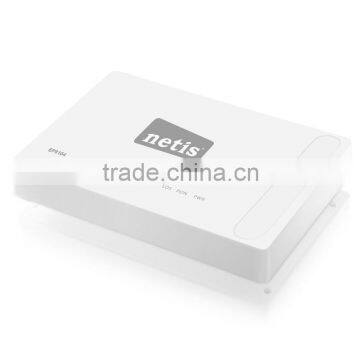

Netis 4 Ports Fast Ethernet EPON Terminal
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Brand Name:
netis
Model Number:
EP8104
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Netis 1 Port Gigabit GPON TerminalNegotiableMOQ: 1000 Pieces -
Netis 1 Port Gigabit EPON TerminalNegotiableMOQ: 1000 Pieces
-
Netis 8 Ports EPON Optical Line TerminalNegotiableMOQ: 100 Pieces
-
Netis 2 Ports Fast Ethernet Plus 1 POTS GPON TerminalNegotiableMOQ: 1000 Sets
-
Netis EPON ONU for FTTC, FTTB, FTTHNegotiableMOQ: 1000 Sets
Products Status
Stock
Brand Name
netis
Model Number
EP8104
Place of Origin
Guangdong, China
What it does
The netis EP8104ONU (Optical Networking Unit) is an IEEE 802.3-2005 standards compliant product. Carrier class QoS and security are implemented with a variety of classification and filtering rules. It‘s a Fanless ONU, ideal for home applications. When connecting with the EP8208 EPON OLT (Optical Line Terminal) it can offer 1Gbps symmetrical Ethernet transmission over an ODN (Optical Distribution Network).
Features
- Complies with IEEE 802.3-2005& CTC 2.1
- IEEE 802.3-2005 compliant EPON ONU device
- Up to 1.25Gbps for upstream/ downstream speed
- Maximum transfer distance up to 20Km
- Automatic discovery and authorization, plug and play
- AES-128 encryption
- Customized Quality of Service for assured SLA
- IEEE 802.1p priority (SP/WRR/SP+WRR)
- Advanced Layer2 switching features, IGMP Snooping, IEEE 802.1q VLAN, Rate Limitation, MAC Address management
- Supports Dying Gasp function
- Supports Triple churning
- Remote management based on OAM, Local management through Web-based GUI

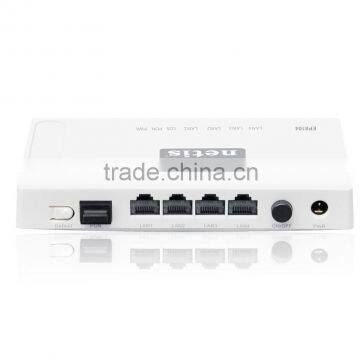

- 1* SFF/SC PON port, 4* 10/100Mbps auto-negotiation and auto-MDI/MDIX RJ45 LAN ports
Specification
| Hardware | |
| Interface | 1 * SFF/SC PON port 4 * 10/100Mbps auto-negotiation and MDI/MDIX RJ45 LAN port |
| Data Rate | Upstream 1.25Gbps Downstream 1.25Gbps |
| Distance | 0-20KM |
| Splitting Ratio | 1:32(20KM) 1:64(10KM) |
| Optical Power | -1~+4dBm |
| Receive Sensitive | -25.5dBm |
| LED | LAN4-LAN1LOS PON PWR |
| Button | Power on/off Default |
| Power Adapter | External 12V1A |
| Power consumption | <10W (MAX) |
| Dimensions(L x W x H ) | 143(L)*87(W)*29 (H)mm |
| Weight | 127g |
| Software | |
| Standard | IEEE 802.3-2005 IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.1p, IEEE 802.1q |
| QoS | Service Flow Classification based on MAC Address/VLAN/ IP Address /DSCP /L4 port, 802.3x flow control, Schedule rules Support SP/WRR/SP+WRR, Upstream Priority Label Support 802.1p User Priority, Rate Limit and Traffic shaping, Congestion Control Support Tail-Drop/WRED/RED |
| VLAN | 802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode |
| Advanced Features | Authentication based on Loid and Password,or base on MAC Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) , Optical power detection, Dying Gasp, Terminal Silent mechanism, Ethernet port loop testing |
| Security | AES Encryption, Triple churning Illegal Frame/Illegal Multicast Filtering |
| Management | Managed by Web and OAM, Specified the management IP/MAC, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic, System Log |
| IGMP | IGMP v2/v3 IGMP Snooping |
| Others | |
| Environment | Operating Temperature: 0℃~40℃(32°F~104°F) Storage Temperature: -40℃~70℃(-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Package | 1 * EP8104 1 * 12V/1A Power Adapter 1 * Ethernet Cable 1 * Quick Installation Guide |
