Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Energy System > Home Solar Energy System With 12V PWM Solar Controller

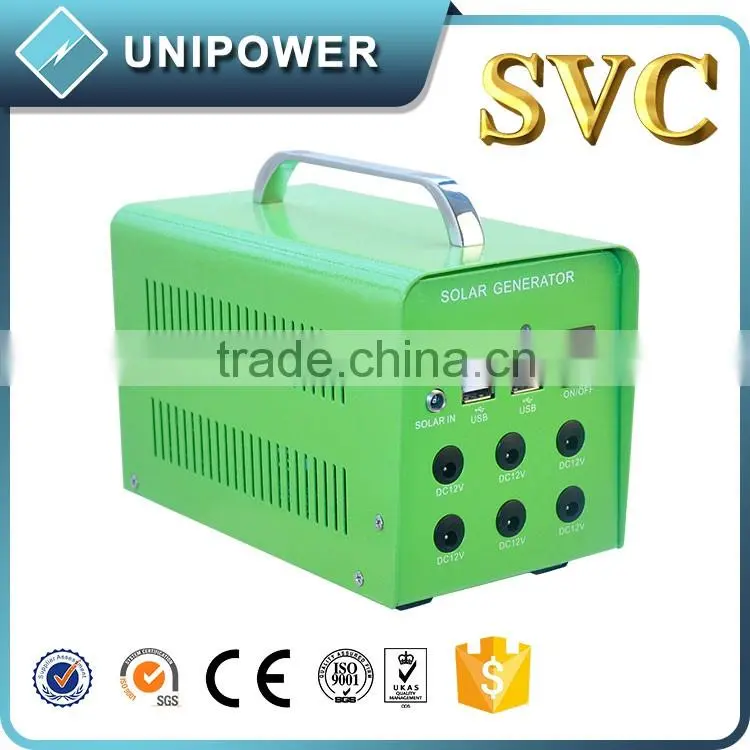

Home Solar Energy System With 12V PWM Solar Controller

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SVC

Model Number:

SPV-150-9 /SPV-150-9A

Contact Supplier Request Quote Chat Now

Foshan Unipower Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Foshan/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SVC

Model Number SPV-150-9 /SPV-150-9A

Specification Normal

Application Home

Output Voltage (V) 200-240VAC

Solar Power (W) 150

Work Time (h) Optional

Home Solar Energy System With 12V PWM Solar Controller

Model #			SPV-S-1507	SPV-S-1509	SPV-S-15012
PV/Solar panel PV		Voltage	12V
		Power	60W
PWM solar controller		Voltage	12V
		Current	5A
		PV maximum voltage	21V
Battery		Type of battery	Sealed maintenance free lead-acid battery
		QTY and Capacity of batteries	12V/7Ah*1	12V/9Ah*1	12V/12Ah*1
		Discharge current	2A
		Float voltage	13.5-13.8Vdc
DC System		USB	2pcs of 5V/2A
		DC output	4outlets: Total 5A
AC System		Rated power	60W
		Voltage	230VAC±10%)
		Wave form	Modified Sine Wave
		Frequency	50/60Hz
		No-load current	<0.3A
Characteristics of charge and discharge		Charge time	5-7Hours
		Time of duration	14-16Hours (3W LED light)	18-20Hours (3W LED light)	22-24Hours (3W LED light)
PHYSICAL
Unit dimension(mm)			190125150mm
Net weight(KG)			5.5	5.8	7.2
Evironment of performance			Indoor or outdoor with water proof measures, Temperature 0℃~40℃, Humidity 20%~90%, Non condensate
Noise level			Less than 40db
Note: It must used with the adapter which the output voltage and the current is 17V3A.
Note:	The quotation above is based on MOQ:100pcs Delivery time: 20~25days. Please contact our sales for more details of futher requirements.

Features:

1.Solar dynamoelectric systems tranfer sunlight directly to electronic power, without oil, steam, coal and other fuels. Comprehensively enphances people's life quality of the area has no electricity without any other cost.

2.Our Solar dynamoelectric systems apply 1.0MM cold plate welding shell. Nicely Appearance and surface spray treatment makes it more suitable for wild environment.

3. Application of poly cryatal (mono crystal ) solar panel, toughened glass and aluminum frame layer makes it durable and easy to carry.

4.It's a simple tyle of input and output device, convenient operation and no debugging.

5.LED display, intuitive display status of chaiging and operation.

6.Fully protection of overcharge, like low & high voltage, high temperature, short circuit and overload etc.

7.The standard of Solar dynamoelectric systems have 4 outlets of 12V/1.5A/DC, and 12V3W LED energy saving lamp ( same brightness as 30W standard bulb, it's suitable in anyplace for illumination). LED light can be changed according to customer's requirements.

8.The special step-down circuit for USB is fully adapts to the lithium battery of mobile phone and other digital products charge.

9.There is an 115V/230V AC inverter system, Modified Sine Wave output (optional).

Field of application

Outdoor camping,home power failure, sea fishing, beekeeping, go hunting, woods guard, orchard planting, vegetable field, forest district, pastoral areas, corridor lighting, mobile phone charging etc.

Our Services

Our Service

1. Samples

Samples are Available for Testing and Market Test.

2. Warranty of Unipower Products

Unipower provides warranty against defects in materials and workmanship for its Uninterruptible power supply, Power inverter/chargers including inverter12v 24v 48V, Solar charge controllers (“Product”).

3. Guides and After-service Consultancy

Unipower Power Team will offer these guides below.

A. Need an Accessory?

B. Products Repair?

C. Power Problems to Solve?

D. Power Protection Solutions, etc.?

24 Hours After-service consultancy just for you and to make your problems to solve easily.

4. OEM Service

OEM service of Unipower is strictly based on the ISO9001 ISO14001 quality assurance system. The TOP involves the effective teamwork of departments from Sales, R&D, and Engineering, purchasing, production & QA, assuring a high quality product and prompt delivery for customers. The standardization of our quality system and the quality stability has earned us the trust of our customers for 12 years.

We have 33 set of fully automatic SMT lines, 10 sets of automatic insertion equipments, ICT PCB testing equipments, ATE automatic testing center and aging workshop for all products. Monthly output of UPS series exceeds 200,000. We have been offering OEM service for over 12 years.
