Product Details
Place of Origin: | Guangdong, China | Brand Name: | SVC | Model Number: | SPV-150-9/SPV-150-9A |
Specification: | Mini | Application: | Home | Output Voltage (V): | 200-240VAC |
Solar Power (W): | 150 | Work Time (h): | Optional |
Product Description
20W DC / USB Output AC / Solar Panel Input LED Lighting Mini Solar System
Model: | SPV-150-9 /SPV-150-9A | |||
PV/Solar pannel PV | voltage | 18V | ||
powder | 20W | |||
PWM solar controller: | voltage | 12V | ||
current | 3A | |||
PV maximum voltage | 25V | |||
BATTERY | Type of battery | sealed maintenance free lead-acid battery | ||
QTY and Capacity of batteries | 12V/9Ah*1 | |||
Charge current | 0.35A | |||
Discharge current | 2A | |||
Float voltage | 13.5-13.8Vdc | |||
DC system | USB: | 2pcs*5V/2A | ||
DC output | 4 outlets of 12V/1.5A | |||
AC system | Rated power | 150W | ||
voltage | 115V/230VAc(1±5%) | |||
Wave form | Modified Sine Wave | |||
frequency | 50/60Hz | |||
No-load current | <0.3A | |||
characteristics of charge and discharge | Charging time | 5-7Hour | ||
Time of duration | 18-20Hour(5W LED light) | |||
PHYSICAL | ||||
Unit dimension(mm) | 190*125*150mm | |||
Net weight(Kg): | 5.8 | |||
ENVIRONMENT | Indoor or outdoor with water proof Temperature 0℃~40℃,Humidity | |||
Environment of performance: | 20%~90%,noncondensate | |||
Noise level | less than 40dB | |||
Note:the models of suffix with A are without AC system. |
Features:
1.Solar dynamoelectric systems tranfer sunlight directly to electronic power, without oil, steam, coal and other fuels. Comprehensively enphances people's life quality of the area has no electricity without any other cost.
2.Our Solar dynamoelectric systems apply 1.0MM cold plate welding shell. Nicely Appearance and surface spray treatment makes it more suitable for wild environment.
3. Application of poly cryatal (mono crystal ) solar panel, toughened glass and aluminum frame layer makes it durable and easy to carry.
4.It's a simple tyle of input and output device, convenient operation and no debugging.

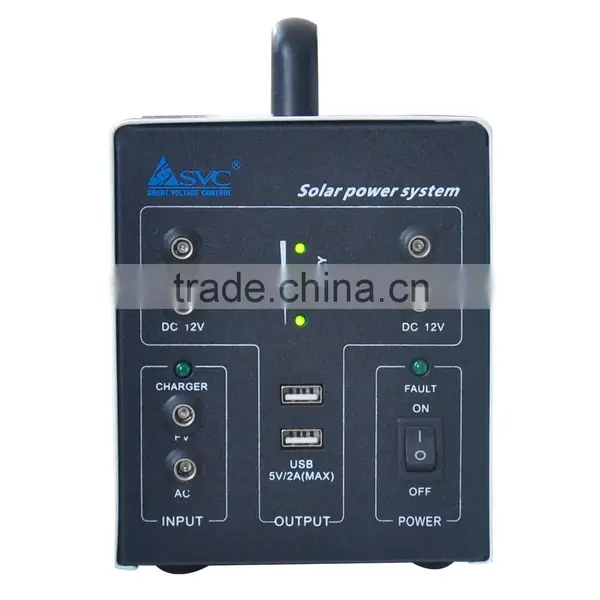

5.LED display, intuitive display status of chaiging and operation.
6.Fully protection of overcharge, like low & high voltage, high temperature, short circuit and overload etc.
7.The standard of Solar dynamoelectric systems have 4 outlets of 12V/1.5A/DC, and 12V3W LED energy saving lamp ( same brightness as 30W standard bulb, it's suitable in anyplace for illumination). LED light can be changed according to customer's requirements.
8.The special step-down circuit for USB is fully adapts to the lithium battery of mobile phone and other digital products charge.
9.There is an 115V/230V AC inverter system, Modified Sine Wave output (optional).
Field of application
Outdoor camping,home power failure, sea fishing, beekeeping, go hunting, woods guard, orchard planting, vegetable field, forest district, pastoral areas, corridor lighting, mobile phone charging etc.
