FM-3G3 Machine of Flexible Screw Auger Conveyor for lifting
Packing system Flexible Screw Conveyor is widely used in food and non-food industry.
Features:
- Worked with packaging machine for feeding variety powdery products.
- Two motors used for screw feeding and hopper vibrating, separately control.
- Products storage hopper can be separated from the screw and tube easily.
- Flexible Reversible running screw, fast dismountable screw and discharge gate insure easy cleaning.
Name |
Screw conveyor |
Model |
FM-3G3 |
Construction |
Full stainless steel |
Conveying capacity |
3cbm/h to 7cbm/h |
Diameter of pipe |
φ102mm;φ114mm;φ141mm;φ219mm |
Pipe angle |
General 45 degree,30degree,60degree |
Discharge Height |
General1800mm,and other size available |
Hopper size |
860x900x1100mm; 150L |
Power |
550W to 2.5kW |
Voltage |
3-phase, 380V, 50-60Hz |

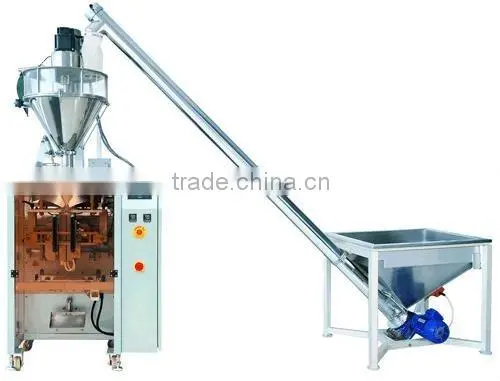

Automatic measuring screw packing system

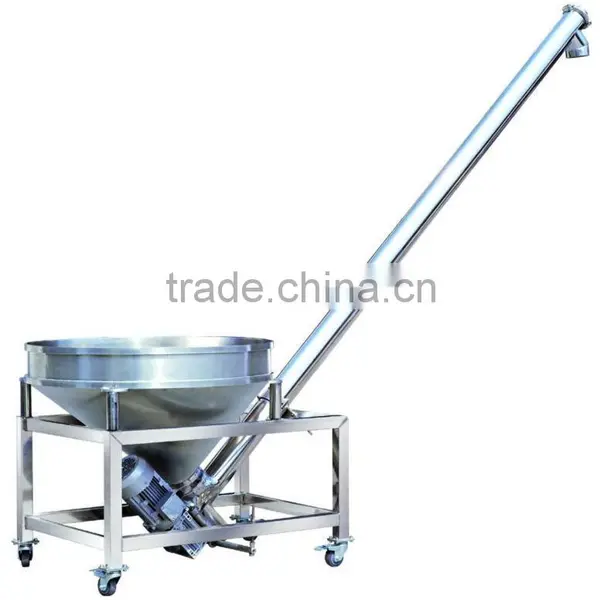

Movable round hopper auger feeding conveyor

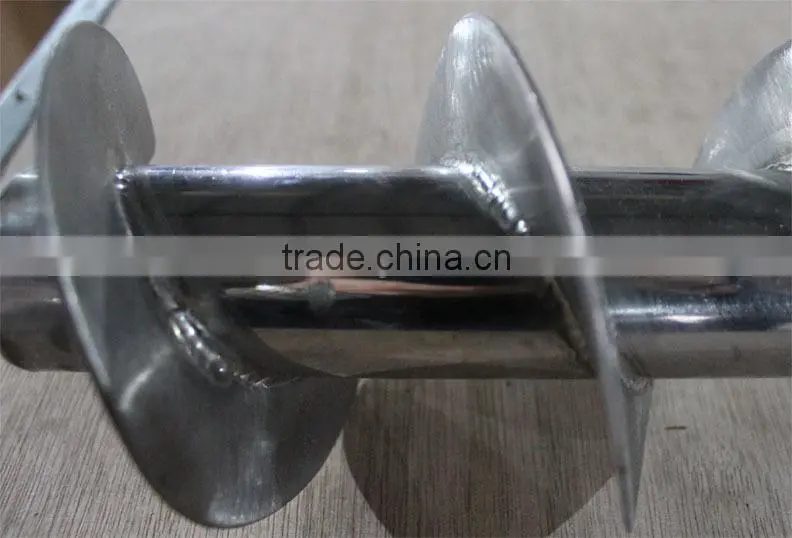

A full weld Screw Auger

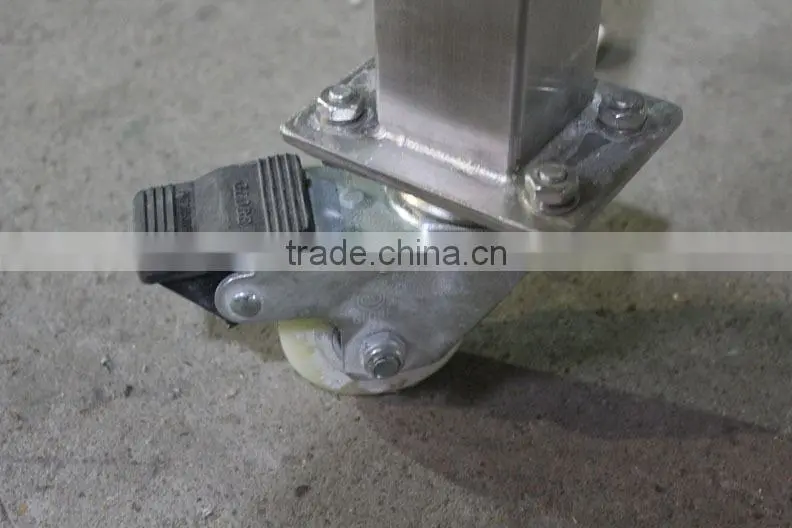

Caster with brake function, it's easy to move when need to change the position

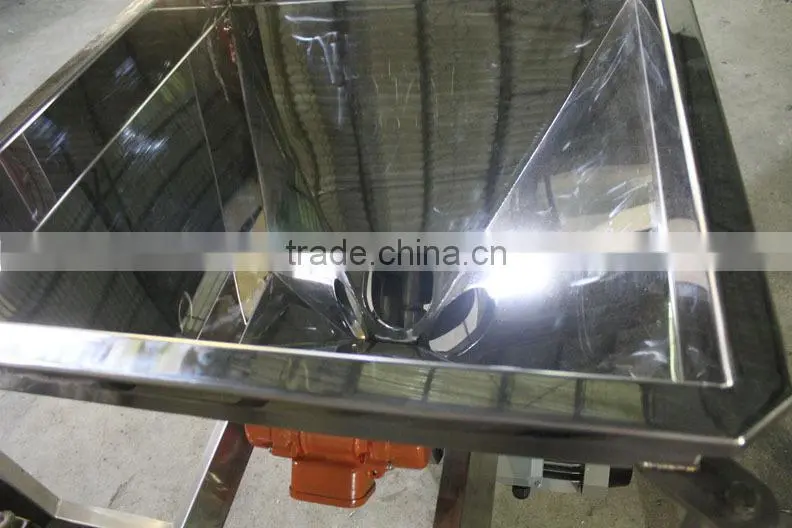

Fully Polished stainless steel, make sure the products flow fluently

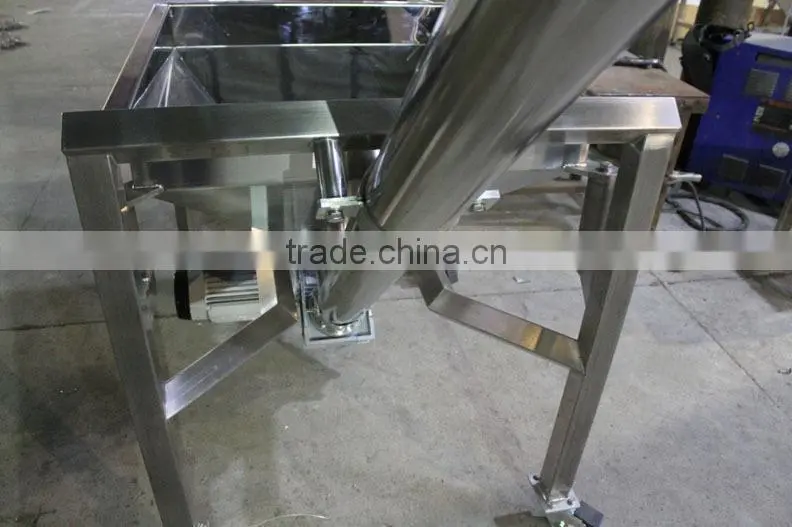

The motor is 3ph 380V, 50HZ, under the conveyor pipe, suspended by the frame of the hopper

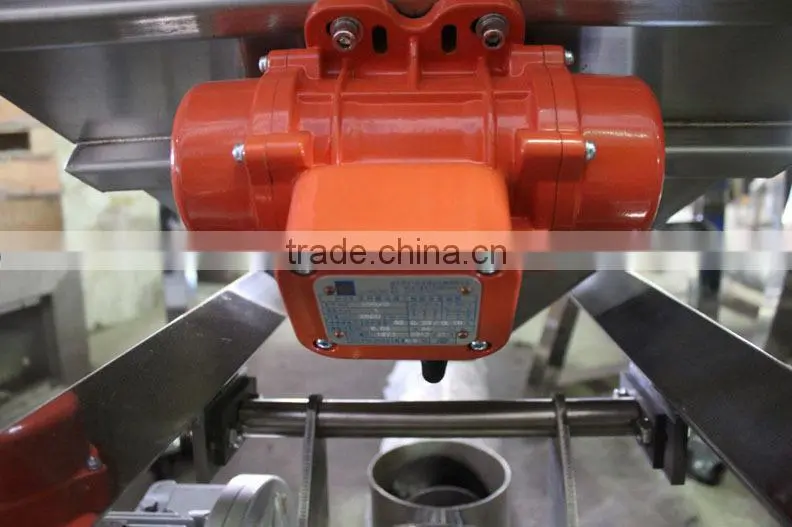

The vibrator attached in the hopper, it's vibrating when the machine in work, then the material inside can go to the bottom of the hopper easily, without man power to handle at all
Packaging Details: 1. Outside Package: standard export poly wood cases, 2, Inner Package: air bubble film
Shipping: by sea, by train or by air
Delievery Details: 20 days after confirming orders.
1, Customized Machines are Available
2, Provide Installation instruction and after-service tracing, resolving the clients' concerns
3, One year guarantee, except for some spare parts
4, Flexible payment terms and trade terms
5, Available factory visiting
6,Other related machines are provided too, such as screw weigher, packaging machine and belt conveyor, etc.
