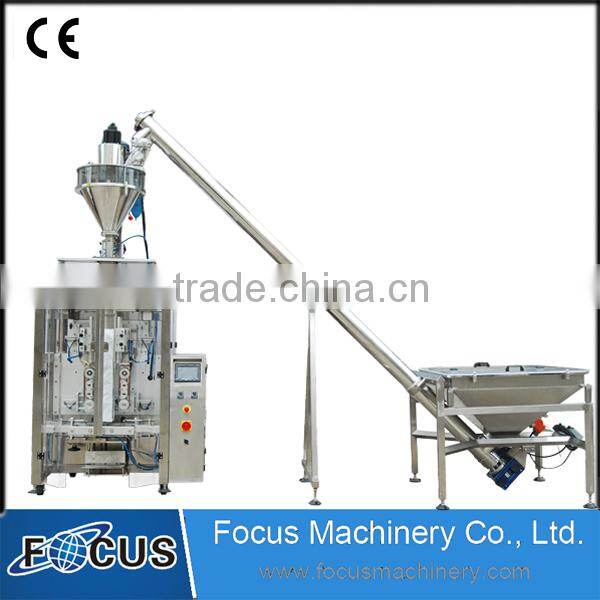

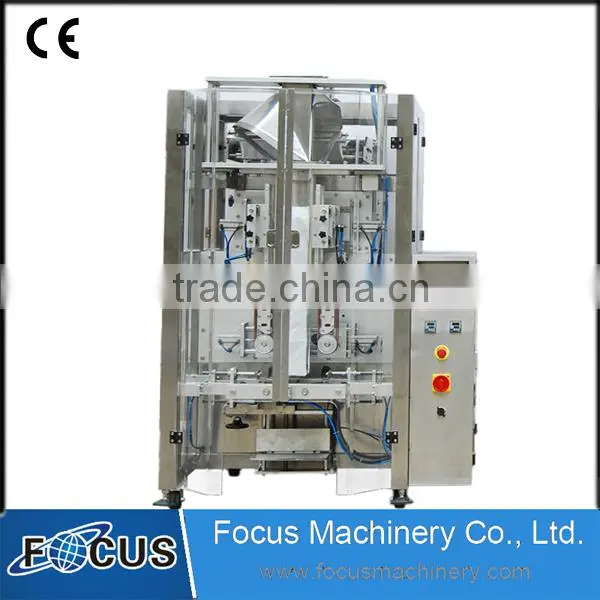

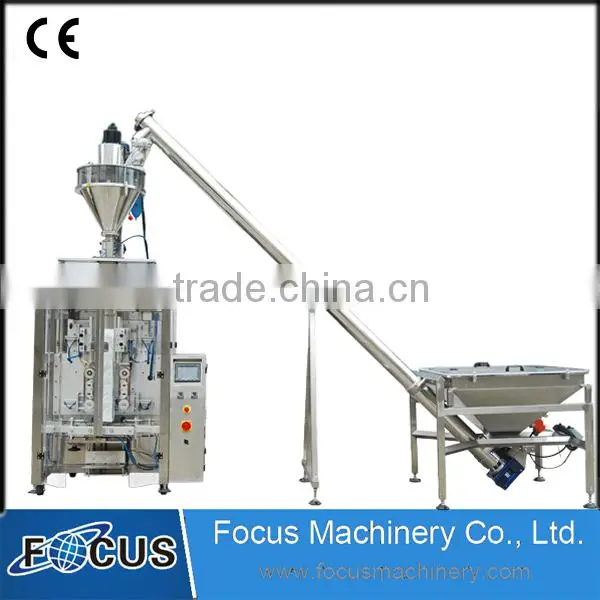

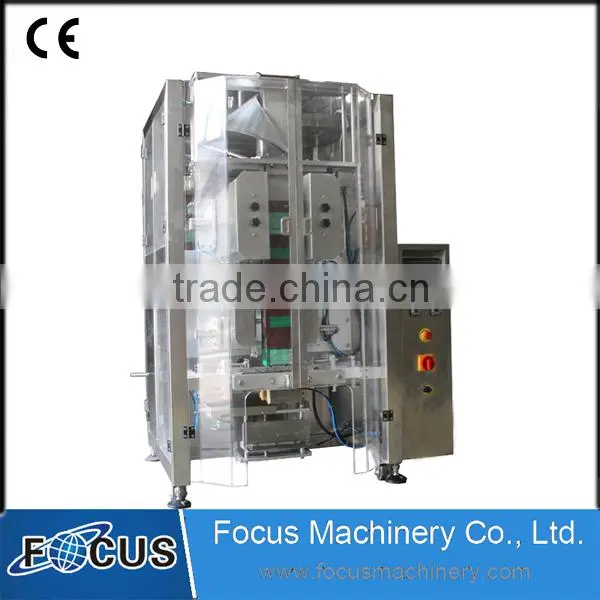

VS-520 Full automatic flour packing machine
Features
* Nice bag style:box shape quad sealed bag with four vertical seals.
* Film width of up to 500 mm.
* Film pulling down system controlled by servo motor. Semi-automatic film deviation control.
* Pneumatic system for vertical and horizontal sealing;
* Panasonic PLC, easy to operate, low maintenance, compatible with different measuring device.
* Modular engineering provides for easy component replacement.
* Open frame design provides easy access for production and maintenance personnel.
* More stable separate circuit design for pneumatic control and electrical control.
Applications
Flexible packaging with kind of box shape.

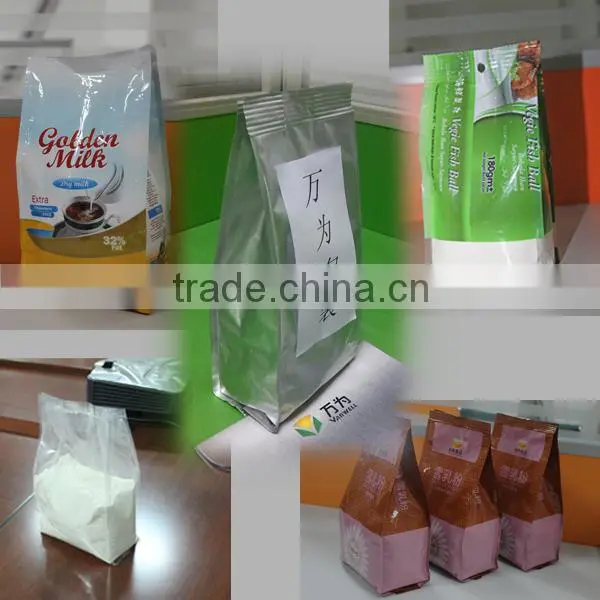

Specially designed for milk powder, coffee powder, protein powder, sugar powder etc.

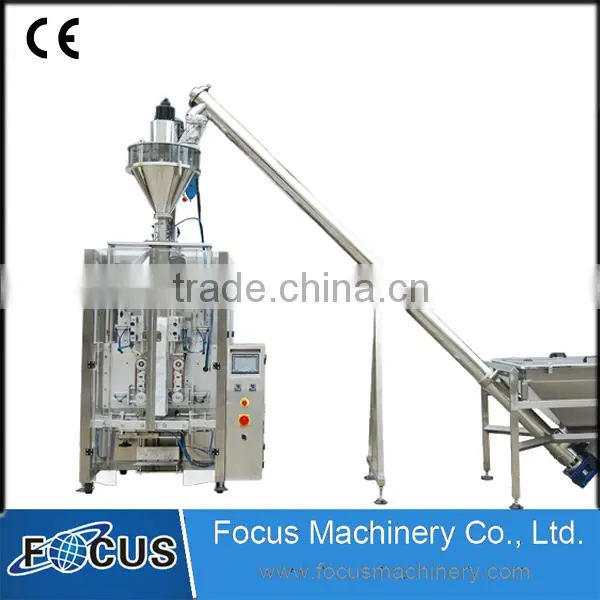

It is matched with auger filler and screw conveyor.
More Technical parameters
Model |
VS-520 packing machine |
Packing Speed |
2-40 bags/min. |
Film Width |
200-500mm |
Films |
Laminated film, OPP/CPP, OPP/CE, PET/PE etc |
Bag Length |
340-600mm |
Bag Width |
Front width: 40-240mm Side width: 30-100mm |
Edge Seal Width |
5-10mm |
Powder |
3kw,220V,50/60Hz |
Air Consumption |
0.4m3/min.,0.6MPa |
Dimension |
1620x1480x2050mm |
Gross weight |
520kg |
Bag Style |

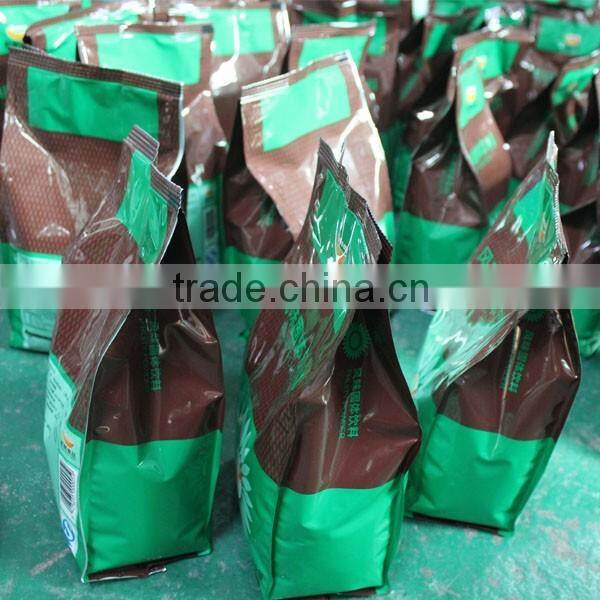

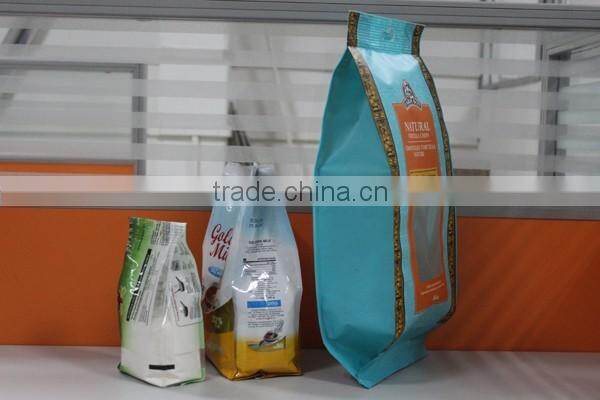

Quad seal bag(stabile bag, block bottom bag) |
Options |
Servo drives for cross seal |
Gas flush device | |
Air expeller | |
Hole punch device | |
Flip device for feeding hopper | |
Flip device for bottom hopper | |
Bag support |
