500g - 5kg Tomato Ketchup Pouch Packing Machine, Tomato Sauce Packing Machine

500g - 5kg Tomato Ketchup Pouch Packing Machine, Tomato Sauce Packing Machine photo-1
500g - 5kg Tomato Ketchup Pouch Packing Machine, Tomato Sauce Packing Machine photo-2
500g - 5kg Tomato Ketchup Pouch Packing Machine, Tomato Sauce Packing Machine photo-3
500g - 5kg Tomato Ketchup Pouch Packing Machine, Tomato Sauce Packing Machine photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Food
Packaging Type:
Bags, Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Shunde Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Food
Packaging Type Bags, Pouch
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Pneumatic
Voltage 1 phase AC220V, 50Hz
Power 2.5kw
Place of Origin Guangdong, China
Brand Name VANWELL
Model Number VIP5
Weight 600kg
Dimension(L*W*H) 1100*1500*1900
Certification CE
After-sales Service Provided Engineers available to service machinery overseas



Triangle shape pouch packing machine for paste, ketchup, sauce

Product Description



500g - 5kg tomato ketchup pouch packing machine, tomato sauce packing machine            500g - 5kg tomato ketchup pouch packing machine, tomato sauce packing machine

Features

* Bag style: pillow bag. Pack fully with little air. Triangle shape back sealed bags

* Specialized machine for liquid packing, including paste, ketchup, sauce.

* Good performance on viscous material.

* A combination with rotor pump or piston pump and weight sensor make a perfect unit which can be easily adjusted on HMI touch screen.

* Film pulling down system controlled by servo motor. Semi-automatic film deviation control.

* Photocell  registration control system accurately position the photo eye-mark.

* Hot filling with 90 °C.



Applications

* Bag style: pillow bag.

* A specialized machine for liquid packing, such as milk, soya-bean milk, water etc.

* Good performance on viscous honey, mayonnaise, ketchup etc.



500g - 5kg tomato ketchup pouch packing machine, tomato sauce packing machine500g - 5kg tomato ketchup pouch packing machine, tomato sauce packing machine



More Technical parameters



Model

VIP5

Bag style

 pillow bag

Packaging speed

 3-30 bags/min

Bag volume

 500-5000ml

Film width

230-520mm

Bag length

150-500mm

Bag width

100-250mm

Film material

Laminated film, recommended NY/PE laminated film.

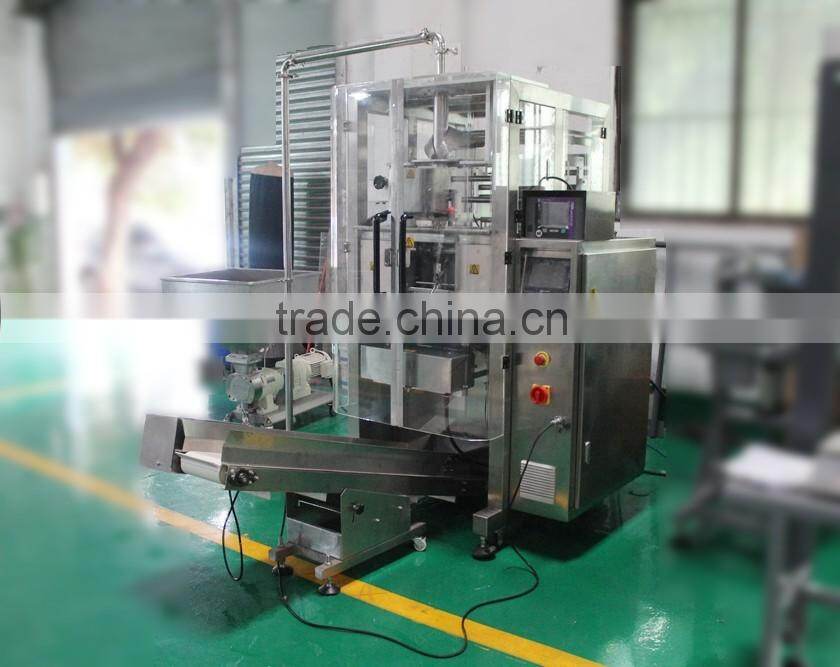

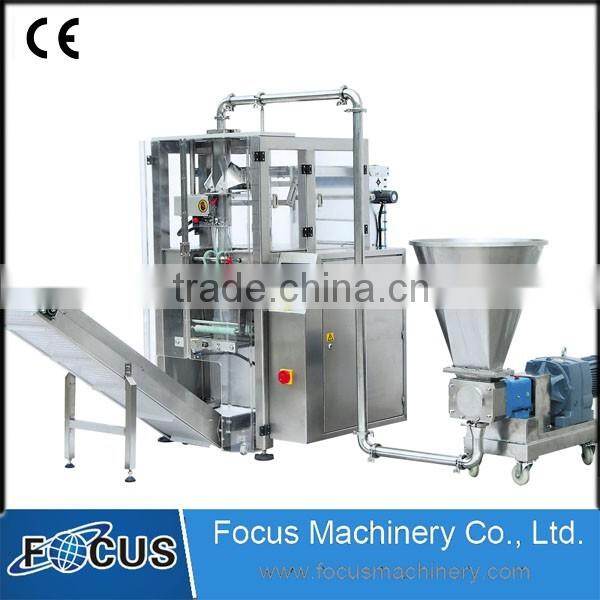

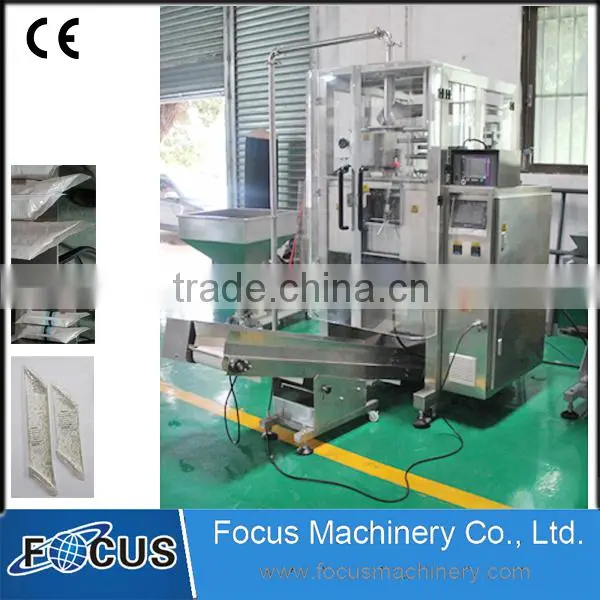

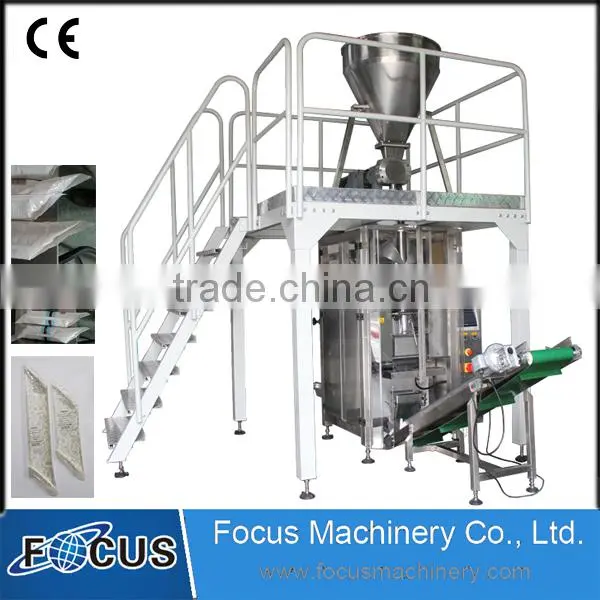

Machine pictures

500g - 5kg tomato ketchup pouch packing machine, tomato sauce packing machine

500g - 5kg tomato ketchup pouch packing machine, tomato sauce packing machine



Packaging & Shipping

 Plywood case packaging for export sale.

500g - 5kg tomato ketchup pouch packing machine, tomato sauce packing machine500g - 5kg tomato ketchup pouch packing machine, tomato sauce packing machine500g - 5kg tomato ketchup pouch packing machine, tomato sauce packing machine 500g - 5kg tomato ketchup pouch packing machine, tomato sauce packing machine





Our Services

Guarantee   The system obtains one year warranty from the date of installation, we will repair the damaged accessories ( non human damage) within the expiry date, the buyer should bear the courier fee.





Company Information

 We are a manufacturing company focus on food industries' processing and  packing solution. We are located in Shunde, Foshan City. Welcome to visit and cooperate.
500g - 5kg tomato ketchup pouch packing machine, tomato sauce packing machine500g - 5kg tomato ketchup pouch packing machine, tomato sauce packing machine

FAQ

 1. For providing exact quote, below information is needed.

What to pack?

What bag shape?

What is the bag dimension or film width?

What is the packing volume and net weight?

What kind of film material?



2. What is the delivery time?

About 25-35days for standard machines.



3.  What about installation and commissioning?

Our price does not include the Installation and commissioning charge. The buyer should pay for the round-ticket, visa charge, food and accommodation etc, and cost of labor at $80/day.



4. Any training or after sale service?

Training of machine operating and machine maintaining in our facility is free.

Technical help via internet is free.



Contact us for more details and quotes, thanks!
