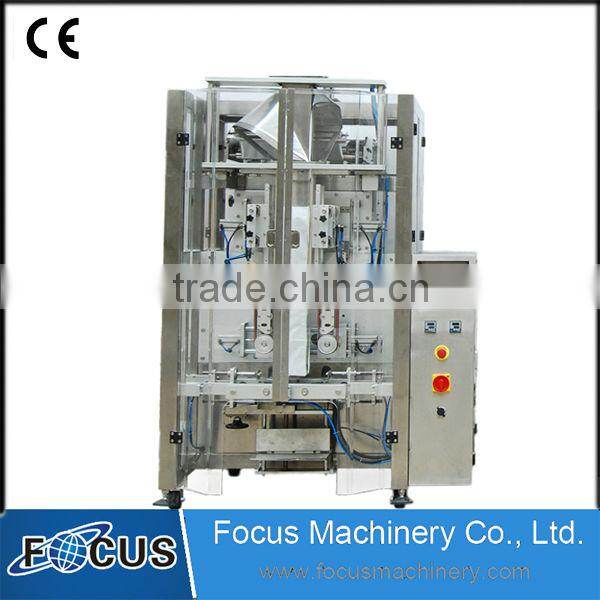

VS-520 quad seal pack cashew nut packing machine
Features
* Nice bag style:box shape quad sealed bag with four vertical seals.
* Film width of up to 500 mm.
* Film pulling down system controlled by servo motor. Semi-automatic film deviation control.
* Pneumatic system for vertical and horizontal sealing;
* Panasonic PLC, easy to operate, low maintenance, compatible with different measuring device.
* Modular engineering provides for easy component replacement.
* Open frame design provides easy access for production and maintenance personnel.
* More stable separate circuit design for pneumatic control and electrical control.
More Technical parameters
Model |
VS-520 packing machine |
Packing Speed |
2-40 bags/min. |
Film Width |
200-500mm |
Films |
Laminated film, OPP/CPP, OPP/CE, PET/PE etc |
Bag Length |
340-600mm |
Bag Width |
Front width: 40-240mm Side width: 30-100mm |
Edge Seal Width |
5-10mm |
Powder |
3kw,220V,50/60Hz |
Air Consumption |
0.4m3/min.,0.6MPa |
Dimension |
1620x1480x2050mm |
Gross weight |
520kg |
Bag Style |
Quad seal bag(stabile bag, block bottom bag) |
Options |
Servo drives for cross seal |
Gas flush device | |
Air expeller | |
Hole punch device | |
Flip device for feeding hopper | |
Flip device for bottom hopper | |
|
Bag support
|
Applications

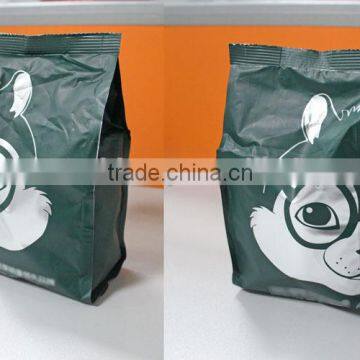

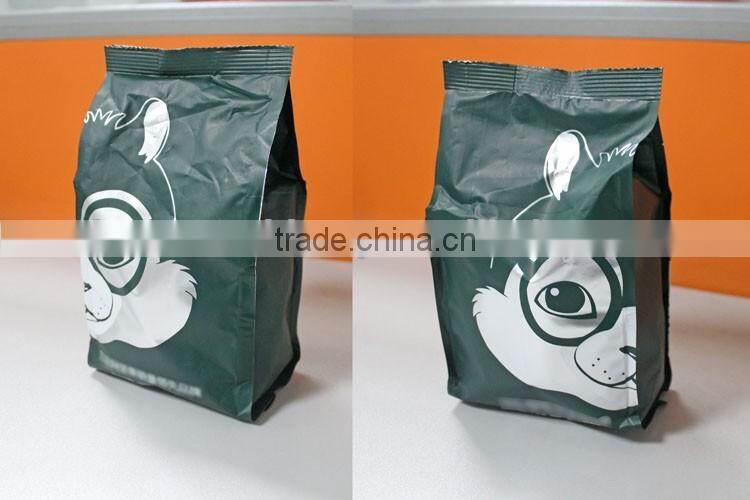

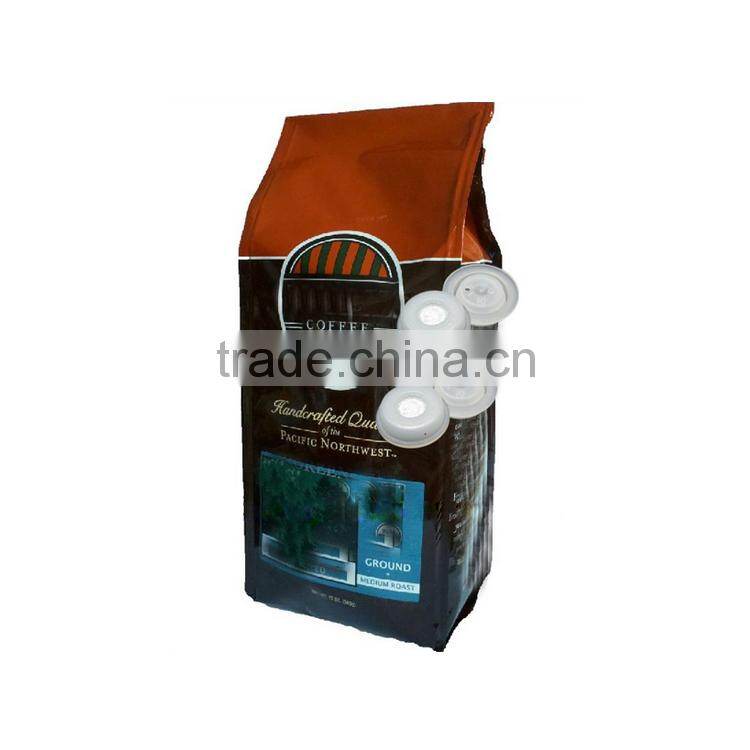

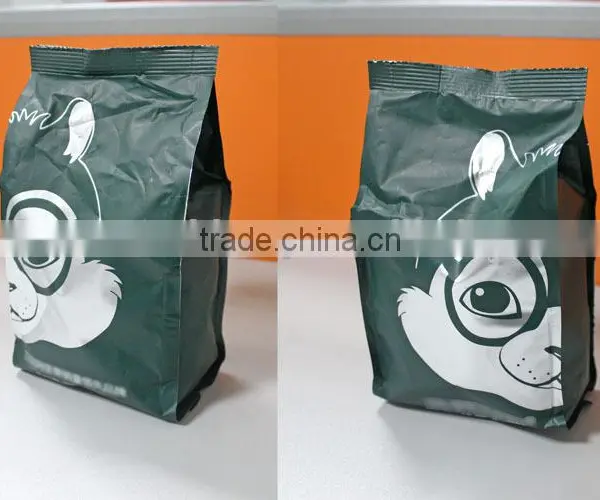

Flexible packaging with kind of box shape. Called black bottom bag, quad seal bag, stabilo pack.
Valve device available for air degassing.

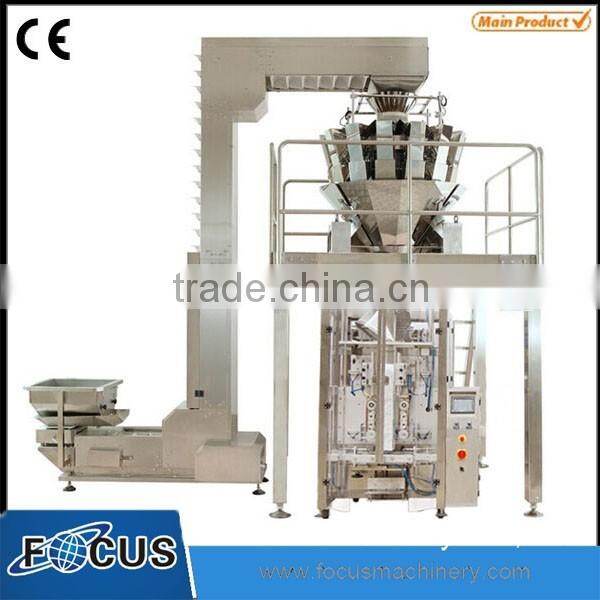

Weighing, filling and sealing packaging system for granule products
Vibratory feeder
Z type bucket elevator
Multihead weigher
Supporting platform

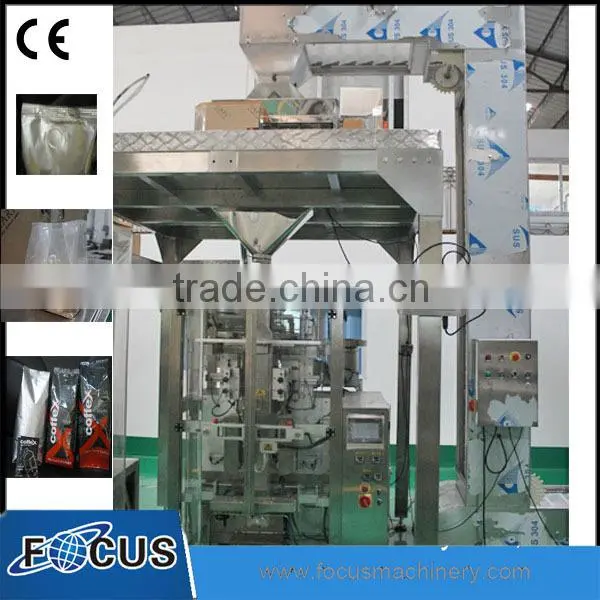

VS-520 packing machine
Finished product conveyor

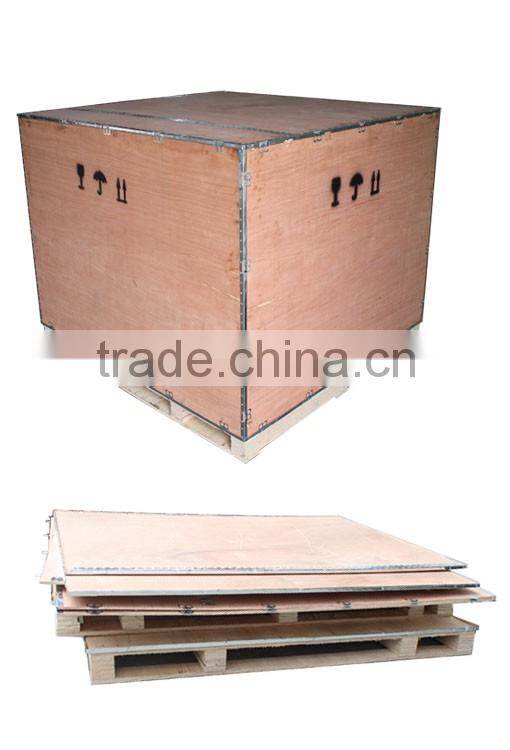

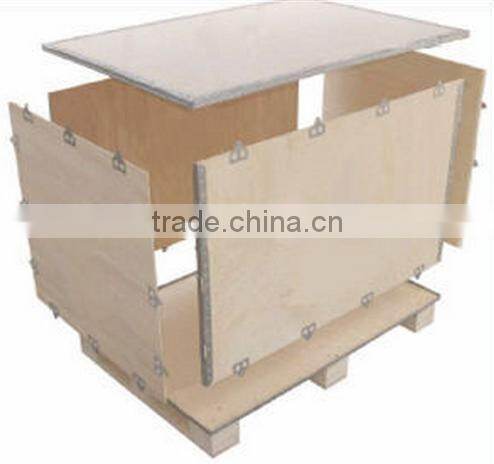

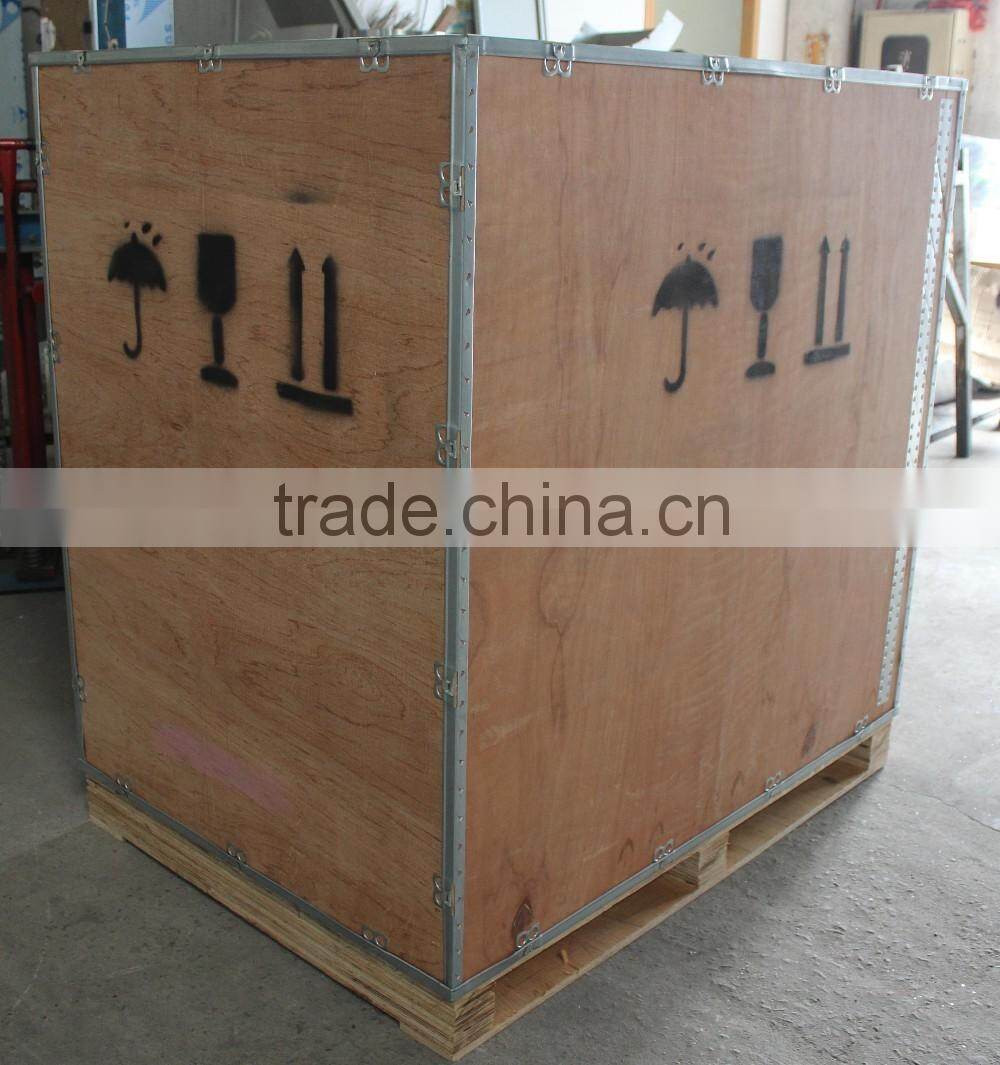

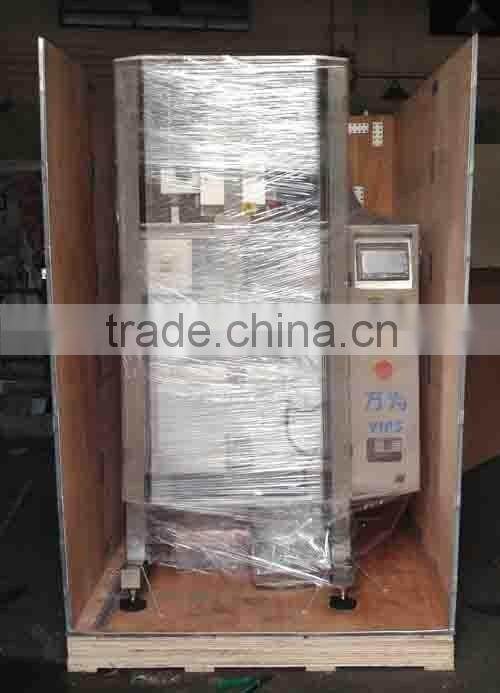

Plywood case packaging for export sale.
Guarantee The system obtains one year warranty from the date of installation, we will repair the damaged accessories ( non human damage) within the expiry date, the buyer should bear the courier fee.
We are a manufacturing company focus on food industries' processing and packing solution. We are located in Shunde, Foshan City. Welcome to visit and cooperate.
1. For providing exact quote, below information is needed.
What to pack?
What bag shape?
What is the bag dimension or film width?
What is the packing volume and net weight?
What kind of film material?
2. What is the delivery time?
About 25-35days for standard machines.
3. What about installation and commissioning?
Our price does not include the Installation and commissioning charge. The buyer should pay for the round-ticket, visa charge, food and accommodation etc, and cost of labor at $80/day.
4. Any training or after sale service?
Training of machine operating and machine maintaining in our facility is free.
Technical help via internet is free.
Contact us for more details and quotes, thanks!
