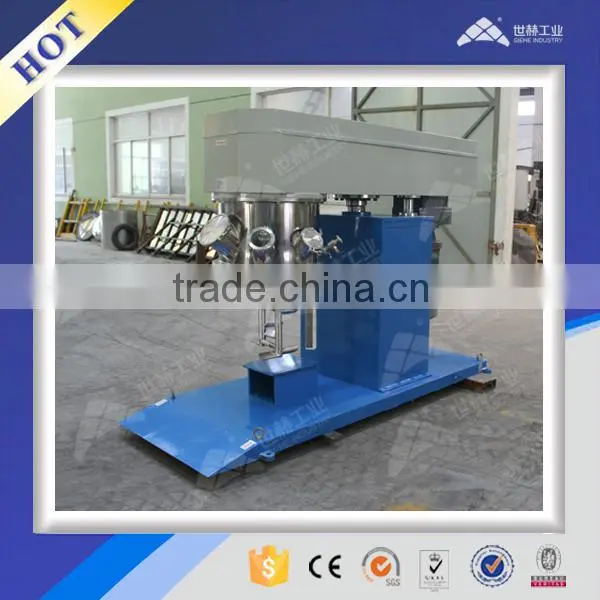

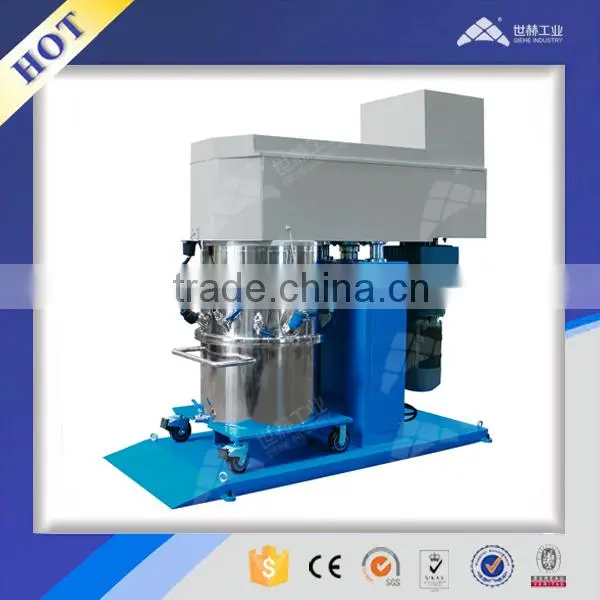

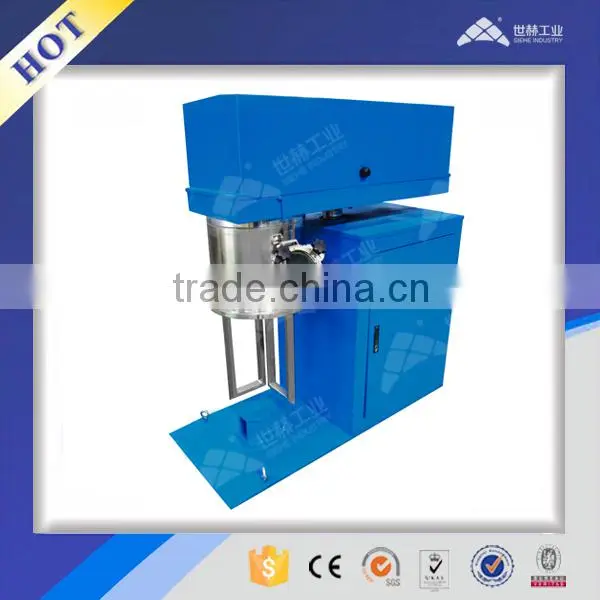

Dual pole planetary mixer :
Dual pole planetary mixer is a new mixing machine with high performance, high efficiency, easy to clean and to maintain, which
is innovated and improved based on the introduced oversea advanced technology. The Dual agitators of this equipment rotate
and at the same time revolve around the axle, the agitators are divided by the viscosity and characteristics of the material,
usually include paddle type, twist type, claw type, frame type etc., have good mixing, reacting, kneading, dissolving effect. The
mixer is equipped with a separate set of scraper to scrape the sides of the barrel and the mixing paddle can be added a scraper
as well, so that it can scrape the bottom of the barrel and avoid dead corner to ensure the stability of the product. Dual pole
planetary mixer adopts planetary gear wheel drive, there is a large output torque, suitable for high temperature, high solids,
high viscosity, and other difficult working conditions; this equipment is closed design, can be used with a vacuum system to
realize vacuum mixing, mixing bucket can be designed with a heating jacket, matching mold temperature controller, to realize
thermostatic mixing function, it’s the first choice of mixing equipment for the high-viscosity materials.
[Applicable Materials]: Various slurries with viscosity less than 3,000,000cps, solid content under 90% such as battery paste,
solder paste, ceramic paste, silicone inks, sealants, structural adhesives, soft cream, jam etc.
Model |
Working volume (L) |
Mixing power (kw) |
Revolve speed (rpm) |
Rotating speed (rpm) |
Scraper speed (rpm) |
Lifting mode |
Lift (mm) |
Hydraulic power (kw) |
Vacuum pump power (kw) |
Material |
|
SXJB-8 |
5 |
1.5 |
0-65 |
0-170 |
0-170 |
Hydraulic lift |
300 |
0.75 |
0.37 |
Material contact part SS304 |
|
SXJB-15 |
12 |
2.2 |
0-65 |
0-170 |
0-170 |
Hydraulic lift |
350 |
0.75 |
0.55 |
Material contact part SS304 |
|
SXJB-30 |
24 |
4 |
0-65 |
0-170 |
0-170 |
Hydraulic lift |
500 |
1.1 |
1.5 |
Material contact part SS304 |
|
SXJB-50 |
40 |
5.5 |
0-65 |
0-170 |
0-170 |
Hydraulic lift |
500 |
1.1 |
1.5 |
Material contact part SS304 |
|
SXJB-100 |
80 |
7.5 |
0-30 |
0-95 |
0-95 |
Hydraulic lift |
650 |
1.5 |
2.2 |
Material contact part SS304 |
|
SXJB-200 |
160 |
11 |
0-30 |
0-95 |
0-95 |
Hydraulic lift |
750 |
2.2 |
2.2 |
Material contact part SS304 |
|
SXJB-300 |
240 |
15 |
0-30 |
0-95 |
0-95 |
Hydraulic lift |
900 |
3 |
4 |
Material contact part SS304 |
|
SXJB-500 |
400 |
22 |
0-30 |
0-65 |
0-65 |
Hydraulic lift |
1000 |
4 |
4 |
Material contact part SS304 |
|
SXJB-800 |
640 |
30 |
0-30 |
0-65 |
0-65 |
Hydraulic lift |
1100 |
4 |
5.5 |
Material contact part SS304 |
|
SXJB-1000 |
800 |
37 |
0-30 |
0-65 |
0-65 |
Hydraulic lift |
1200 |
5.5 |
7.5 |
Material contact part SS304 |
|
SXJB-1200 |
960 |
45 |
0-30 |
0-65 |
0-65 |
Hydraulic lift |
1300 |
5.5 |
11 |
Material contact part SS304 |
|
SXJB-1500 |
1200 |
55 |
0-30 |
0-65 |
0-65 |
Hydraulic lift |
1400 |
7.5 |
11 |
Material contact part SS304 |
|
SXJB-2000 |
1600 |
75 |
0-30 |
0-65 |
0-65 |
Hydraulic lift |
1500 |
11 |
15 |
Material contact part SS304 |
|
Remark:
*Capacity is tested based on the materials viscosity 200,000cps; The model selection shall be based on the data such as the
materials viscosity, characteristic etc.
* If the working condition is high temperature, high pressure, flammable, explosive, corrosive or others, you must provide detailed
data for our engineer to customize specially.
* If any change in the above table, subject shall prevail without notice.
* The table cannot include all products, please contact with our sales engineers for more information.
High mixing efficiency, wide application
The Dual planetary mixer has two sets of agitators (can customize to be three sets) revolving around the container axle and at
the same time rotating at high speed, so that the materials are mixed rapidly under the action of strong shearing and kneading
force. Various agitators (blade type, twist type, claw type, frame type etc) are in option based on materials with different viscosity
and different specific gravity.
Safe and convenient operation
Adopt hydraulic cylinder as lifting actuators. Control the mixer up, stop and down through controlling the valve, simple operation
with high stability; with barrel holding device for fixing the mixing tank rapidly to prevent any possible accident due to tank
displacement. Interlock between the tank in place and machine running can be set to avoid mal-operation.
No residue on the wall, clean discharging
There is scraper on the planetary frame rotating together with the planetary frame, it clings to the container and scrape the
materials on the wall off continuously. The container inner wall is precisely lathed and then mirror polished to ensure the scraper
can scrape all materials sticking to the wall off without residue. The blades can also be equipped with scraper for scraping the
materials at bottom to ensure without mixing dead corner and excellent mixing result. Finished products with stable quality is
ensured.
Customized options
Different options are available such as explosion-proof type, closed type, heating type, with PLC intelligent control type, etc..
Material can be customized to be SS316L or special Spraying materials.
