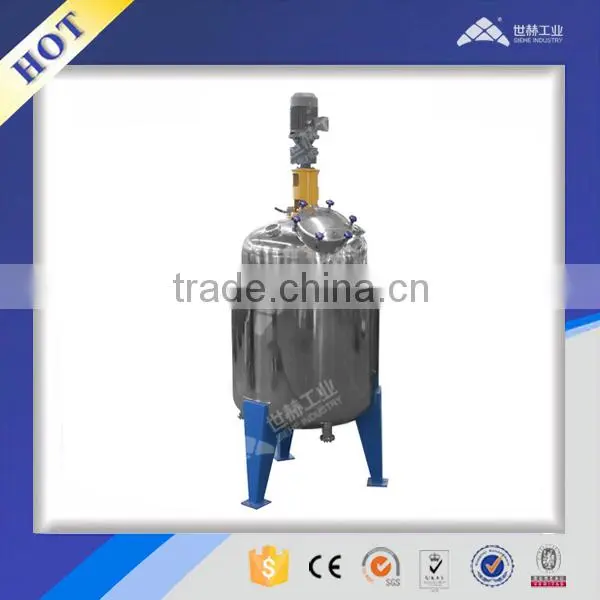

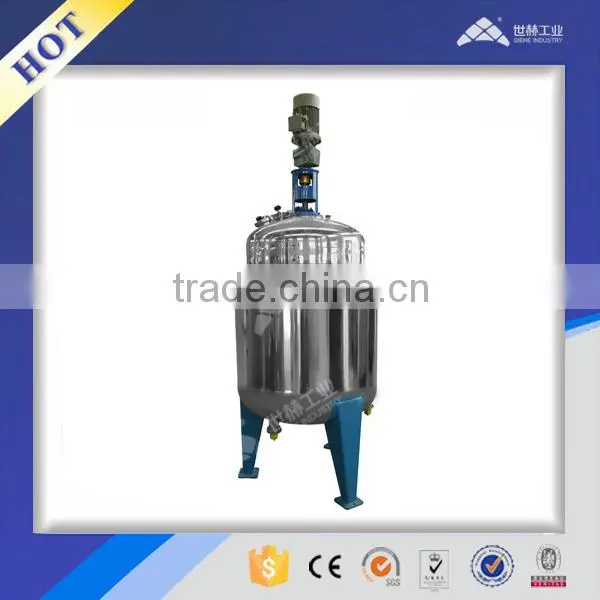

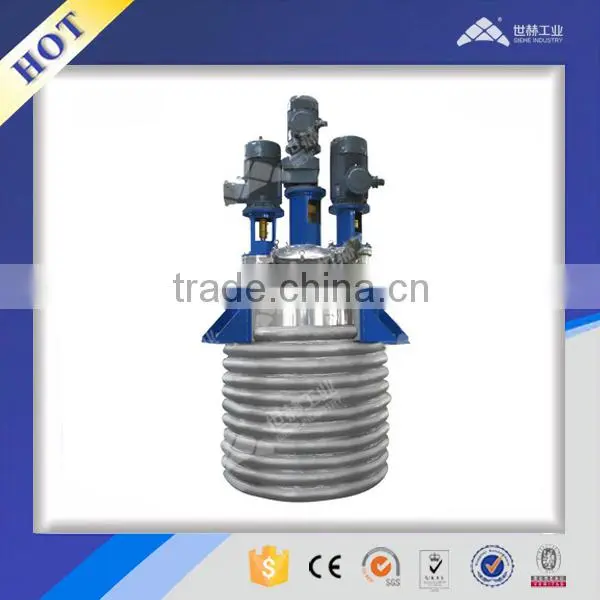

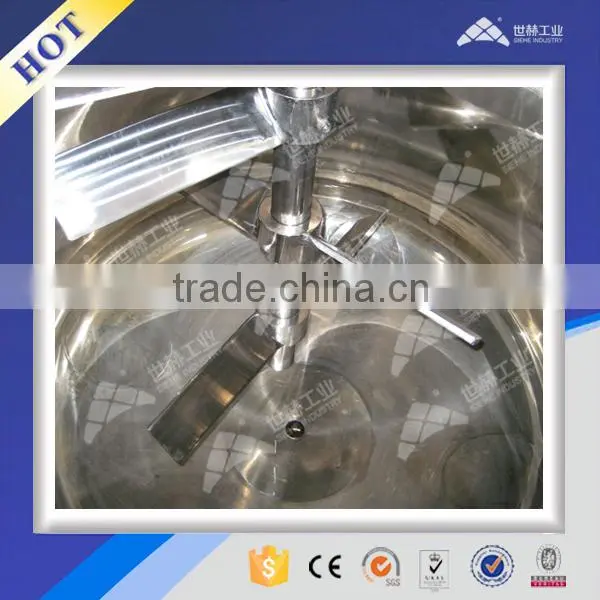

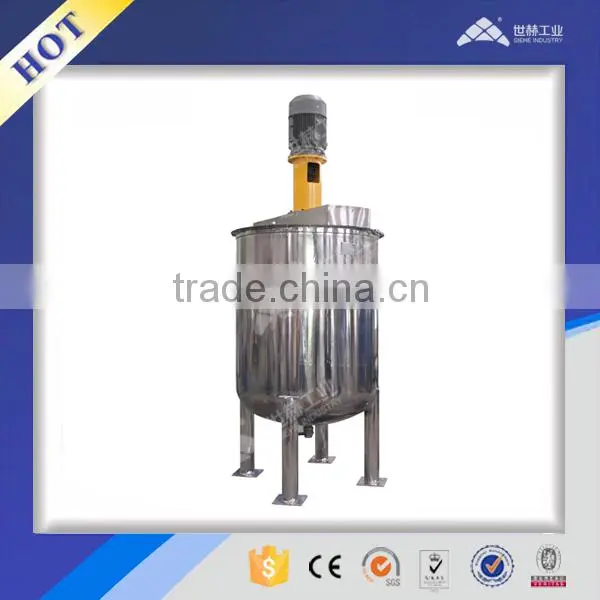

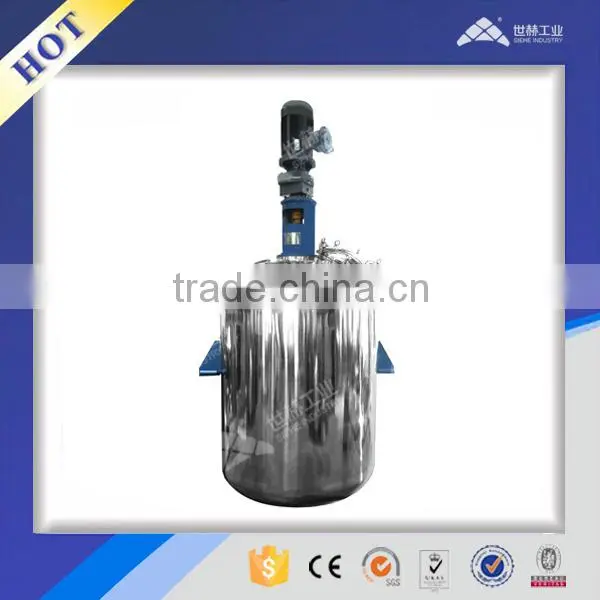

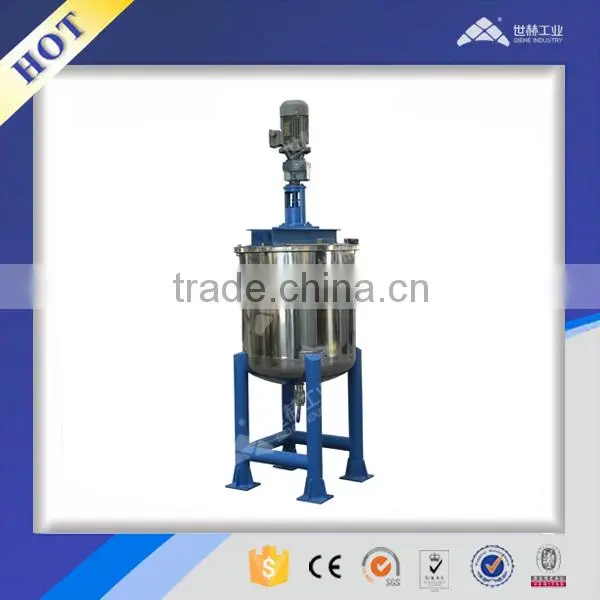

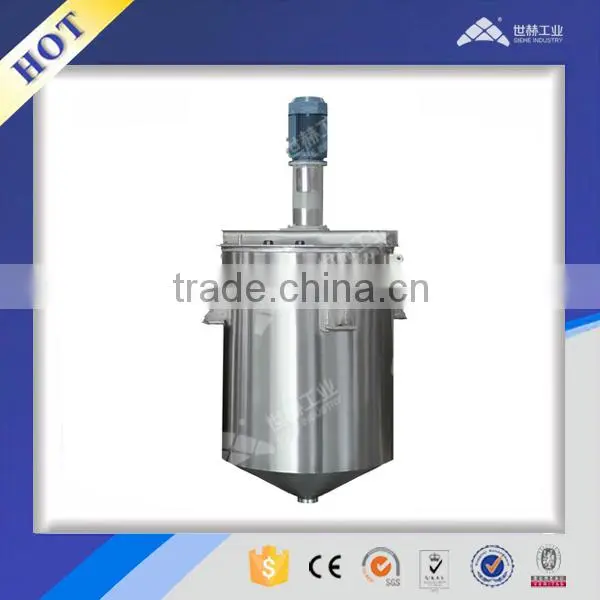

Chemical Liquid Mixer Mounted on Kettle
Chemical liquid Mixer Mounted on kettle is functioning in stirring and mixing of liquid-liquid and liquid-powder for the mass production
product, and it can be supplemented by dispersing, emulsifying, heating and cooling functions to meet the needs of different production
process. The machine can be used continuously for long period, stable operation and low noise, easy operation, strong adaptation; it
is ideal equipment for multi-function as mixing and dispersing.
[Materials Viscosity]: ≤100,000 cps
[Production Capacity]: 50-500,000L[Application Industry]: Suitable for stirring and mixing materials in industries such as biology, pharmacy, food, coating, ink, adhesive,
dyestuff, pesticide, etc..
High mixing efficiency, good product quality
SIEHE Industry has years of mixer application experience of various industries. Reasonable agitator and rotation speed will be
recommended as per the materials property and different mixing effect requirements. And the materials will carry out axial and radial
motion at same time to mix the materials thoroughly and uniformly within a short period.
Configuration of high speed dispersing and emulsifying, meeting more demands, improving the cost performance
According to the requirement, the kettle can be equipped with 1 or 2 high speed disperser or emulsifier. The highest rotation speed of
the disperser and emulsifying equipment reached to 2930rpm(regular1450rpm), the linear velocity is up to 20m/s, which quickly spread
the powder evenly to the liquid; Under the extremely high shear force, the materials uniform dispersion, thus form a good suspension
effect.
Convenient maintenance and clean
Using hexagon socket screw to fix with main shaft, the dispersing disc is convenient to disassemble and change rapidly, and easy clean.
Use screw to fix the agitator and main shaft, easy move and disassemble.
Customized options
Different options are available such as explosion-proof type, closed type, with scraper type, multi-function type, etc.. Material can be
customized to be SS321 SS316L or spraying treatment.
Model |
Motor Power (kw) |
Speed (rpm)(1) |
Mixing Form (2) |
Material (3) |
Capacity (L)(4) |
Weight (kg)(5) |
SJBF-1.1 |
1.1 |
100 |
Anchor, paddle, frame and other types of agitator. different viscosity application, difference of speed and power |
SS304SS316L Stainless Steel |
≤200 |
250 |
SJBF-1.5 |
1.5 |
85 |
SS304SS316L Stainless Steel |
≤300 |
250 |
|
SJBF-2.2 |
2.2 |
76 |
SS304SS316L Stainless Steel |
≤500 |
300 |
|
SJBF-3.0 |
3.0 |
67 |
SS304SS316L Stainless Steel |
≤800 |
350 |
|
SJBF-4.0 |
4.0 |
63 |
SS304SS316L Stainless Steel |
≤1000 |
450 |
|
SJBF-5.5 |
5.5 |
59 |
SS304SS316L Stainless Steel |
≤1500 |
350 |
|
SJBF-7.5 |
7.5 |
59 |
SS304SS316L Stainless Steel |
≤2500 |
450 |
|
SJBF-11 |
11 |
53 |
SS304SS316L Stainless Steel |
≤3000 |
350 |
|
SJBF-15 |
15 |
53 |
SS304SS316L Stainless Steel |
≤4000 |
450 |
|
SJBF-18.5 |
18.5 |
53 |
SS304SS316L Stainless Steel |
≤5000 |
350 |
|
SJBF-22 |
22 |
43rpm |
SS304SS316L Stainless Steel |
≤8000 |
450 |
|
SJBF-30 |
30 |
43rpm |
SS304SS316L Stainless Steel |
≤10000 |
350 |
|
SJBF-37 |
37 |
Customized |
Customized |
SS304SS316L Stainless Steel |
Customized |
Customized |
Remarks:
* (1)(2)(4), State, viscosity, mixing effect shall be specify to confirm the reasonable impeller choice of form,power.
* (3) is chosen based on the materials property such as its corrosiveness etc.
* (4) is date tested based on the materials viscosity 2000cps; The model selection shall be based on the data such as the materials
viscosity, density etc.
* (5)Equipment weight is not included Kettle, and it is associated with form of agitator and material viscosity.
* The table cannot include all products, please contact with our sales engineers for more information.
*The table is parameter of single shaft agitator, can be customized dual shaft or multi-functional mixing kettle according to the production
process and material characteristics, for more information, please contact with our sales engineers.
SIEHE Industry------expert on manufacturing and sales of liquid and powder equipment!
