Help CenterCoaxial Hydraulic Lifting High Speed Dispersion Mixer With Wall Scraper Suitable for High Viscosity Material
Related Products
1. Introduction

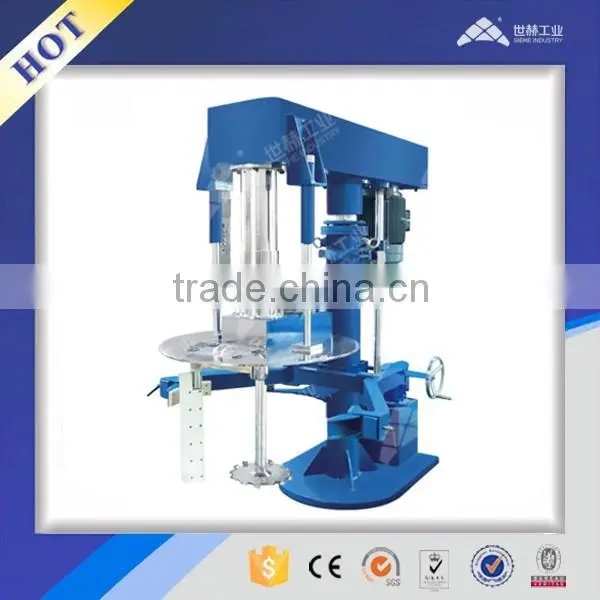

Co-axial High-speed Disperser (Hydraulic Lifting) is a product with dispersing and scraping function developed based on single-shaft disperser. During dispersing process, scraper can rotate along the tank wall and generates a radial mixing flow. In addition, the PTEF scraper can scrape the materials on the tank off efficiently. It is good for the materials with mid-and-high viscosity and thixotropy property. The finished products can be discharged completely and the tank are easy to clean.
Materials Viscosity: ≤1,000,000 cps
Production Capacity: 50-5000L
Application Industry: Prefect meet the requirement of dispersing and mixing from biology, pharmaceuticals, food, paint, ink, adhesive, pigment, pesticide etc.
Application Materials: Good for all kinds of slurries with viscosity less than 100,000cps, and solid content less than 60%, such as emulsion paint, industrial paint, water-based ink, pesticide suspension, adhesive and etc anaerobic adhesive and etc.
2. Technical Parameters
Model |
Capacity |
Motor Power |
Speed |
Disc Dia |
Lifting |
Hydraulic power |
weight |
(L) |
(kw) |
(rpm) |
(mm) |
(mm) |
(kw) |
(kg) |
|
SFSY-1.5 |
≤50 |
1.5 |
0-1450 |
150 |
600 |
0.55 |
400 |
SFSY-4 |
≤200 |
4 |
0-1450 |
200 |
800 |
0.55 |
600 |
SFSY-7.5 |
≤400 |
7.5 |
0-1450 |
230 |
900 |
0.55 |
800 |
SFSY-11 |
≤500 |
11 |
0-1450 |
250 |
900 |
0.55 |
1000 |
SFSY-15 |
≤700 |
15 |
0-1450 |
280 |
900 |
0.55 |
1100 |
SFSY-18.5 |
≤800 |
18.5 |
0-1450 |
300 |
1100 |
0.75 |
1300 |
SFSY-22 |
≤1000 |
22 |
0-1450 |
350 |
1100 |
0.75 |
1400 |
SFSY-30 |
≤1500 |
30 |
0-1450 |
400 |
1100 |
0.75 |
1500 |
SFSY-37 |
≤2000 |
37 |
0-1450 |
400 |
1600 |
1.1 |
1600 |
SFSY-45 |
≤2500 |
45 |
0-1450 |
450 |
1600 |
1.1 |
1900 |
SFSY-55 |
≤3000 |
55 |
0-1450 |
500 |
1600 |
1.1 |
2100 |
SFSY-75 |
≤4000 |
75 |
0-950 |
550 |
1800 |
2.2 |
2300 |
SFSY-90 |
≤6000 |
90 |
0-950 |
600 |
1800 |
2.2 |
2600 |
SFSY-110 |
≤8000 |
110 |
0-950 |
700 |
2100 |
3 |
3100 |
SFSY-132 |
≤10000 |
132 |
0-950 |
800 |
2300 |
3 |
3600 |
*Calculated as per water as medium
**Dependent on material viscosity
Options
Movable mixing container
Explosion proof configuration
Double layer dispersing disc
Cover system, SS304 air supported cover to prevent dust flying
Container position restriction device
Container wall moving scraper
Rotatable beam/ arm
Gauge to measure speed, pressure and temperature
PLC control
